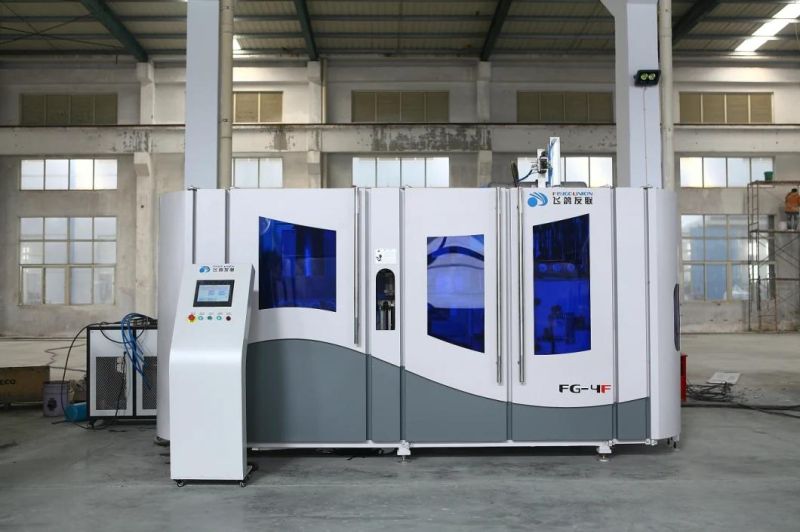

Main ParameterModelFG-4CapacityDepend on bottle design5500-7200PCS/HApplicable PreformHeight<330mmNeck20mm-25mmApplicable BottleNeck20-25mmVolumeMax. 2LiterHeightMax. 328mmDiameterMax. 105mmElectric consumptionInstall power51kwHeating oven powder46kwHeating Oven operating power26kwAir consumptionPressure4m3/min 4.0MPaCapacity4m3/min 4.0MPaMold ChillerPressure4-6BarTemperature6-13ºCFlow45L/minOven ChillerPressure4-6BarTemperature6-13ºCFlow26L/minMachine DimensionL*W*H3900*900*2500mmWeight3500kgCapacity: 5000-5500BPH(based on 1L)Max. Volume: 2 LitterTotal Size: Blowing Main machine: 3.6*1.3*2.3mSorting machine: 2*1.5*1.5m/Loader: 3*1*1.5mMain electricsPneumatic part& CylinderValveGerman Electric partPLCJapan MitsubishiServo SystemJapan PanasonicFrequency inverterJapan MitsubishiOperating systemJapan MitsubishiTouch screenJapan MitsubishiBlowingValveJapan ParkerOne-way ValveGerman Throttle ValveGerman Reducing ValveGerman DURAYNote: All the electrical components adopts CE, UL, CCC approved internationalAdvanced high-tech product

2) Energy saving: It has only 2 lamp boxes, at least 20000USD can be saved per year, electrical ammeter is equipped, you can know how much every single bottle costs you.

3) High Reliability: Machine adopts modularized design principle, the movement is integrated in 3 sets servo motor, which promises this machine will have good condition under full load operation.



II. Technical Features:
1. Servo driving and cam linking movement blowing section:
The unique cam linking system integrates mold-opening, mold-locking and bottom mold-evevating in one movement, equipped with high speed servo motor, which greatly shortens the blowing cycle and accelerates the spped.

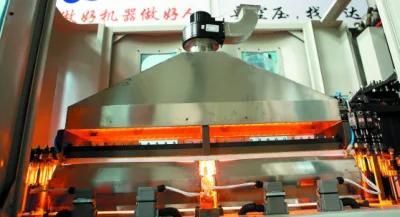

2. Minimize distance of heating heads,maximize the heating efficiency.

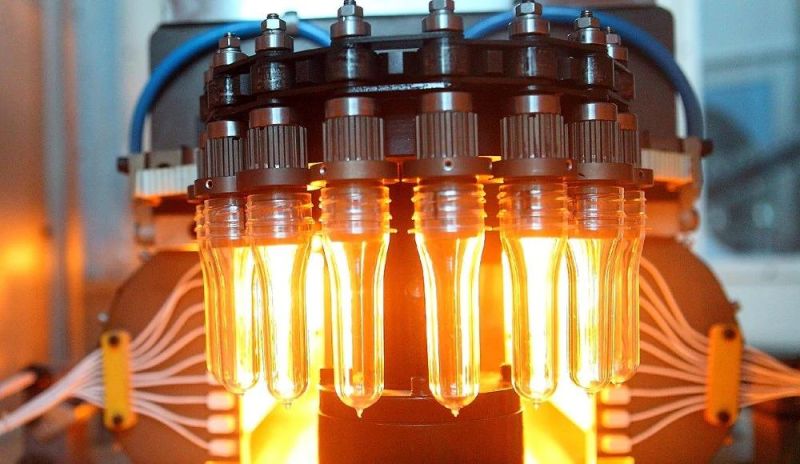

Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven it can save more than 30% consumption.Equipped with the air cycling system and redundant heating discharge system it ensures constant temperature in the heating zone.
3. Efficient and soft perform inlet system,ensure the spped and preform protction.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
4. Modularized design conception, convenient for maintenance and changing changeovers
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.


One Stop Station Services

1) Stand-by engineers team to provide overseas installation and commissioning service.

2) 1 year warranty. During warranty, we provide free of charge for repairing cost.

3)  Lifetime maintenance. After-sales department can provide life long maintenance service.
