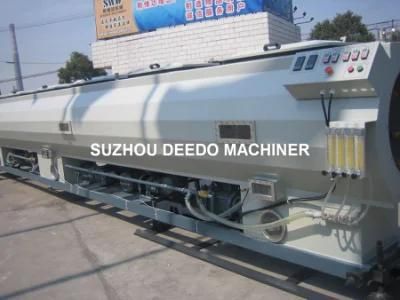

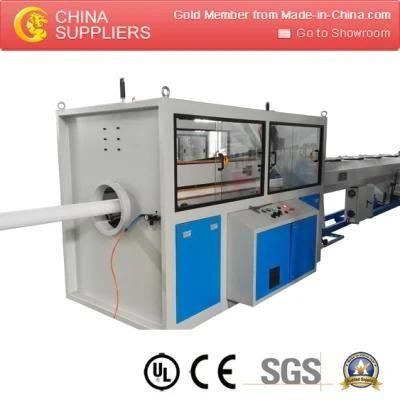

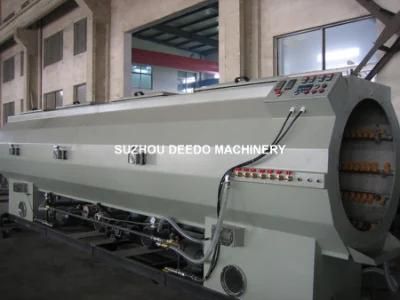

Double-cavity calibrator  1Vacuum tankDouble -cavity spray 2Length6000(1700+4300)mm 3Pipe diameterΦ315mm-630 mm
12''-24'' 4Vacuum pumps2pcsYuhuan, Shanghai5Vacuum pump power5.5+7.5KW 6Water pumps2pcsYuhuan, Shanghai7 water pump power7.5KW 8Water pump sealing ringMechanical sealing 9Front-back moving motor power1.1KW 10Front-back moving range±500mm 11Moving channel centre height980mm 12Channel specificationNo 8 light channel 13Front-back moving methodgear ,rack 14Left-right moving range±40mm 15Central height1200±50mm 16Tank materialStainless steel 17Thickness of plate5mm 18Tank  cover materialCast-aluminum 19cooling methodSpray 20cooling mediumCooling water 21Spray pipes8pcs 22NozzlesAbout 320pcs 23Nozzle specification1"× Φ4 24Water recycling  filters2pcs 25Water recycling filter specification2 26pipe carrying methodrolling wheel 27Outlet sealing plateDue to customers 28all components and structure of the tankStainless steel 29Liquid level controlling methodFloating ball +electromagnetic valve +level controller 30Water inlet11/2" 31Water outlet1" 32Dimension of the tankpolygon

If you want to get more information, please contact with me

Mob:+86-13962461986
