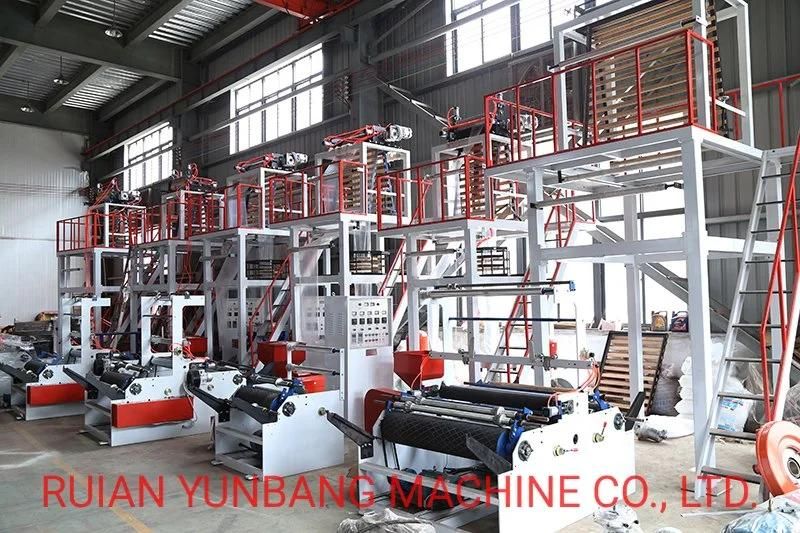

High Speed Film Extrusion Machine Film Blower
Nanyang Yukang Photonics Co., Ltd.Base Info
Description
Basic Info.
Model NO. SJ Computerized Computerized Machine Weight 1.5t Certification CE, ISO9001:2008 Screw Speed 10-100r/Min Power of Main Motor 7.5kw Max. Extrusion Output 35kg/H Max. Folding Width of Film 600mm Single-Sided Thickness of Film 0.006-0.10mm Transport Package as Require Specification CE. SGS Trademark YunBang Origin China HS Code 8477309000 Production Capacity 20 Sets/MonthProduct Description

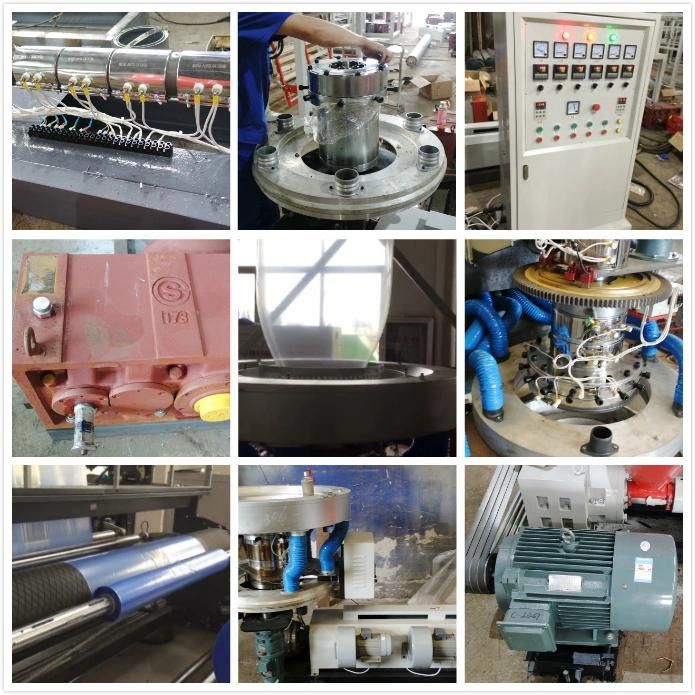

It is used for blowing the various plastic film of low density polyethylene(LDPE), high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc., which are widely used for packing industrial products, garments and food and for covering farmland.Characteristics: The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. The auxiliary machine has a platform working table for making operation easy. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
| Model | SJ-45/FM600 | SJ-55/FM800 | SJ-60/FM1000 |
| Screw Diameter | 45mm | 55mm | 60mm |
| Screw Ratio | L/D28:1 | L/D28:1 | L/D28:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor | 7.5kw | 11kw | 15kw |
| Max. Extrusion output | 35kg/h | 50kg/h | 65kg/h |
| Max. Folding Width of Film | 600mm | 800mm | 1000mm |
| Single-sided Thickness of Film | 0.006-0.10mm | 0.006-0.10mm | 0.006-0.10mm |
| Total Power | 18kw | 22kw | 28kw |
| Weight of machine | 2000kg | 2200kg | 2800kg |
| Overall Dimensions(L*W*H) | 4200mmX1800mmX3600mm | 4400mmX2000mmX4000mm | 4600mmX2300mmX4200mm |
| Model | SJ-65/FM1200 | SJ-80/FM1500 | SJ-100/FM2000 |
| Screw Diameter | 65mm | 80mm | 100mm |
| Screw Ratio | L/D28:1 | L/D28:1 | L/D28:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min |
| Power of Main Motor | 18.5kw | 30kw | 55kw |
| Max. Extrusion output | 76kg/h | 86kg/h | 160kg/h |
| Max. Folding Width of Film | 1200mm | 1500mm | 2000mm |
| Single-sided Thickness of Film | 0.006-0.30mm | 0.01-0.30mm | 0.01-0.30mm |
| Total Power | 32kw | 52kw | 80kw |
| Weight of machine | 3300kg | 4300kg | 5800kg |
| Overall Dimensions(L*W*H) | 4800mmX2500mmX4500mm | 5200mmX2800mmX5000mm | 5800mmX3300mmX6000mm |
Shipment:
