• Model NO.：GJB
• Name：Stainless Steel Ce Beverage High Pressure Yogurt J
• Material：Stainless Steel 304 ,316
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Working Life Time：More Than 10years
• Plunger：3PCS
• Packing：Plywood Box
• Homogenizer Electricity：220V,380V,415V,440V
• Certificated：CSA,Ce
• Delivery：Within 15 Days
• Motor：ABB ,Siemens ,China Brand
• Spare Parts：Available
• Ome：Yes
• After Sale Service：Yes
• Working Temperature：No Big Than 85c
• Transport Package：Standard Wooden Box
• Specification：Based on special order
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：847982009
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Name Stainless Steel Ce Beverage High Pressure Yogurt J Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Working Life Time More Than 10years Plunger 3PCS Packing Plywood Box Homogenizer Electricity 220V,380V,415V,440V Certificated CSA,Ce Delivery Within 15 Days Motor ABB ,Siemens ,China Brand Spare Parts Available Ome Yes After Sale Service Yes Working Temperature No Big Than 85c Transport Package Standard Wooden Box Specification Based on special order Trademark KAIQUAN Origin Shanghai, China HS Code 847982009 Production Capacity 100 Units/Month

Product Description

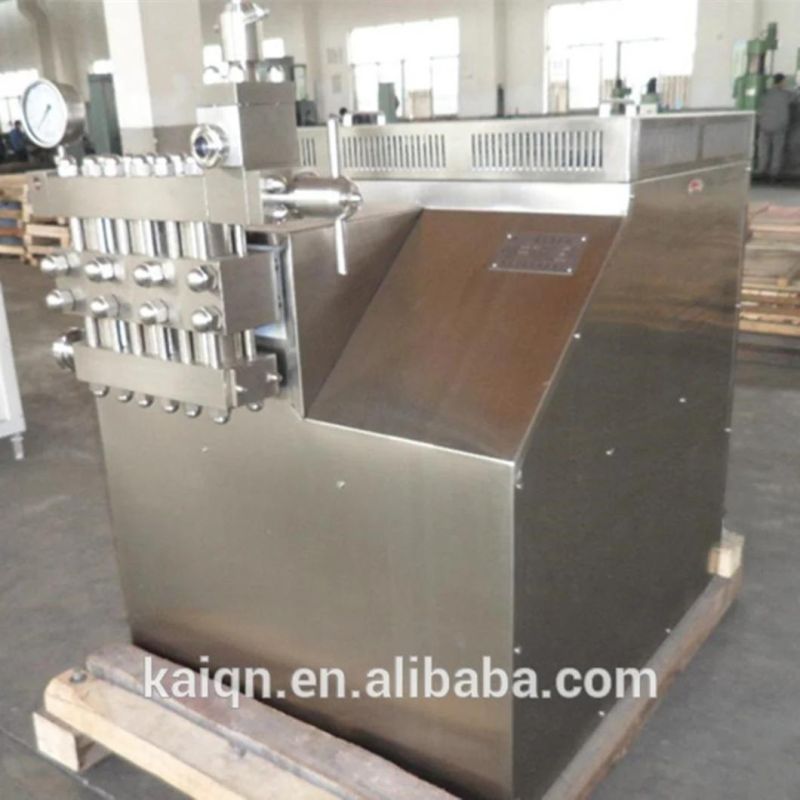

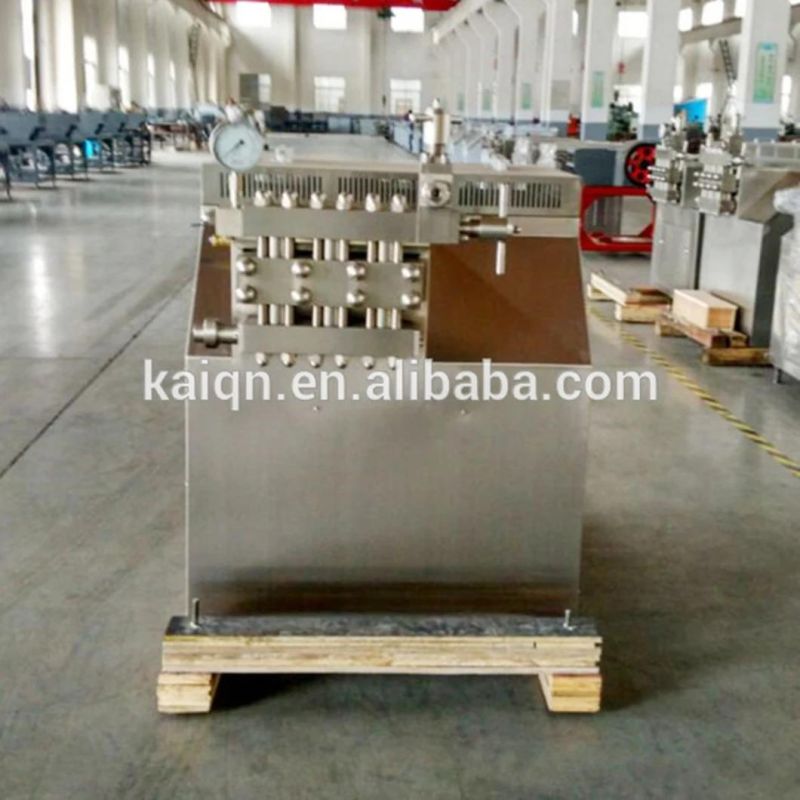

Stainless Steel CE Beverage High Pressure Yogurt Juice Milk Homogenizer






Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )Food Sanitary High Pressure Milk Homogenizer
Stainless Steel CE Beverage High Pressure Yogurt Juice Milk Homogenizer .
