Basic Info.

Model NO. PE Customized Customized Condition New Max Capacity 800kgs Installed Power 100kw Driving Motor Siemens Voltage 380-415V,50Hz Feeding vacuum　 Pump, Automatic Service All Life Service Electrical Controlling Systom PLC Transport Package Wooden Case or Other Moistureproof Packages Specification ISO9001-2000 Trademark LEADER Origin Qingdao China HS Code 8477209000 Production Capacity 100set/Year

Product Description

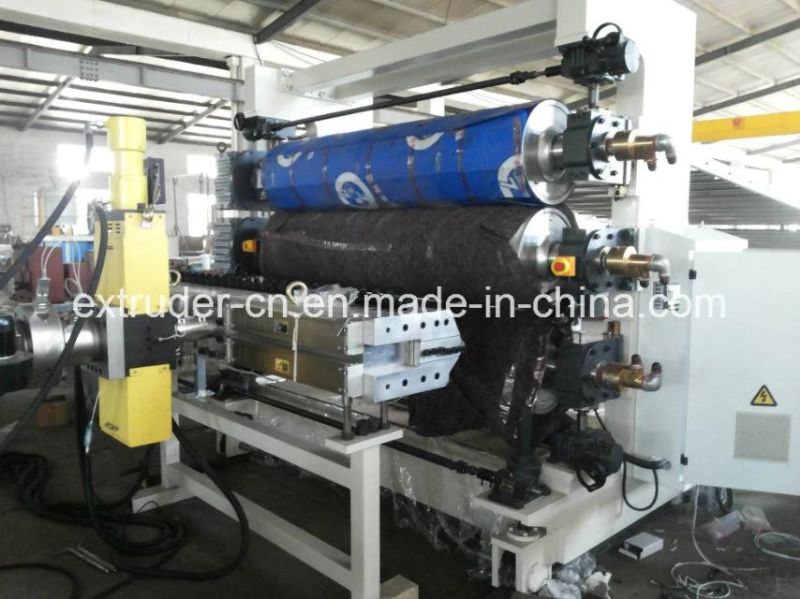

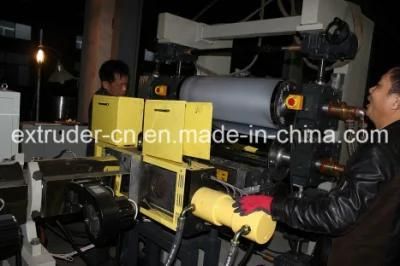

pp/pe foam car floor mat sheet making machinery

This line is specially used for producing PP/PE/PS/ABS single layer or multi-layer sheet or plate, suitable in the fields of packaging, stationery, chemicals, construction, household appliances and so on.
Main technical data:

1. Usual sheet width:
700, 900, 1020, 1200, 1300, 1400, 1500, 1700, 1800, 2100, 2200mm

2. Usual Sheet thickness
: 0.5-2mm, 1.5-10mm, 6-20mm, 3-30mm

3. Extruder: Special screw structure, imported world-known thermocontrollers, electronics, hard gear face reducers to ensure high effective material extrusion capacity.

4. T -type die head:
Suitable compression ratio to ensure uniform flow stability.

5. Three-roller calendar:
According to the material properties, adopting vertical three-roller, oblique three-roller, horizontal three-roller calendar. Internal roller temperature control using a unique flow channel, so that the stability of uniform distribution roller. The independent oil temperature control for three roller to ensure more stable and exact control.

6. Cooling frame: According to product specifications, configurations with different specifications of the stainless steel cooling roller

7. Edge-cutting devices: Trimming can be divided into manual and automatic, three-dimensional configuration tool adjustment device, width adjustable.

8. Cut off machine: Saw cutting or knife cutting, thin type and non-friable type sheet generally usually knife cut, adopted high-quality alloy cutting tools, sharp and durable.
