• Model NO.：CTSA
• Customized：Customized
• Transport Package：Carton, Pallet
• Specification：105-400mm
• Trademark：Corediam
• Origin：China
• HS Code：82023910
• Production Capacity：1000PCS,Day

Basic Info.

Model NO. CTSA Customized Customized Transport Package Carton, Pallet Specification 105-400mm Trademark Corediam Origin China HS Code 82023910 Production Capacity 1000PCS/Day

Product Description

1. Product Introduction

This type of blade is sinter hot-pressed. The diamond saw blade is universal wet cutting blades, designed for professionally cutting and nondestructive grooving on ceramic, tile, porcelain, and you also can use it for cutting marble and granite. It can provide very fast, precise, smooth cutting with minimum chipping. Tile saw blades can be installed on Angle Grinder, Circular Saw, Tile Saw equipment. The tile will have a very clear edge during the cutting job. The quality level is premium.



2. Features of Concrete diamond saw blade

1). sinter hot-pressing technology.
2). Wet Use.
3). Maximizing the value with good performance.
4). Smooth cutting, no chipping
5). Long cutting life



3. Specification


Item No.	Diameter	Segment Height	Segment Width	Arbor
CTSA105	105mm	7/10mm	1.7mm	22.23mm
CTSA115	115mm	7/10mm	1.7mm	22.23mm
CTSA125	125mm	7/10mm	1.7mm	22.23mm
CTSA150	150mm	7/10mm	1.7mm	22.23mm
CTSA180	180mm	7/10mm	1.7mm	22.23mm
CTSA200	200mm	7/10mm	1.7mm	22.23mm
CTSA230	230mm	7/10mm	1.7mm	22.23mm
CTSA250	250mm	7/10mm	1.7mm	22.23mm
CTSA300	300mm	7/10mm	2.2mm	25.4/50/60mm
CTSA350	350mm	7/10mm	2.4mm	25.4/50/60mm
CTSA400	400mm	7/10mm	2.6mm	25.4/50/60mm

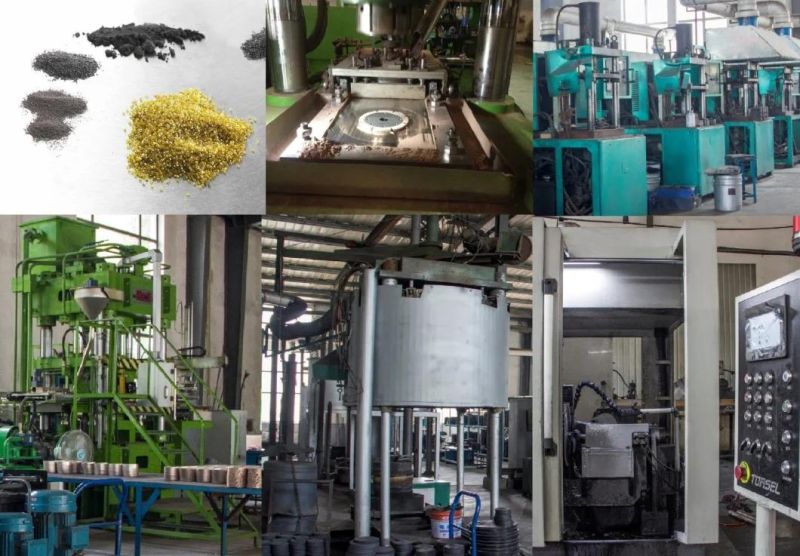

4. Production process

Raw material→ powder mixing→steel core→cold press→sintering→surface treatment→packaging→dispatch



5. Delivery time

For sample test, we can finish preparation within 2 weeks
Our leading time will be about 2-3 weeks for the batch order.

6. Corediam Introduction

Corediam Tools Co., Ltd., as a high-tech enterprise, concentrates on researching & developing manufacturing and marketing diamond tools industry. We have the most extensive, innovative and powerful range of diamond tools for construction, stone and DIY markets. Corediam strives to be the leading professional supplier in the world through technology innovation.
