• Model NO.：KQ-500L, KQ-1000L
• Name：Vegetable Rice Meat Jam Sauce Syrup Melting Jacket
• Heating：Heating and Mixing
• Capacity：300L ,500L, 600L, 1000L
• Mixer：Scrapper Mixer, Normal Mixer
• Material：Stainless Steel 304 ,316
• Temperature：Above 90degree
• Kettle Type：Vertical ,Tilting
• Heating Source：Electricity, Steam ,Gas
• Wall：Double Wall Kettle
• Applications：Rice, Soup, Meat, Pharmacy, Jam Cooking
• Working Life：10 Years or More
• Transport Package：Standard Export Wooden Box
• Specification：ISO
• Trademark：KQ
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：2000set ,Year

Basic Info.

Model NO. KQ-500L, KQ-1000L Name Vegetable Rice Meat Jam Sauce Syrup Melting Jacket Heating Heating and Mixing Capacity 300L ,500L, 600L, 1000L Mixer Scrapper Mixer, Normal Mixer Material Stainless Steel 304 /316 Temperature Above 90degree Kettle Type Vertical /Tilting Heating Source Electricity, Steam ,Gas Wall Double Wall Kettle Applications Rice, Soup, Meat, Pharmacy, Jam Cooking Working Life 10 Years or More Transport Package Standard Export Wooden Box Specification ISO Trademark KQ Origin Shanghai, China HS Code 8479820090 Production Capacity 2000set /Year

Product Description

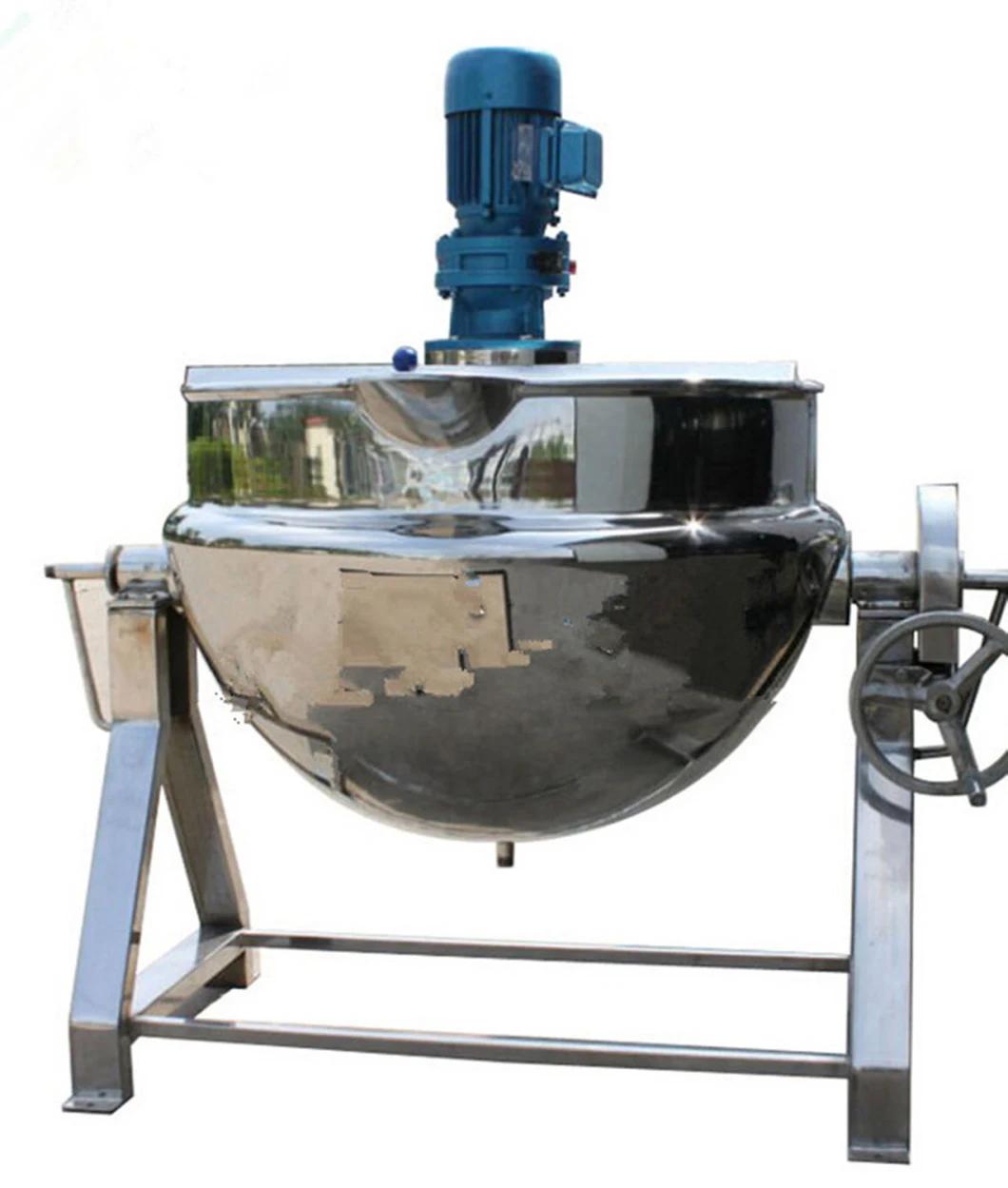

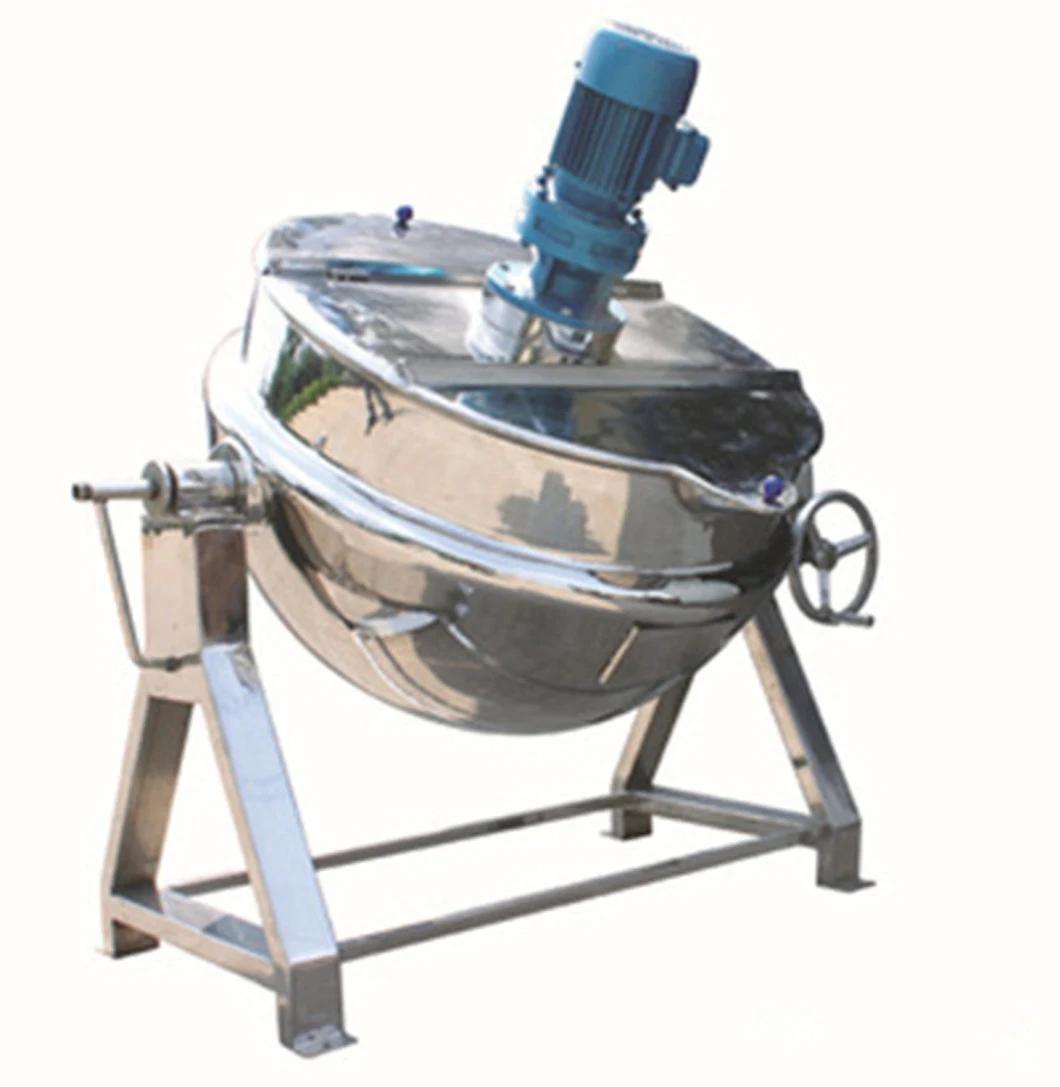

Vegetable Rice Meat Jam Sauce Syrup Melting Jacketed Cooking Cooker
Sanitary stainless steel jacketed kettle(steam/electrical heating)
Material: SS304/316

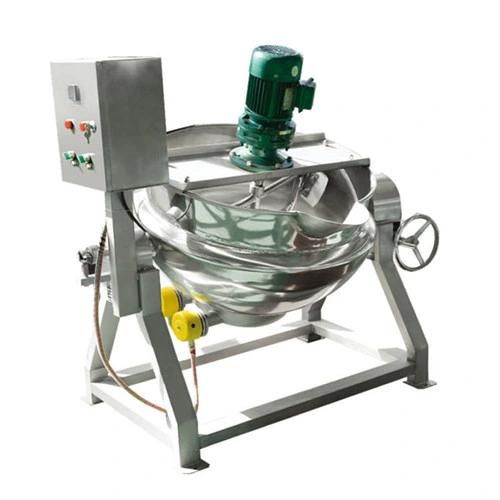

 600 L Electric Heating Jacketed kettles

Stainless steel double-layered boiler/kettle ,used for heating, pasteurizing, cooking, mixing juice, sauce, fruit jam and processing meat, food, Candy, pharmacy, dairy , liquor, cake, drink, candied fruit, etc


Material: SS304
Heating by Electricity
* Type: with Jacketed wall
* Internal shell thickness: 3 or 4 mm, SS304
* Jacket thickness: 3 or 4mm, SS304
Capacity: 300L~1000L
Application

Vertical steam jacketed kettle also named Steam boiler, it's widely used for Candy, pharmacy, dairy, liquor, cake, drink, candied fruit, can etc. Food processing, may be used for large-scale dining hall for cooking a soup, cooking the dish, the fricassee, cooking gruel and so on, it's good equipment for food processing which can improve quality, shortens the time, improves work conditions.

TankCapacity(L)	200	300	400	500
REV	36r/min, 0.55KW, 380V, 50HZ,  3PHAZE	36r/min, 0.55KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE	36r/min, 0.75KW, 380V, 50HZ, 3PHAZE
Heating Area(M2)	1.0	1.4	2.0	2.0
Vertical Product Dimension(CM)	100*90*155	110*100*160	120*130*165	120*130*165
Material	SS304	SS304	SS304	SS304
WEIGHT GW/NW(KGS)	100	120	180	180
Package	Wooden box	Wooden box	Wooden box	Wooden box

Vegetable Rice Meat Jam Sauce Syrup Melting Jacketed Cooking Cooker
