Automatic Peanut Butter Grinding Machine / Peanut Butter Production Line
Anhui Decheng Paper Co., Ltd.- After-sales Service:Field support , online support
- Warranty:2 years
- Processing Material:Special Agricultural Products, Peanut Butter Production Line
- Application:Ice Cream, Snack foods
- Customized:Customized
- Certification:CE, SGS TUV
Base Info
- Model NO.:Production Line
- Power Source:Electric
- Automatic Grade:Automatic
- color:sliver
- key word:Peanut Butter Production Line
- Transport Package:Fumigation-Free Wooden Case
- Specification:Peanut Butter Production Line
- Trademark:HENTO
- Origin:Henan, China
- Production Capacity:on The Specification
Description
Basic Info.
Model NO. Production Line Power Source Electric Automatic Grade Automatic color sliver key word Peanut Butter Production Line Transport Package Fumigation-Free Wooden Case Specification Peanut Butter Production Line Trademark HENTO Origin Henan, China Production Capacity on The SpecificationProduct Description
Latest Design Peanut Butter Production Line Machine1.Production Description:This Peanut butter production line has high efficiency that can save a lot of labor and time.Peanut butter production line is an automatic independent production equipment to produce peanut butter.This production line can be applied to peanut butter,sesame butter,almond butter and so on.
2.Technical Parameter:
No | Machines | Power(kw) | Dimension(mm) | Quantity | Remarks |
1 | Roasting Machine | 70.8 | 3000*2900*1750 | 1 | / |
2 | Conveyor belt | 0.75 | 4700*700*1500 | 1 | / |
3 | Cooling Belt | 5.9 | 7000*1250*1600 | 1 | / |
4 | Peeling Machine | 1.5 | 1100*500*1200 | 1 | / |
5 | Conveyer belt | 0.75 | 6000*700*1000 | 1 | / |
6 | Hoister | 0.75 | 1000*500*3400 | 1 | / |
7 | Feeding machine | 0.55 | 1100*1100*2400 | 1 | / |
8 | Grinding machine | 11 | 800*350*900 | 2 | / |
9 | Table | / | 1000*1000*500 | 1 | / |
10 | Storage tank | / | 300L | 1 | / |
11 | Pump | 1.5 | 1000*300*350 | 1 | / |
12 | Mix tank | 3 | 400L | 1 | / |
13 | Vacuum tank | 5.2 | 400L | 1 | Include vacuum pump,buffer tank |
14 | Paste pump | 1.5 | 1000*300*350 | 1 | / |
15 | Storage tank | 1.5 | 400L | 1 | / |
16 | Control cabinet | / | / | 2 | / |
17 | Pipe | / | / | / | / |
We also have other capacity for 100kg/h, 200kg/h and so on.
No | Machines | Power | Dimension |
1 | Roaster | 23.6kw | 2900*1500*175mm |
2 | Cooling belt | 4.5kw | 6000*1250*1600mm |
3 | Peeler | 0.74kw | 1100*350*1200mm |
4 | Conveyor belt | 0.75kw | 6000*700*1000mm |
5 | Elevator | 0.75kw | 1000*500*3400mm |
6 | Feeding machine | 0.55kw | 1100*1100*2400mm |
7 | Butter machine | 11kw | 800*300*800mm |
8 | Table | / | 1000*1000*500mm |
9 | Tank | / | 100L |
10 | Pump | 1.5kw | 1000*300*350mm |
11 | Mix tank | 1.5kw | 200L |
12 | Vacuum tank | 3kw | 200L |
13 | Pump | 1.5kw | 1000*300*350mm |
14 | Store tank | 1.1kw | 200L |
15 | Control Cabinet | / | / |
16 | Pipe | / | / |
No | Machines | Power(kw) | Dimension(mm) | Quantity | Remarks |
1 | Roasting Machine | 47.2 | 2900*2100*1750 | 1 | / |
2 | Conveyor belt | 0.75 | 3800*700*1500 | 1 | / |
3 | Cooling Belt | 4.5 | 6000*1250*1600 | 1 | / |
4 | Peeling Machine | 0.74 | 1100*350*1200 | 1 | / |
5 | Conveyer belt | 0.75 | 6000*700*1000 | 1 | / |
6 | Hoister | 0.75 | 1000*500*3400 | 1 | / |
7 | Feeding machine | 0.55 | 1100*1100*2400 | 1 | / |
8 | Grinding machine | 11 | 800*350*900 | 2 | / |
9 | Table | / | 1000*1000*500 | 1 | / |
10 | Storage tank | / | 200L | 1 | / |
11 | Pump | 1.5 | 1000*300*350 | 1 | / |
12 | Mix tank | 2.2 | 300L | 1 | / |
13 | Vacuum tank | 3.7 | 300L | 1 | Include vacuum pump,buffer tank |
14 | Paste pump | 1.5 | 1000*300*350 | 1 | / |
15 | Storage tank | 1.1 | 300L | 1 | / |
16 | Control cabinet | / | / | 2 | / |
17 | Pipe | / | / | / | / |

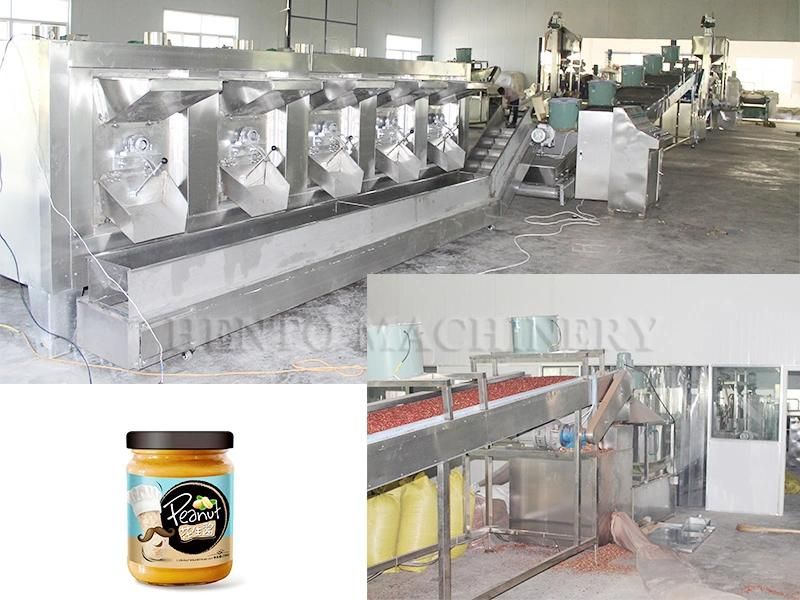

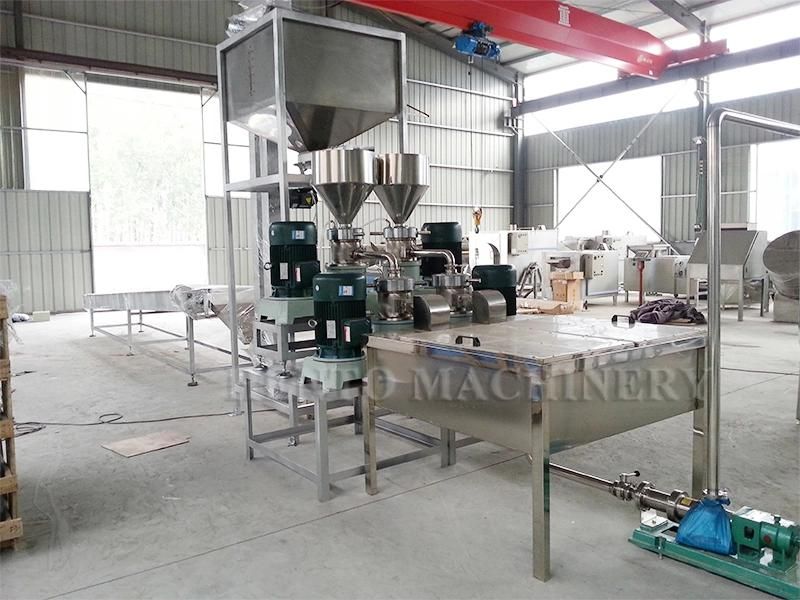

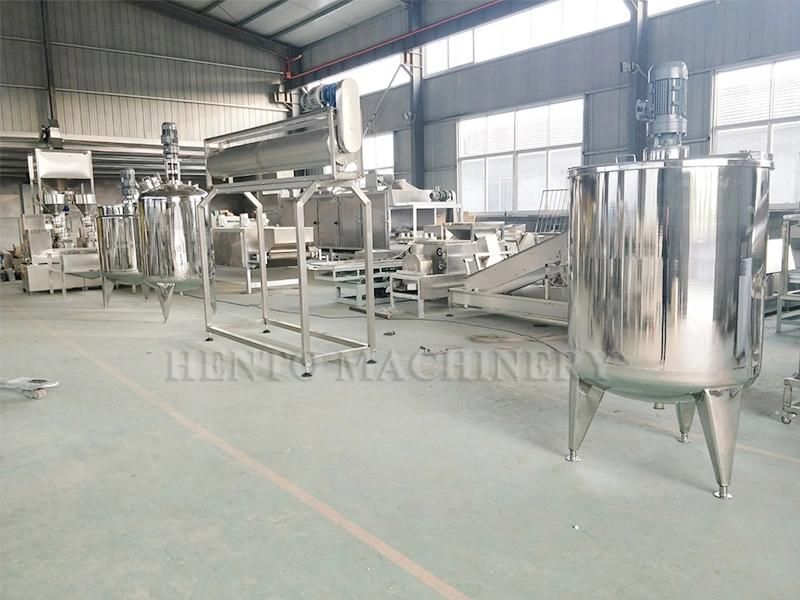

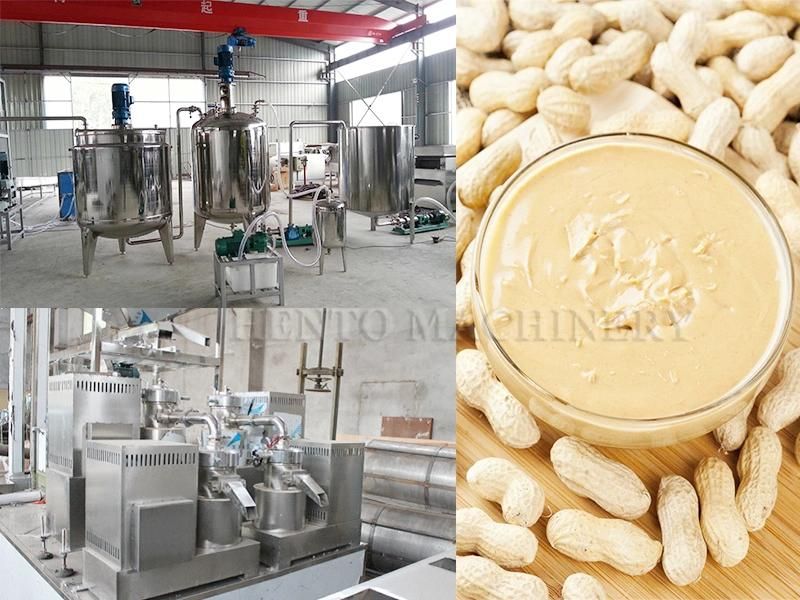

3.Product Picture:




4.Packaging & Shipping:

5.Our Customer:

6.Contact Information:
