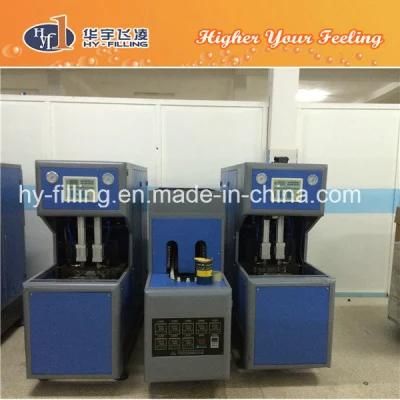

| Main machine (blowert + oven) | Model type | Tech data |
| Product Spec | Max. product volume(L/cav) | 2 |
| Max. preform neck size(mm) | 100 |
| Max. product diameter(mm) | 180 |
| Max. product height (mm) | 300 |
| Cavities | 2 |
| Blow molding part | Die force (KN) | 100 |
| Die stroke (mm) | 270 |
| Max. mould size(mm) | 390*345 |
| Mould thickness | Adjustable |
| Mould spacing(mm) | |
| Max. pulling stroke(mm) | 400 |
| Operation pressure(Mpa) | 0.8-1.0 |
Operation air pressure consumption
(1tr/min) | 200 |
| Blow pressure(Mpa) | 1.2-2.8 |
| Blow air pressure consumption (1tr/min) | 300 |
| Output(pcs/h) | 1000-1800 |
| Machine size(LxWxH)(m) | 1.46*0.58*1.8 |
| Machine weight(KG) | 650 |
| Oven | Temperature grade(rate) | 8 |
| Heating time(S) | 90-200 |
| Voltage(V) | 220 or as requested |
| Frequency(HZ) | 50/60 |
| Total power(KW) | 16 |
| Oven Size (LxWxH) | 1.35*0.55*1.15 |
| Oven weight (KG) | 300 |
• Auxiliary device| Auxiliary device | Required Spec | Tech data |
| High pressure air compressor | Operation air pressure | 2.5 Mpa |
| Air displacement | 1 m3/min |
| Power | 11 Kw |
| Weight | 450 kg |
| Low pressure air compressor | Operation air pressure | 0.8 |
| Air displacement | 1 Mpa |
| Power | 7.5 m3/min |
| Weight | 400 Kw |
| Air filter (oil-water separator ) | Filter precision | ≤5ppm |
| Weight | 60 Kg |
