Mini Plastic HDPE Extruder Making Small Film Blowing Machine
Nanyang Yukang Photonics Co., Ltd.Base Info
Description
Basic Info.
Model NO. SJ- Computerized Computerized Machine Weight 1.2 T Certification CE, ISO9001:2008 Main Motor Power 7.5kw Die Head 40mm Screw and Barrel Material 38 Crmoala L/D Ratio 28:1 Power Consume 11kw Transport Package Film Package Specification SGS Trademark YUNBANG Origin China HS Code 8477309000 Production Capacity 20 Sets/MonthProduct Description
Product Description

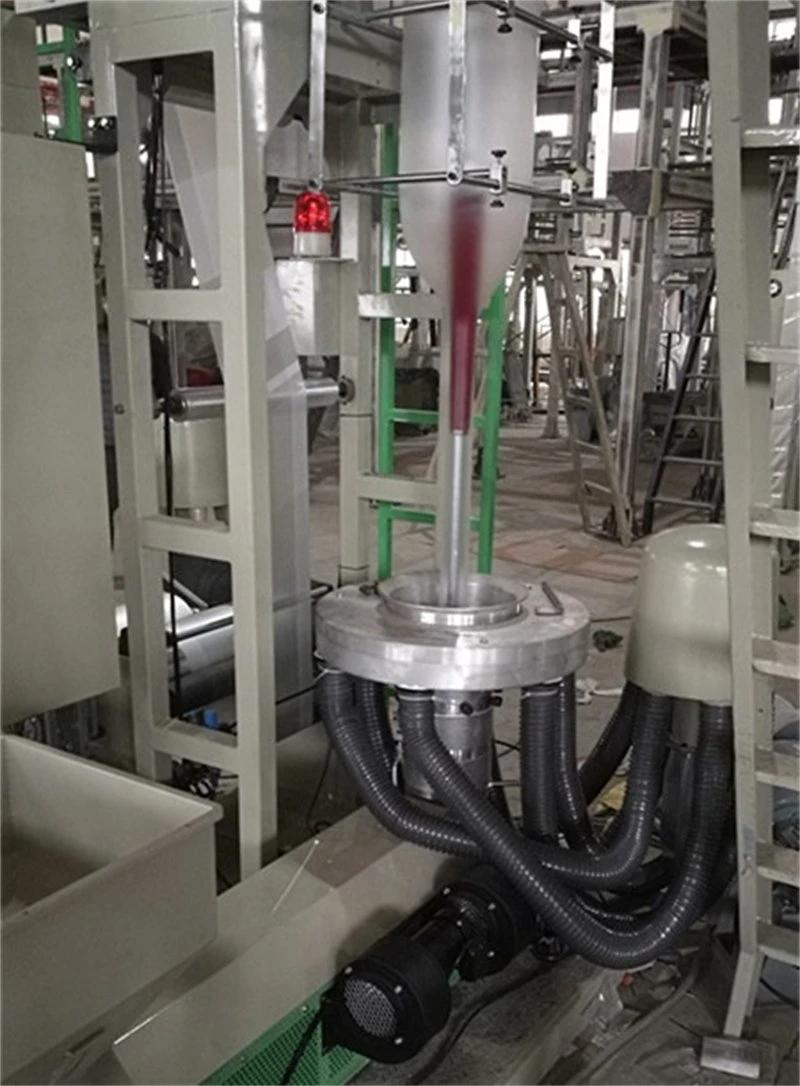

Mini-type film blowing machine
It is used to blow the film in small width. And its product can be used for making the T-shirt bag and also for gropping the rubbish of life.
Ruian YunBang Machine Co., Ltd, is a professional manufacturer, specialized in the making of plastic bag, film blowing and so on. And our machine is all in good quality and the price is very competitive in China.
We have manufactured the machine for many regions, like the India, Algeria, Egypt, Argentina, Nissan, ect.
Welcome your inquiry and visit!
| Max. film width | 80-400mm |
| Suitable material | HDPE LDPE LLDPE |
| Max. output | 15-20kg/hr |
| Film thickness | 0.008-0.05mm |
| Gear box | 133 |
| Screw diameter | 35mm |
| Screw material | 38 CRMOALA |
| L/D | 28:1 |
| Main motor power | 7.5kw |
| Main motor inverter | 7.5kw |
| Barrel material | 38 CRMOALA |
| :Barrel cooling | 250w×1 |
| Barrel tempcontrol | 2pcs |
| Barrel heating | Stainless steel |
| Die head | HD40mm |
| Die and adapator temp.control | 2pcs |
| Die and adapator heating | Stainless steel |
| Air ring | 450mm |
| Fan | 1.1kw |
| Traction roller width | 138×450mm |
| Traction motor power | 0.75kw |
| Traction inverter | 1.5kw |
| Traction speed | 5-80m/min |
| Wind type | Single wind |
| Wind power | 5-8N.m |
| Winder speed | 5-80m/min |
| Down frame size | 200mm |
| Up frame size | 160mm |
| Power consume | 11kw |
| Aluminum roller width | 450mm |
| Machine size | 1700×2000×3000mm |
