Basic Info.

Model NO. YCR50 Drilling Way Rotary Transport Package Comply with Export Packaging Requirements Specification YCR50 Trademark Yuchai Origin China HS Code 84305090 Production Capacity 20sets/Month

Product Description

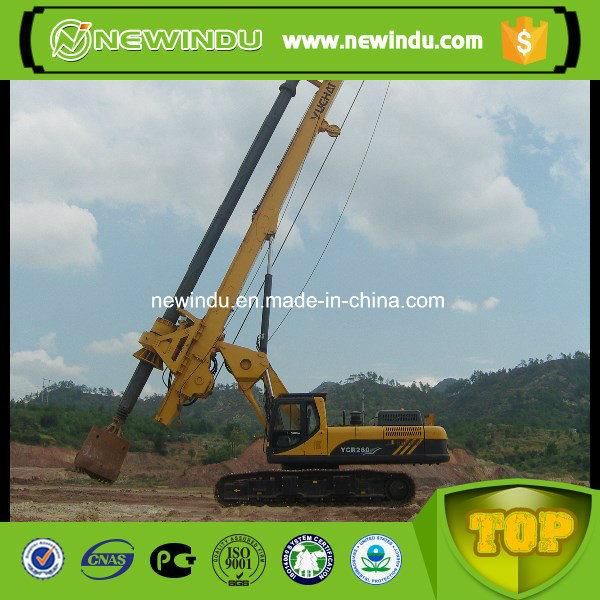

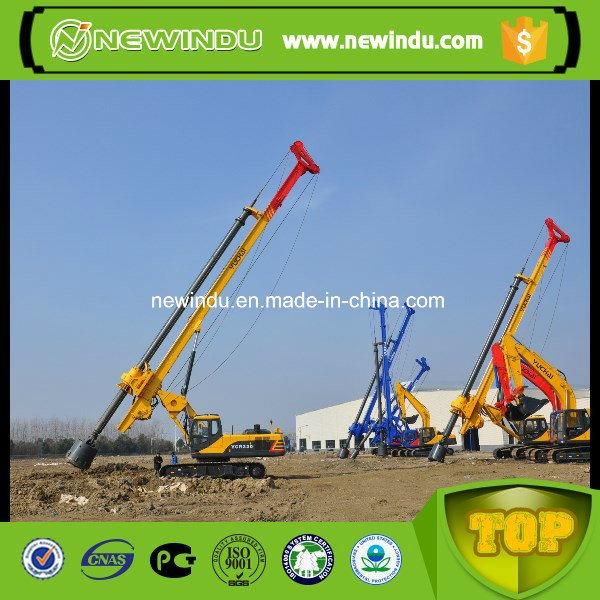

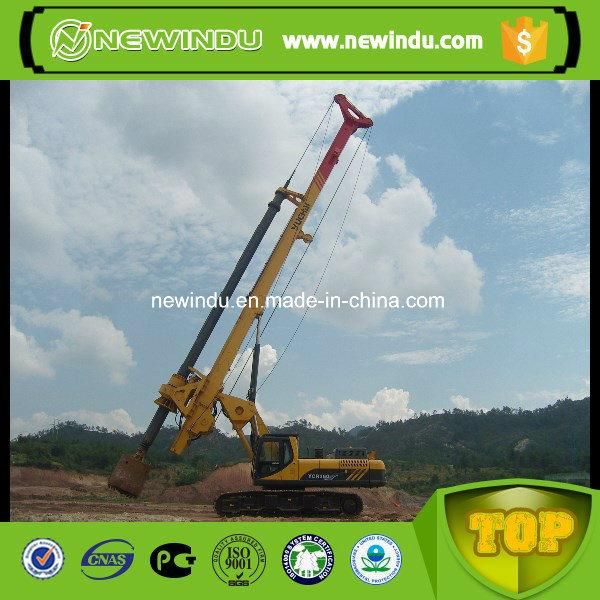

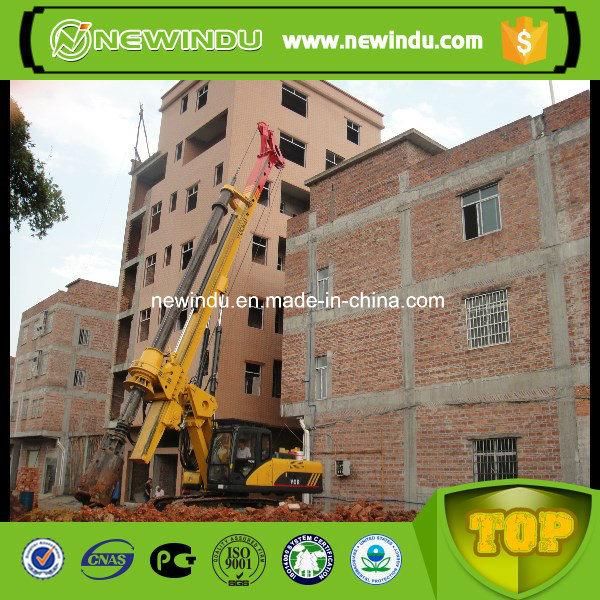

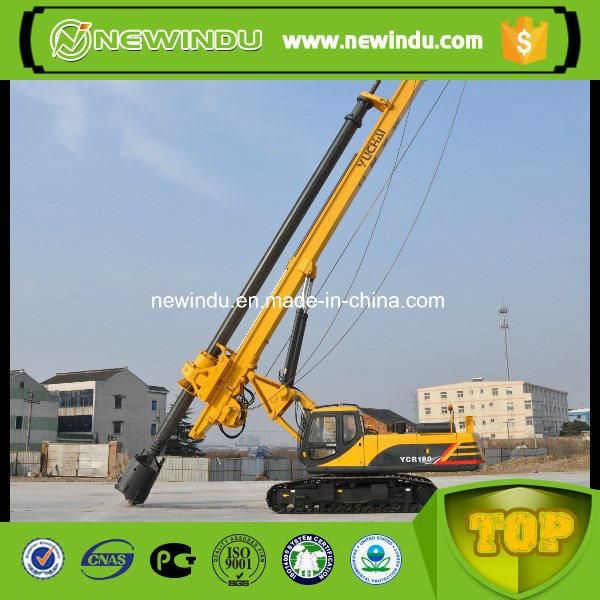

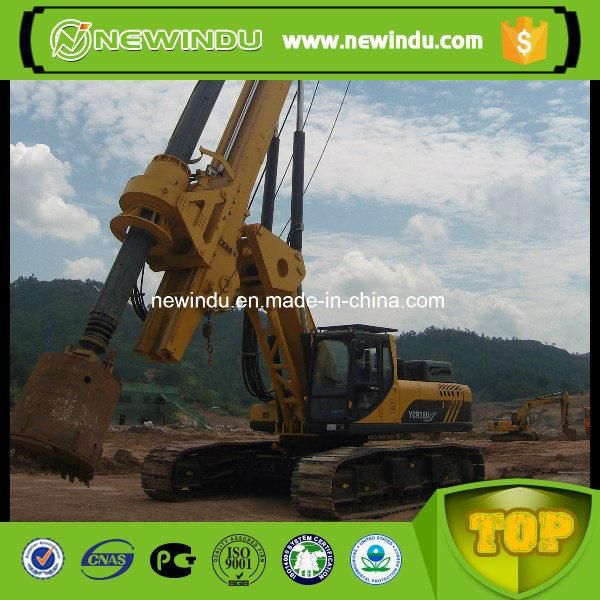

Rotary Drilling Rig Core Drilling Rig brand Yuchai YCR50

Specifications:

Engine: Cumins B3.9

Rated power/speed: 86/2200 kW/rpm

Overall width (extended side frames): 2600mm

Track shoe width: 600mm

Traction: 110N

Power Head:

Max torque: 50 kN.m

Speed: 6-35r/min

Max pressure: 50kN

Max pulling force: 60kN

Pressurized cylinder stroke: 1500mm

Hoist

Main hoist

The first layer lifting force: 60kN

Max lifting speed: 70m/min

Rope diameter: Φ16mm

Deputy hoist

The first layer lifting force: 15kN

Max lifting speed: 45m/min

Rope diameter: Φ12mm

Kelly Bar

The forward angle: 4°

The inclination angle of the left and right: ±4°

Pump

Max operating pressure: 34MPa

Depth and diameter

Max diameter: 1200mm

Max depth: 40m

Kelly Bar

Kelly bar: φ299mm

Operating weight:18.2t

Size of the machine:

      Project              Parameters

A. Operating height:         11220mm

    Operating width:           2600mm

B. Transport length:         4950mm

C. Transport height:         3480mm

   Transport width:           2600mm
