Hfx Hydraulic Crawler Type Borehole Water Well Drilling Rig Flexible and Convenient
Wenhong Printing Machinery (Jiangsu) Co., Ltd.Base Info
Description
SPECIFICATIONS FOR HFX SERIES DEEP WATER WELL DRILL RIG
Type
HFX400
HFX500
HFX700
Drilling capability
Drilling depth
420(∅89)
520(∅89)
700(∅102)m
Max.diameter of work floor
∅420mm
∅500mm
∅500mm
Feeding system
Max.lifting capacity
200KN
260KN
350KN
Max.feeding capacity
100KN
120KN
150KN
Max.lifting speed
26m/min
30m/min
32m/min
Max.feeding speed
52m/min
60m/min
60m/min
Stroke
6600mm
6600mm
7000mm
Top drive
Max.torque
9300N.m
9500N.m
12200 gear pump/15000 plunger pump
Speed
0-143r/min(Optional)
0-200r/min(Optional)
180-190r/min(Optional)
I.D
∅55mm
∅55mm
∅55mm
Floating distance
/
/
/
Max.tilting angle
/
/
/
Deck engine
Type
CUMMINS QSB3.9-C130
CUMMINS QSB5.9-C150
CUMMINS QSB5.9-C210
Rated power
97kw
113kw
154kw
Tool winch
Hosting capacity
30KN
15KN
15KN
Max.speed
30m/min
30m/min
15m/min
Breakout device
Max.breakout torque
36000N.m
36000N.m
36000N.m
vise clamping range
Customized
Customized
Customized
Mud pump
Max.flow
/
/
/
Max.pressure
/
/
/
Foam pump
Rate of flow
/
/
/
Rated pressure
/
/
/
Mud pipe
Internal diameter
∅55
∅55
∅55
Pressure
15Mpa
15Mpa
15Mpa
Chassis
Drive mode
Crawler chassis
Crawler chassis
Crawler chassis
Rated power
/
/
/
High speed
3.3km/h
2.7km/h
3km/h
Max.climbing gradient
39º
39º
39º
Working dimension
4350*1800*8900mm
4600*2100*9000mm
5130*3250*10500mm
Transportation dimension
6000*1800*2000mm
6000*2100*2600mm
6400*2250*2860
Weight
10.5t
12.5t
14t

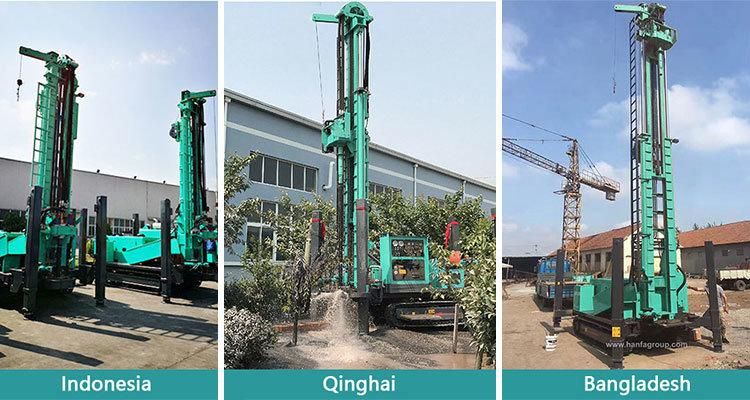

Working Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience

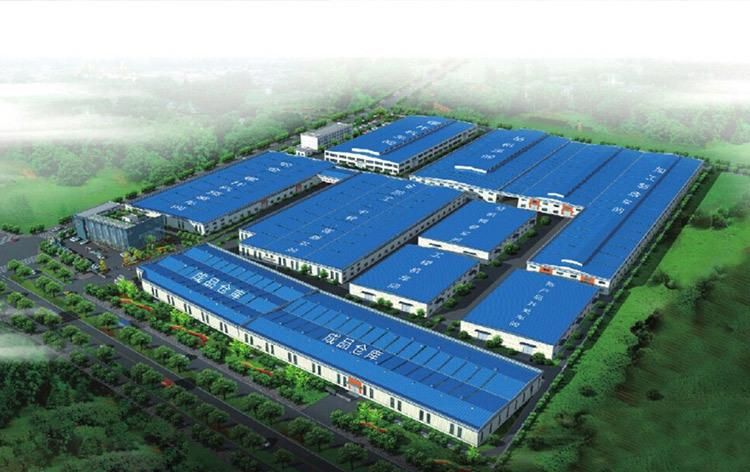

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.

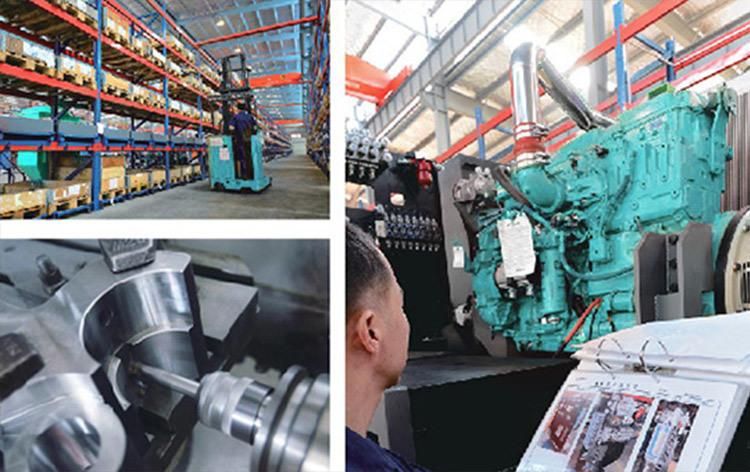

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1, Are you trading company or manufacturer?
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
