High Speed 3 Layer Co-Extrusion Line for PE Stretch Film Machine

Wenzhou Handpack Machinery Co., Ltd.

Base Info

Description

Model No.PB-55/75X1250Screw Diameter55/75mmScrew L/D30:1Screw Speed50-150rpmLayer StructureAB/ABAFilm materialPEFilm Width1000mm/2*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power75KWCapacity80-150Kg/hTotal weight8TDimension7.5M*3M*3.4M
Product Advantages
  • Easy operating, long life, energy saving
  • Stable and reasonable extrusion
  • High quality T-die for excellent film evenness and stability
  • Enhanced cooling system
    (adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller)
  • Advanced oscillation (swing) system
  • Highest winding speed (up to 200m/min) among similar stretch film machines
  • High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min

  • Optional System:
  • vacuum pump
  • Melting gear pump and PID controlling system
  • Micro-computer temperature controller with touch screen for accuracy temperature control
  • Automatic air shaft loading & off-loading to save man power
  • Automatic screen changer with hydraulic station

Machine Details:

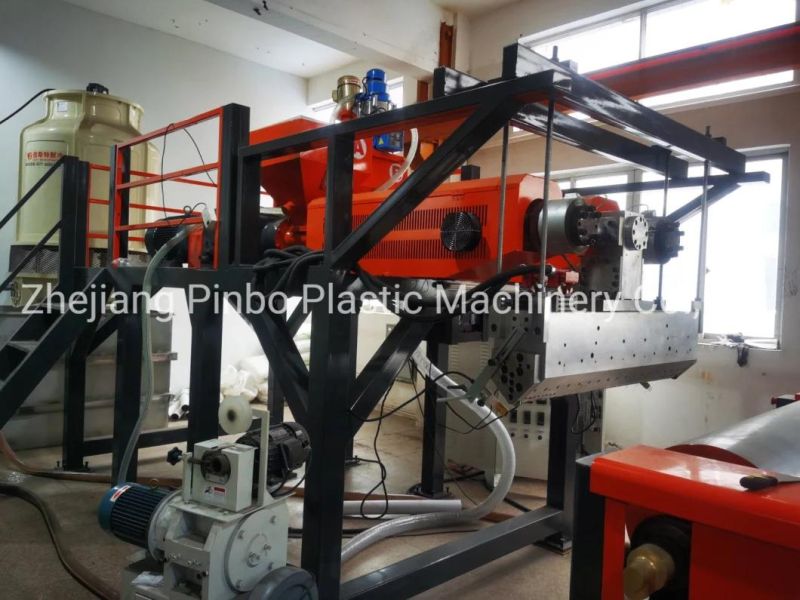

Extruder & T die
High Speed 3 Layer Co-Extrusion Line for PE Stretch Film MachineHigh Speed 3 Layer Co-Extrusion Line for PE Stretch Film Machine

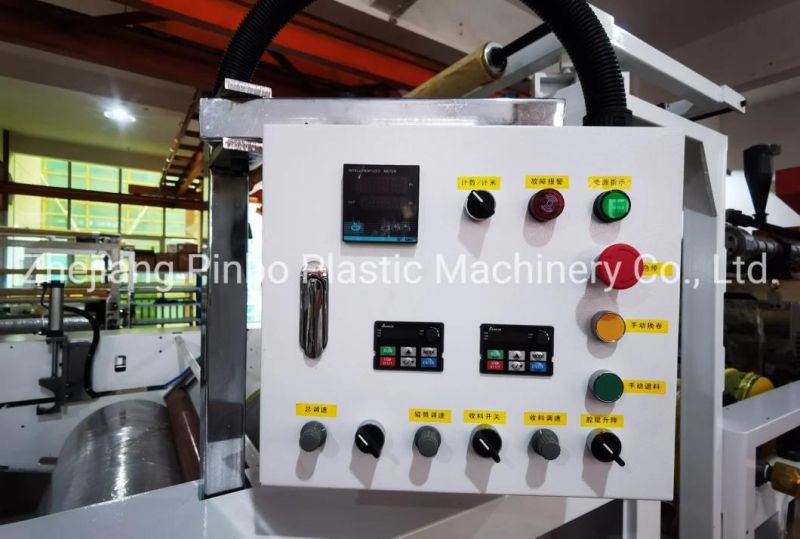

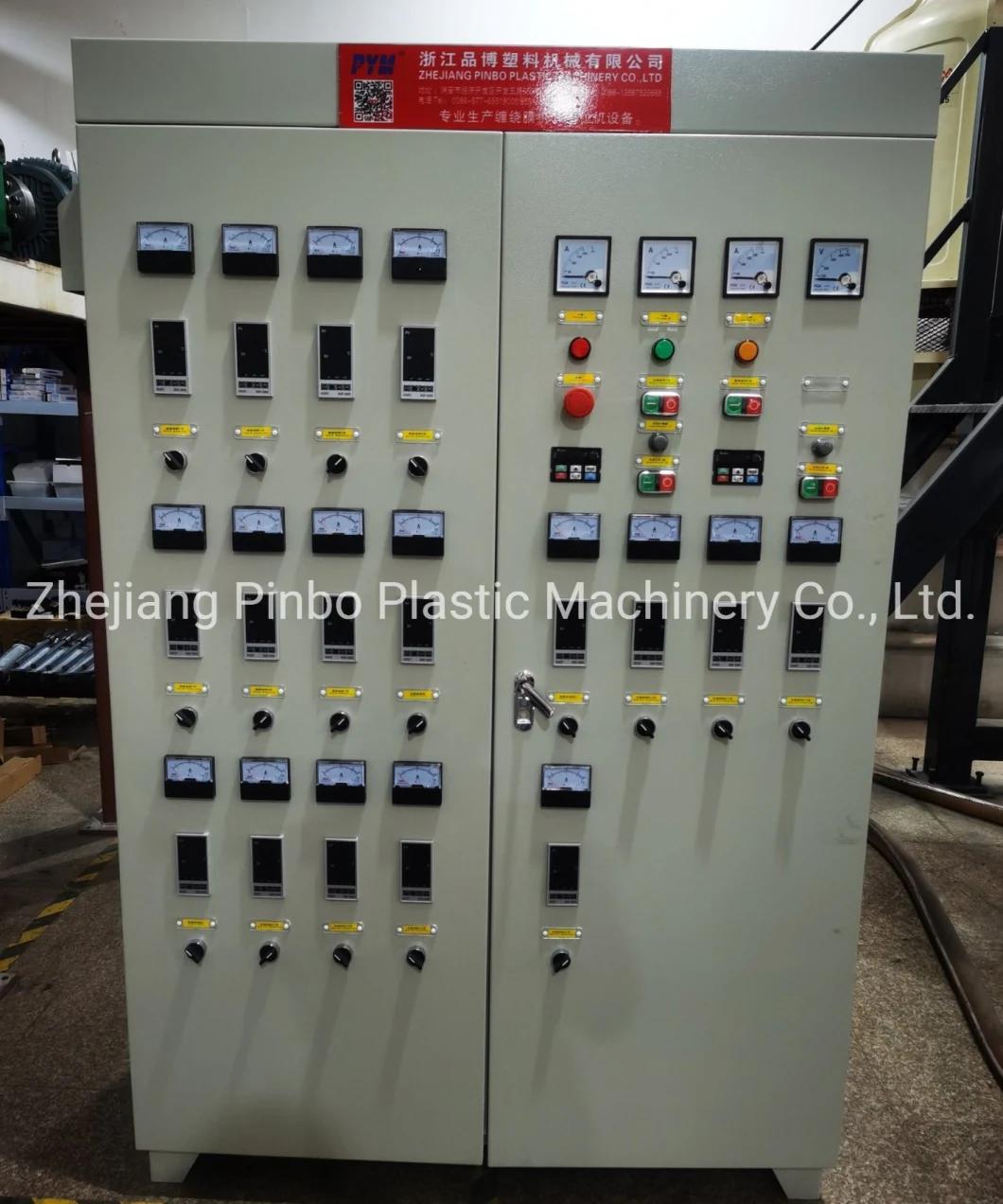

CONTROL BOX:
High Speed 3 Layer Co-Extrusion Line for PE Stretch Film MachineHigh Speed 3 Layer Co-Extrusion Line for PE Stretch Film Machine

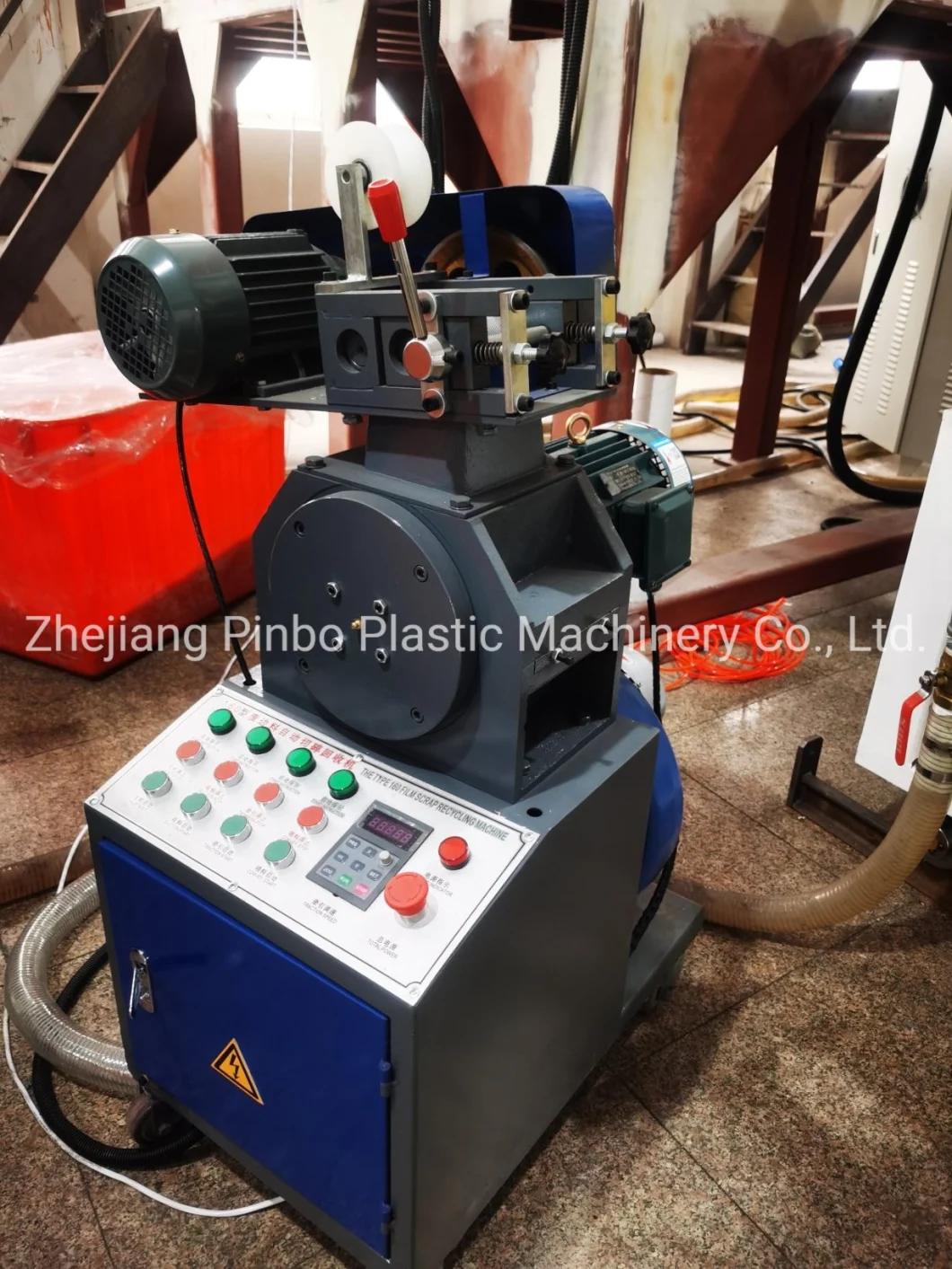

WASTE FILM CRUSHER:
High Speed 3 Layer Co-Extrusion Line for PE Stretch Film MachineHigh Speed 3 Layer Co-Extrusion Line for PE Stretch Film Machine
