Basic Info.

Model NO. HSD Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Application Jacket PE Pipe Extrusion Calibration Meth Vacuum Calibration Pipe Diameter Range 110-2000mm Control System Siemens PLC Transport Package Standard Package for Export Trademark HSD Origin Qingdao China HS Code 8477209000 Production Capacity 20 Unit/Year

Product Description

Black HDPE PE Casing Shell Jacket Pipe Extruder for Polyurethane Foam Pre-insulated District Heating Pipe




Introduction: Vacuum Calibration Plastic HDPE pipe machine
 is a completed high-speed and high-efficient, automatic and intelligent plastic pipe production line developed by HUASHIDA by technological innovation.

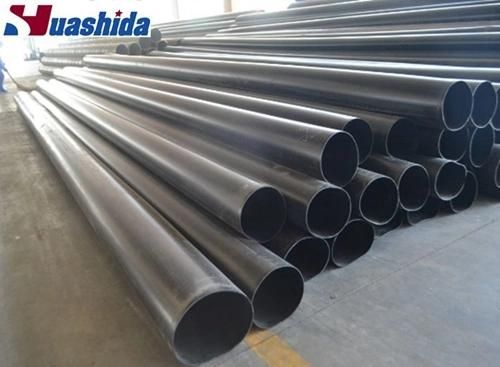

Application: It is applicable for extrusion of HDPE casing pipe(jacket pipe), which is used as a protective cover of rigid pre-insulated pipe in district heating, hot water or chilled water piping systems. Diameter range 110-2000mm.

Advantages: 1)vacuum calibration improves the stiffness, flexibility and mechanical strength of the pipe. 2)High degree of intelligence improves production efficiency and reduces labor costs. 3)Fast production speed, 30% faster than similar equipment. 4)High-quality hardware and software reduce maintenance costs.

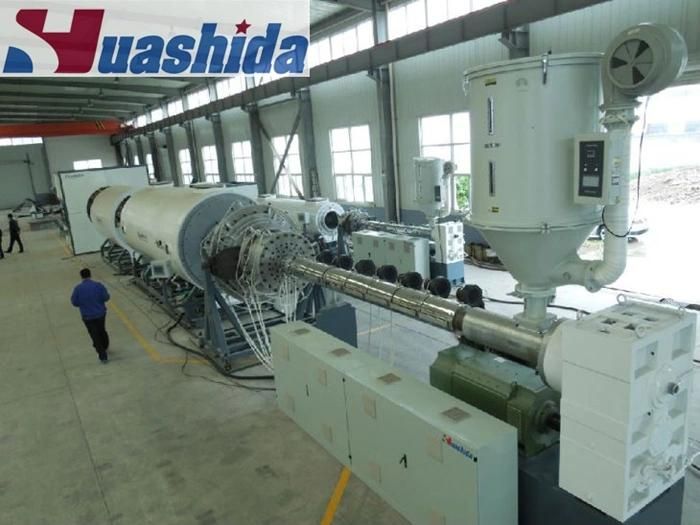

Structure: This pipe extrusion production line mainly includes a single screw extruder, molds, vacuum calibrating& water cooling tank, spray water cooling tank, haul-off machine, cutting machine and bracket.

Technical parameters

Style	PE-110/600	PE-365/760	PE-655/1380	PE-960/1680	PE-1054/1860
Main Extruder	SJ-75/33	SJ-90/33	SJ-120/33	SJ-150/33	SJ-150/33
Pipe diameter	Φ110-600mm	Φ365-760m	Φ655-1380mm	Φ960-1680mm	Φ1054-1860mm
Capacity	250-350kg/h	400-500kg/h	700-900kg/h	1000-1200kg/h	1000-1250kg/h
Installed power	160kw	240kw	480kw	580kw	580kw
Length	30m	32m	36m	40m	45m

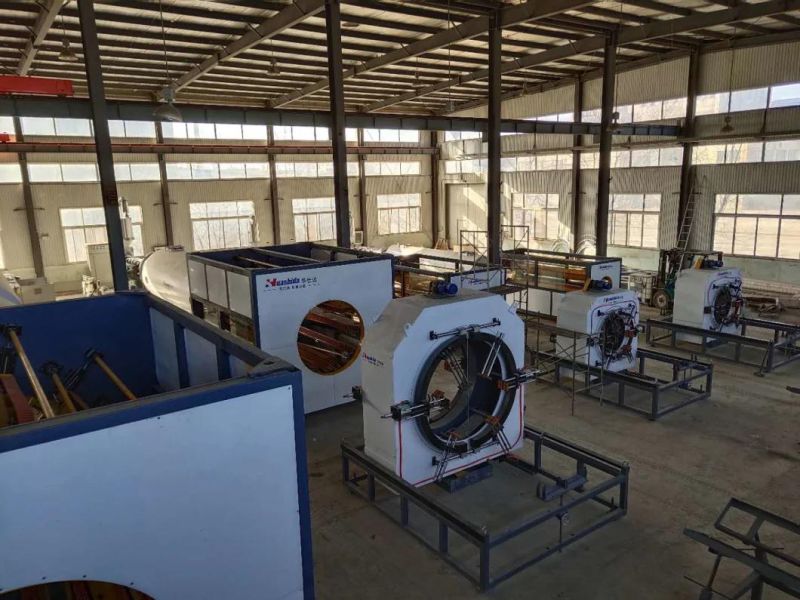

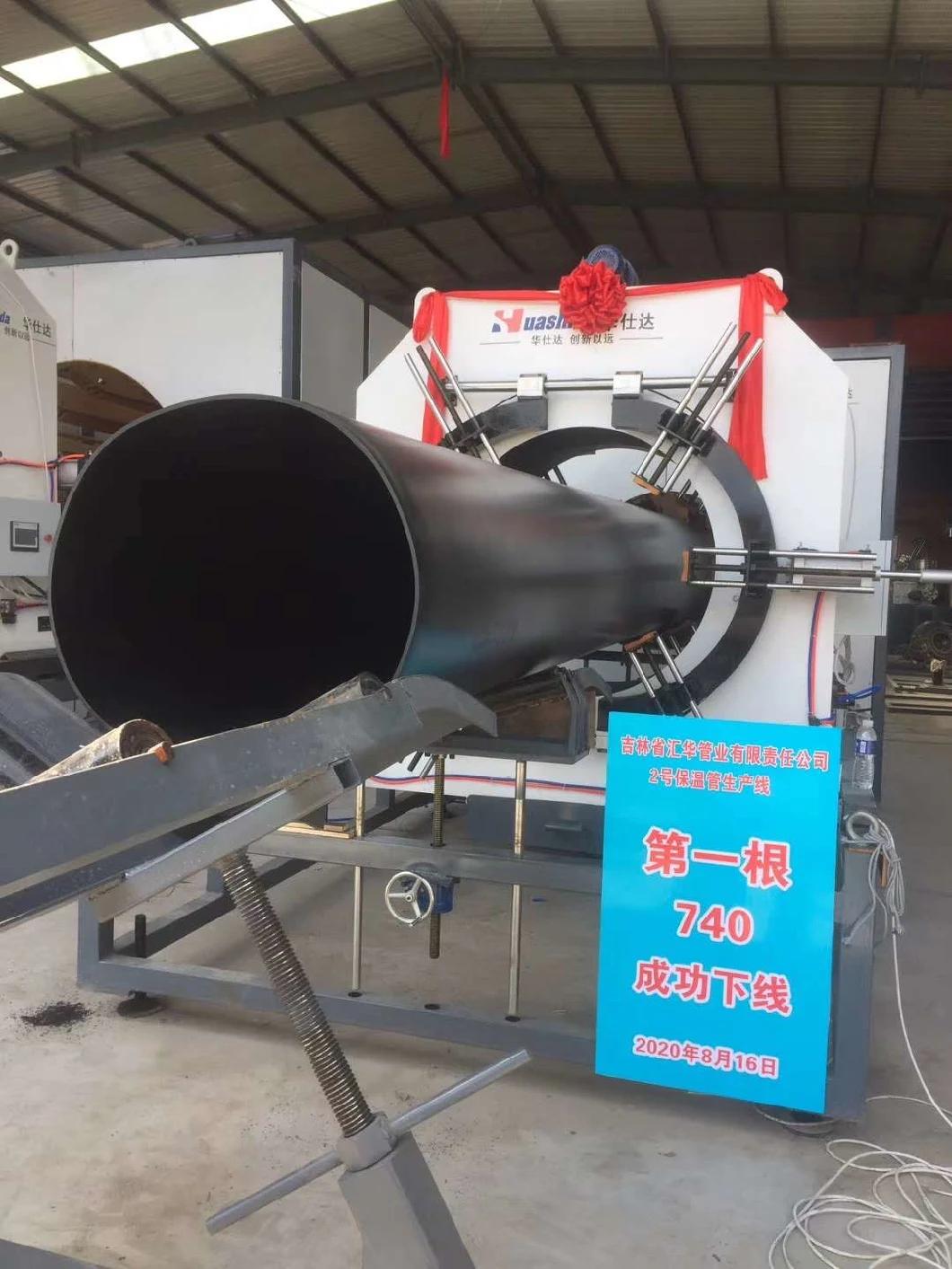

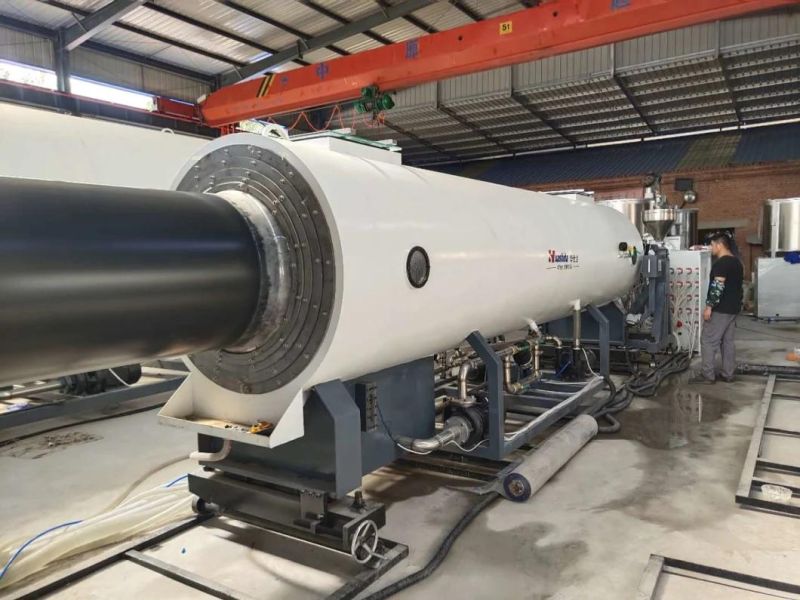

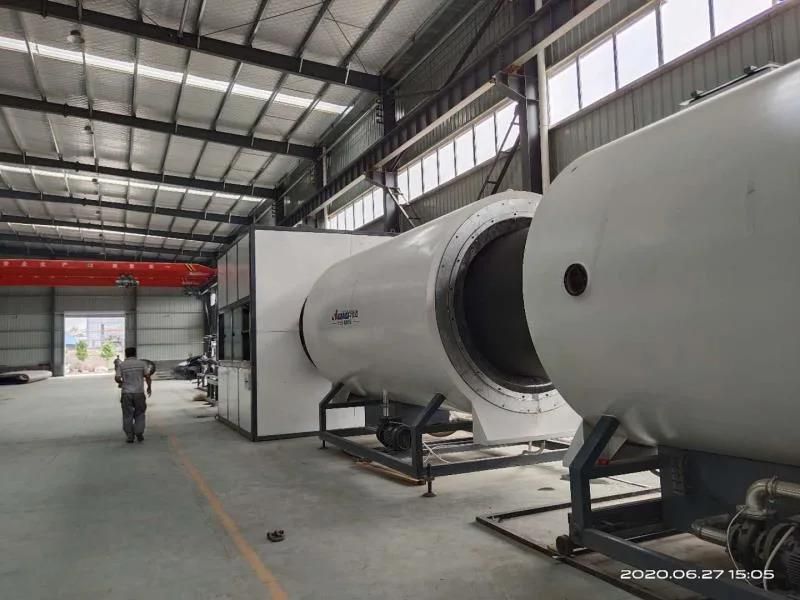

The production lines in clients' factories




Factory of HUASHIDA


PE pipe extruder delivery

Customers visiting
HUASHIDA on international exhibitions
