55/113 Mm Conical Twin Screw Plastic Extruder
Fuzhou Golden Moral Imp & Exp Co., Ltd.Base Info
Description
Basic Info.
Model NO. 55/113 mm Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package Export Standard Package Specification 55/113 Trademark KEBELN Origin China HS Code 8477209000Product Description

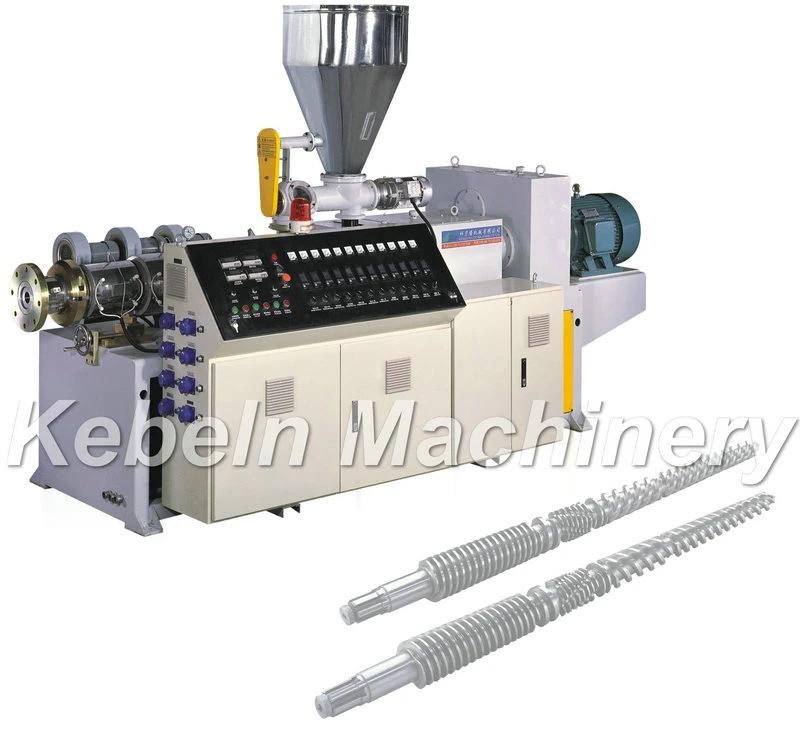

KBL55/113 conical twin-screw extruder have temperature-controller, vacuum exhaust device, suitable for the production of pipes, sheets and profiles. It has forced extrusion, high-quality, wide adaptability, long life, small shearing speed, material not easy broken down, good mixing performance, powder direct molding and so on.Main technical specification
| Screw diamete(rmm) | 55/113 | motor power(kw) | 22 | center height of screw(mm) | 1000 |
| screw direction | opposite outward | installation power (kw) | 62 | weight(kg) | 4000 |
| speed of screw rotation (r/min) | 1-38 | Max. capacity(kg/h) | 180 | dimension(L*W*H) (mm) | 3320× 1050× 2157 |
| length of screw (mm) | 1195 | quantity of barrel heating(pcs) | 4 | ||
| structure of screw | conical-shaped mesh | heating | die-casting aluminum+ ceram heating |
