Two-Stage PP PE Film Recycling Plastic Granulating Machine
ShunDe Jiatian Hard Tool Co., Ltd.Base Info
Description
Mode
Diameter
L/D
Motor power
Screen Changer
Capacity
SJ-100
100mm
20-32
30-70kw
Hydraulic
120-200kg/h
SJ-120
120mm
20-32
37-45kw
Hydraulic
200-300kg/h
SJ-150
150mm
20-32
55-75kw
Hydraulic
250-350kg/h
SJ-180
180mm
20-32
75-90kw
Hydraulic
300-450kg/h
SJ-200
200mm
20-32
110-160kw
Hydraulic
500-800kg/h

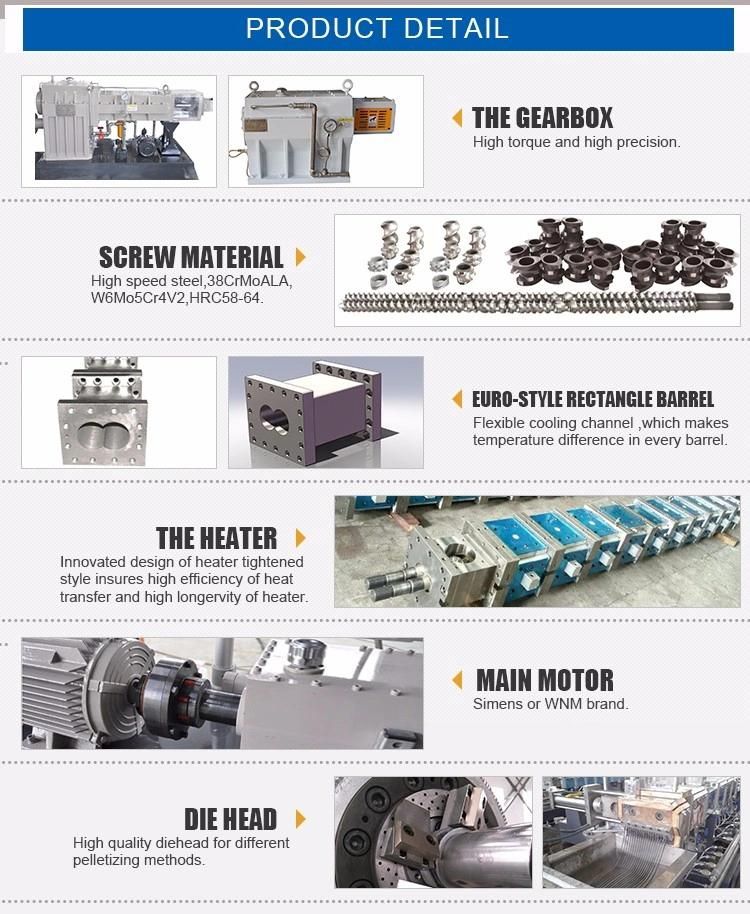

The Characteristics1.The gearbox· New-style project of parallel three-axises driving makes the convey axis, convey chain, decelerate and the torque assignment get together, which keep it compact, and the key bearings are imported.· The select material of drive components is dainty, including super intension alloy cementiteing steel, cementiting and quenching, gear grinding technics, strengthening of tooth face. So they can ensure high torque, high precision and low noise.· Soakage and coerce lubrication integrate smoothly. When the hydraulic circuit is over pressed, it alarms.2.The feeding system· Metering feeders are equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, liquid-adding system,etc.3.Screw · The screw elements and then kneading blocks are designed accurately, by precise processed, agile combination, with interchangeability, which can fulfill efficient self-cleaning, transmission, compounding, pressure-forming.· The screw material is made of high tool steel 38CrMoALA or W6Mo5Cr4V2 by special heat-treament.4.The barrel · Eurostyle rectangle barrel, reflux refrigeration is optimized and disposed, which makes temperature difference in C areas smaller.· According to the material and special techinics demands, the material of cylinder can use high quality nitrided steel, corrosion proof or antifriction with corresponding process.5.The heater· Innovated design of heater tightened style insures high efficiency of heat transfer and high longervity of heater.6.Pelletizing· Variou modes of pelletizing, such as water-cooling strand, air-cooling pelletizing, water-ring pelletizing, under water pelleting, etc.

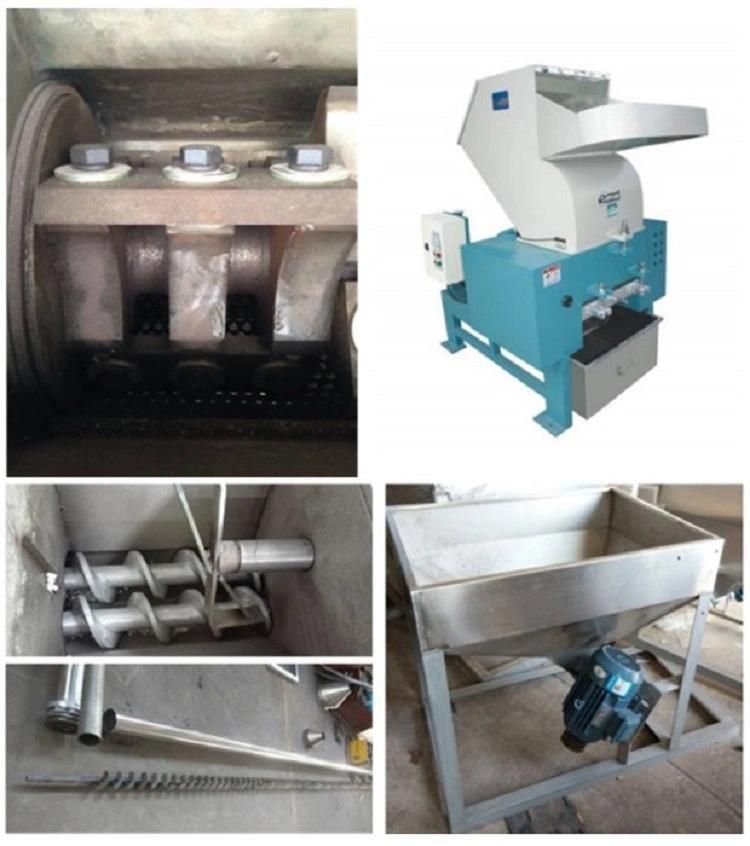

Auxiliary machines you may need:
The line with belt conveyer ,crusher ,extruder, auxiliary equipment. The line with characteristics of high output,low energy dissipation,labor-force saving,and high quality pellets,is an ideal equipment for film recycling and granulating line.
Our service
Before-saleIntroduce products in detailsRecommend suitbale solutionOffer test During manufacturing:Provide layout and engineering conditionsOffer screw plan and related documentsInform the project processing statusInsure the product designed in accordance with technical document After-sale:Provide installation,commissiong and trainingOffer spare partsProvide necessary technical support and update information 1.Quality guaranteed 2.Support factory visit 3.Technology supports
FAQ1. Q: How can we go to your factory? A:Our factory is located in Nanjing lishui, Jiangsu Province, China,
1) You can fly to Nanjing Airport directly. We will pick you up on Nanjing Lukou International airport; about 20 mintues to our company 2) You can fly to Shanghai Pudong International Airport then come to Nanjing by High-speed railway, then we will pick you up in the railway station.about 8 mintues to our company All our clients, from domestic or abroad, are warmly welcome to visit us! 2. Q: Why chose us? A: 1)Quick reply. Once we received the inquiry from Alibaba, we will reply you within 24hours. 2)Quick manufacturing time. To guarantee the quality, the machine will be finished within 60 days. 3) Before delivery, the machine will be tested to ensure every part is ok. 4) Wooden case package to ensure no damage during shipping. 3.Q:What is the payment? A: 1) T/T payment; 2) LC;
