Granite Quarrying Diamond Wire Saw
Shenyang Rustproof Packaging Material Co., Ltd.- Application：Granite,Sandstone
- Product Name：Wanlong Wire Saw
- Diameter：10.5mm
- Connection：Plastic
- Beads/Meter：37
- Linear Speed(M/S)：20-30
Base Info
- Model NO.：diamond wire saw
- Graininess：500#
- Thickness：10mm
- Shape：Round
- Kind：Diamond Wire Saw
- Manufacturing Arts：Sinter
- Usage：Stone Cutting, Plastics, Laminate Plate
- Brand：Wanlong
- Saw Blade External Diameter：8.8-11mm
- Customized：Customized
- Transport Package：Available Upon Request
- Specification：diameter=10.5mm diamond wire saw, 8.8-11mm
- Trademark：wanlong
- Origin：Quanzhou City
- Production Capacity：100, 000, 000 PCS,Year
Description

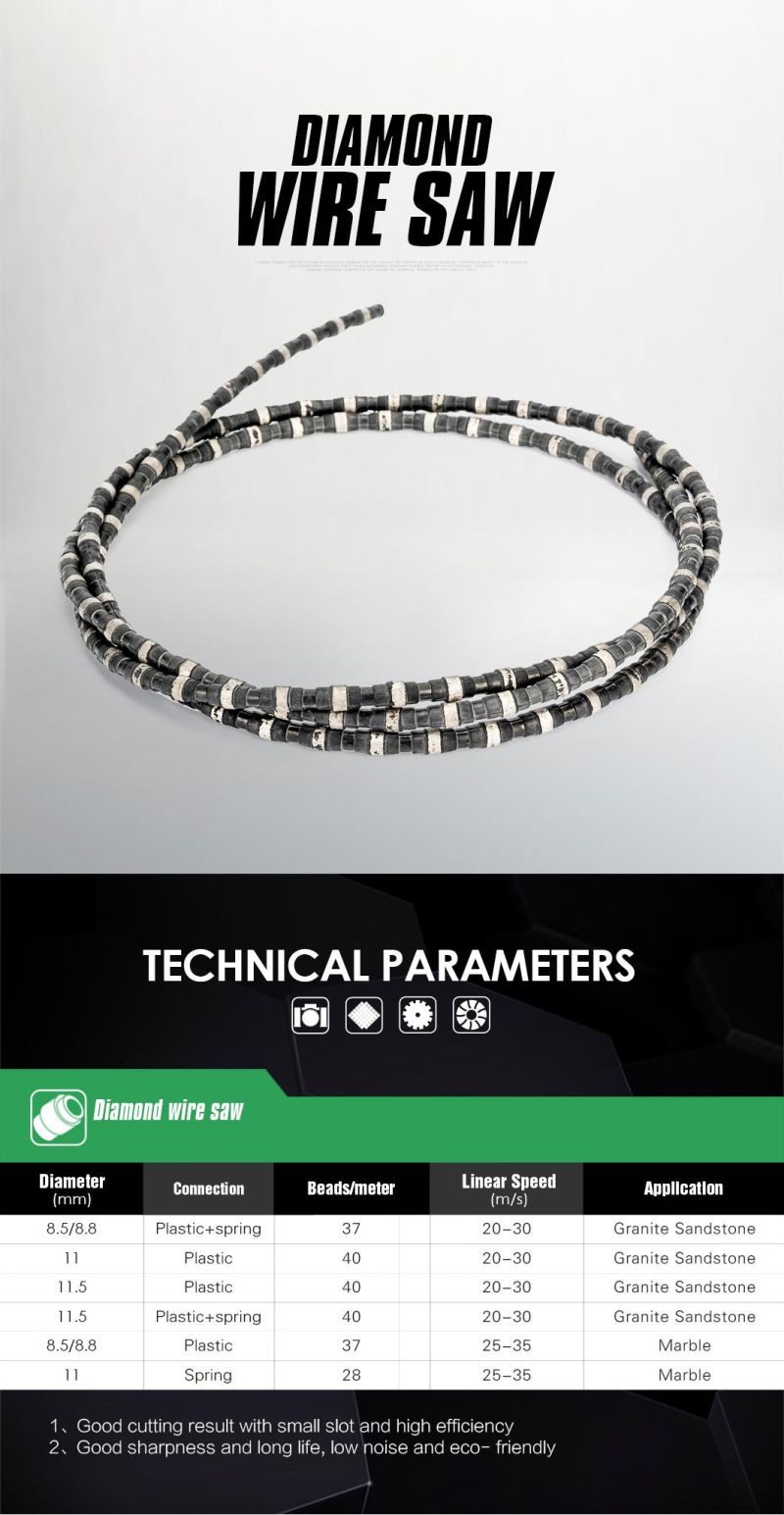

Diameter (mm) | Connection | Beads/meter | Linear Speed(m/s) | Application |
|---|---|---|---|---|
| 8.5/8.8 | Plastic+spring | 37 | 20-30 | Granite Sandstone |
| 11 | Plastic | 40 | 20-30 | Granite Sandstone |
| 11.5 | Plastic | 40 | 20-30 | Granite Sandstone |
| 11.5 | Plastic+spring | 40 | 20-30 | Granite Sandstone |
| 8.5/8.8 | Plastic | 37 | 25-35 | Marble |
| 11 | Spring | 28 | 25-35 | Marble |
Attention:
1. Regular inspections of diamond wire self rotation and adjust in time.
2. Regular inspections of diamond wire abrasion to avoid cut-in-one-side problem happened, and make the solution in time if occurs.
3. Regular inspections the joint, as well as the beads of two sides, if they are abrase badly, replaces them in time.
4. The steel cable tension of the stationary machines should be controlled within 250-300kg(φ4-5mm).
5. Linear speed is ajusted according to stones hardness.
6. For the new wire, when start to cut, its linear speed should be slower 2-3m/s than the standard mentioned above, it is good for sharpen.
