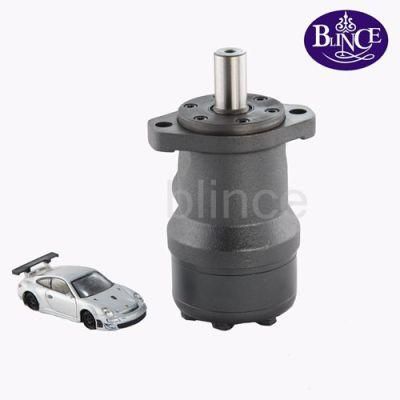

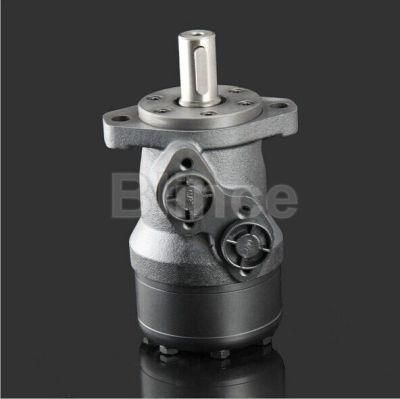

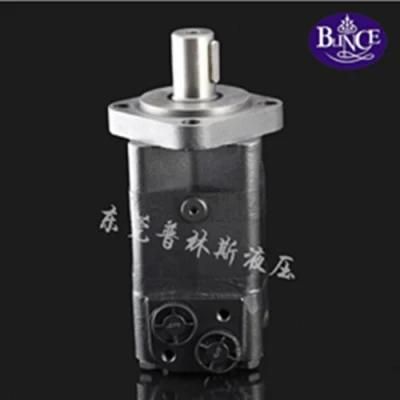

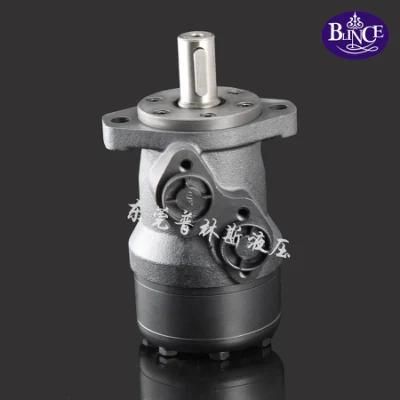

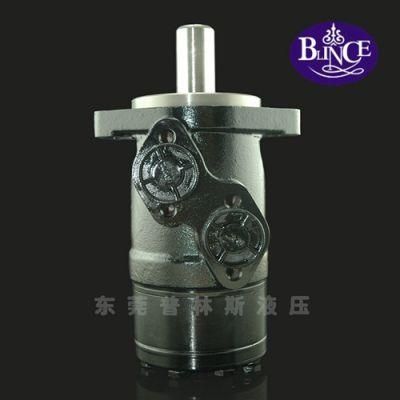

High Torque Omt Hydraulic Pumps and Motors for Wood Splitter
Guangzhou Cospack Packaging Technology Co., Ltd.- Certification：GS, CE, ISO9001
- Excitation Mode：Excited
- Power Rating：3500W
- Casing Protection：Protection Type
- Number of Poles：6
- Speed：High Speed
Base Info
- Model NO.：omt160,200,250,315,400,500,630 hydraulic motor
- Type：Hydraulic Motor
- Warranty：One Year
- Hydraulic Power Units：Vane Pump
- Motor Shafts：Straight, Splined and Tapered
- Motor Material：Cast Iron
- Processing：Forging & Cutting &Phosphating
- Usage：Hydraulic Oil
- Hydraulic Motor：Vane Hydraulic Motor
- Application：Plastic Machine, Agriculture Machine
- Motor Flange Shape：Square and Rhombus Flange
- Hydraulic Actuator：Hydraulic Motor
- Transport Package：Industrail Plastic Bag+Carton
- Specification：CE, ISO9001
- Trademark：blince
- Origin：Guangdong
- HS Code：8412291000
- Production Capacity：6000
Description
Type OMT
160 OMT
200 OMT
230 OMT
250 OMT
315 OMT
400 OMT
500 OMT
630 OMT
800 Displacement (cc/rev) 161.1
201.4 232.5 251.8 326.3 410.9 523.6 629.1 801.8 Max torque
(n.m) cont 470 590 670 730 950 1080 1220 1318 1464 int 560 710 821 880 1140 1260 1370 1498 1520 Max pressure
(Mpa) cont 20 20 20 20 20 18 16 14 12.5 int 24 24 24 24 24 21 18 16 13 Max speed ) cont 625 625 536 500 380 305 240 196 154 int 780 750 643 600 460 365 285 233 185 Max flow
(L/min) cont 100 125 125 125 125 125 125 125 125 int 125 150 150 150 150 150 150 150 150 Weight(kg) 19.5 20 20.4 20.5 21 22 23 24 25
