LDPE Stretch Film Extruder Plastic Film Machinery Production Line
Wenzhou Handpack Machinery Co., Ltd.Base Info
Description
Model No.PB-55/75X1250Screw Diameter55/75mmScrew L/D30:1Screw Speed50-150rpmLayer StructureAB/ABAFilm materialPEFilm Width1000mm/2*500mmFilm Thickness0.01-0.05mmElectric power supplyCustomized, Standard is 380V/50HZ/3PTotal Power75KWCapacity80-150Kg/hTotal weight8TDimension7.5M*3M*3.4M
Product Advantages
Machine Details:

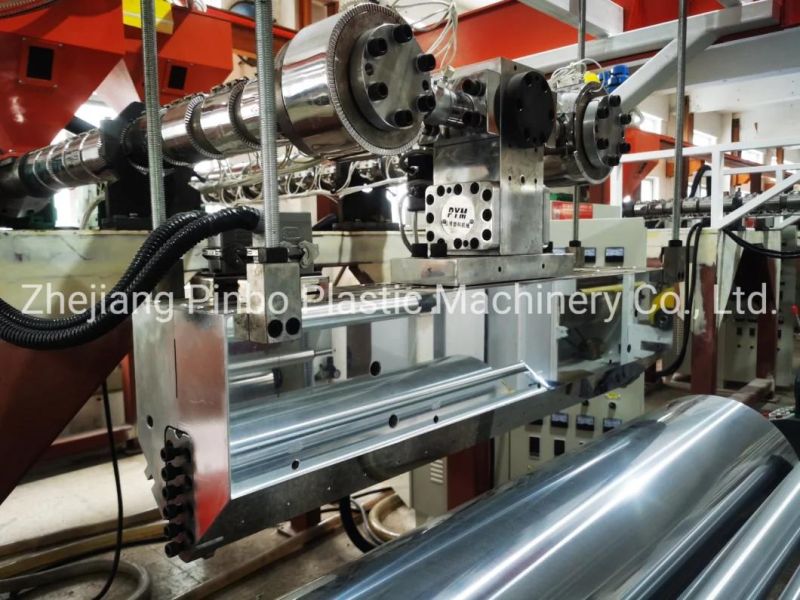

Extruder & T die

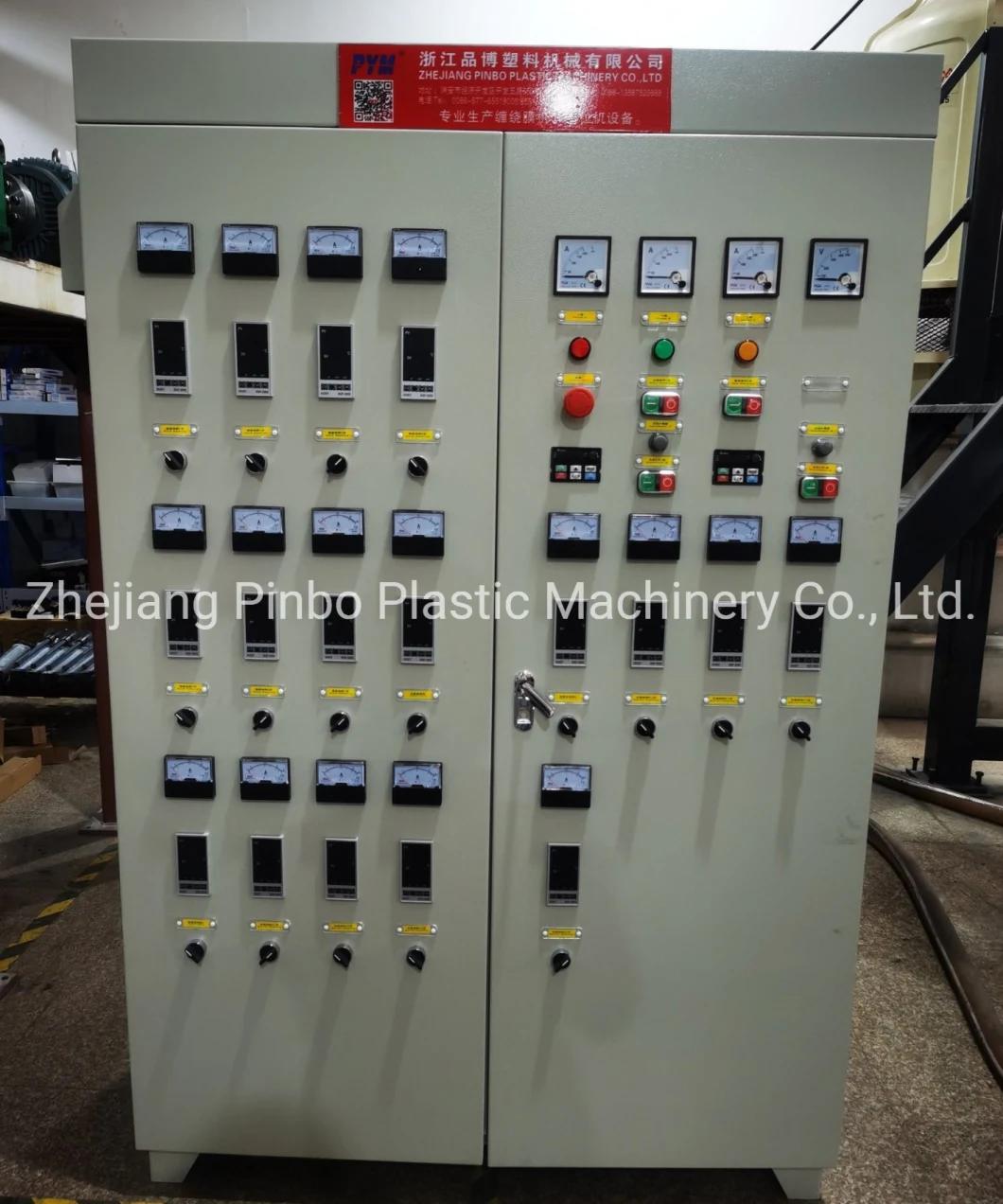

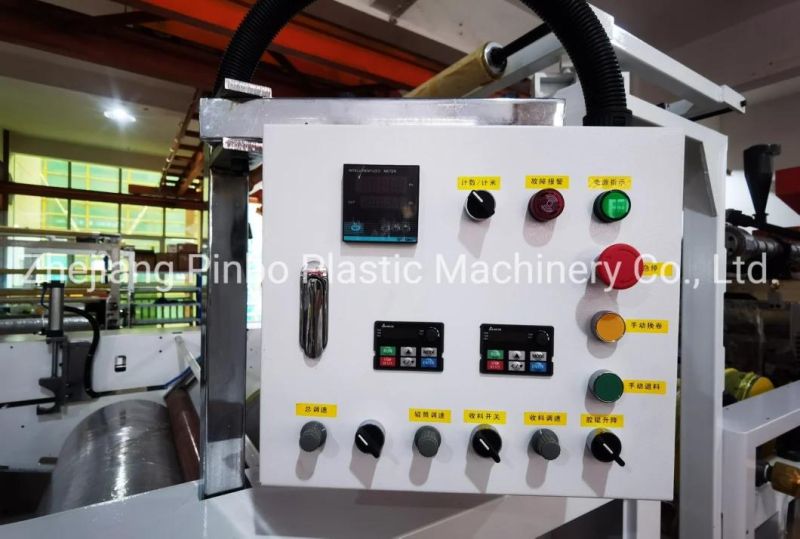

CONTROL BOX:

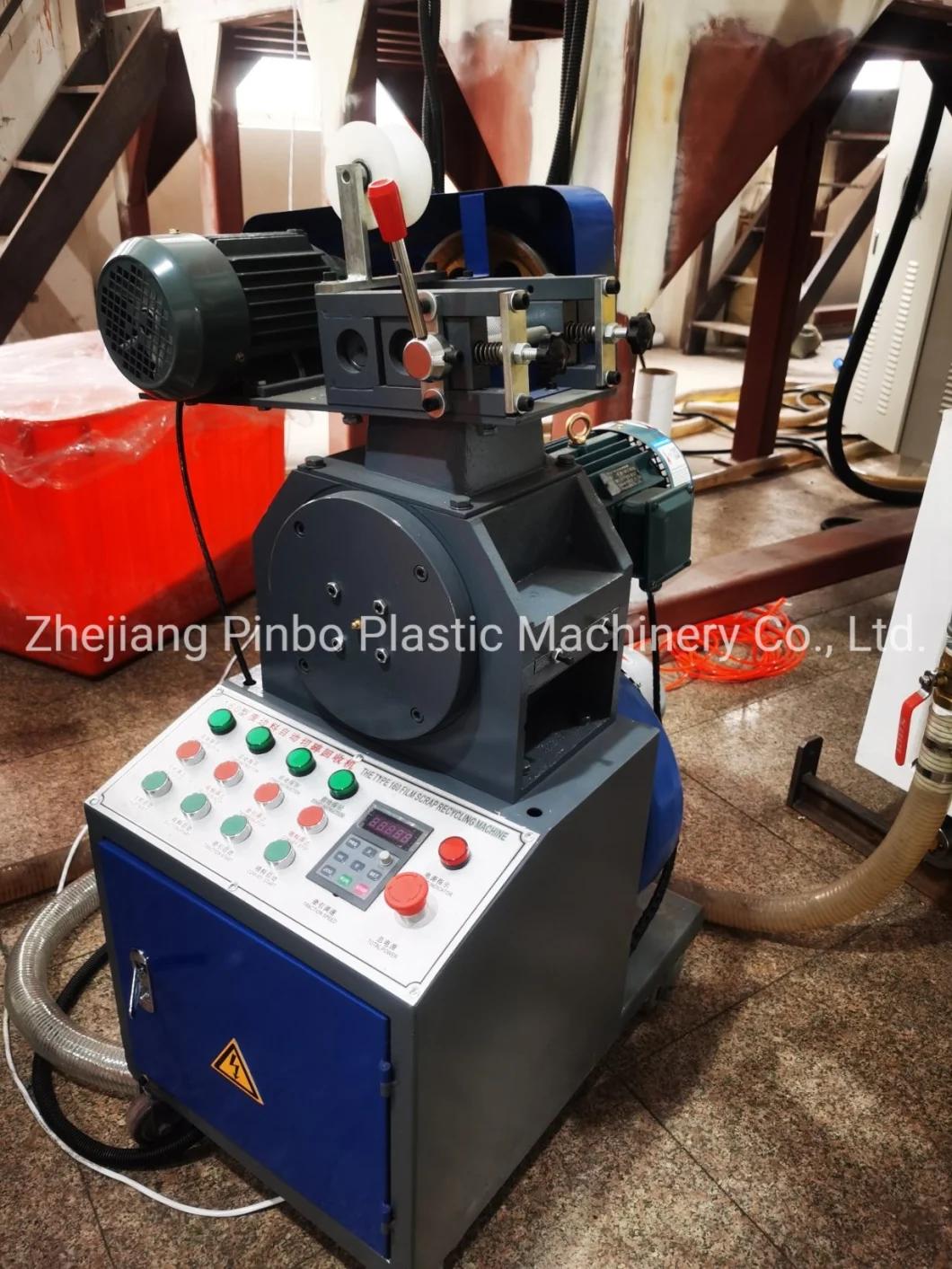

WASTE FILM CRUSHER:





Product Advantages
- Easy operating, long life, energy saving
- Stable and reasonable extrusion
- High quality T-die for excellent film evenness and stability
- Enhanced cooling system
(adopts 720 mm diameter primary cooling roller and 370 mm diameter secondary cooling roller) - Advanced oscillation (swing) system
- Highest winding speed (up to 200m/min) among similar stretch film machines
- High production capacity: up to 350 kgs/h at film thickness 23 microns and 150 m/min
- Optional System:
- vacuum pump
- Melting gear pump and PID controlling system
- Micro-computer temperature controller with touch screen for accuracy temperature control
- Automatic air shaft loading & off-loading to save man power
- Automatic screen changer with hydraulic station
Machine Details:
Extruder & T die


CONTROL BOX:


WASTE FILM CRUSHER:
