Basic Info.

Computerized Computerized Certification CE Electrical Parts Siemens, ABB, Schneider Motor Siemens Control by PLC Screen Touch PLC Brand Siemens Shaft Quantity Two Guarantee Period 1 Year Manufacturing Time 30 Days Delivery by Shipment Pack Film and Wooden Box Machine Color Customized Transport Package Plastic Film/Wooden Box Specification double shaft shredder Trademark Yusheng Origin Zhangjiagang City (Near Shanghai), China HS Code 84778000 Production Capacity 30 Sets Per Month

Product Description

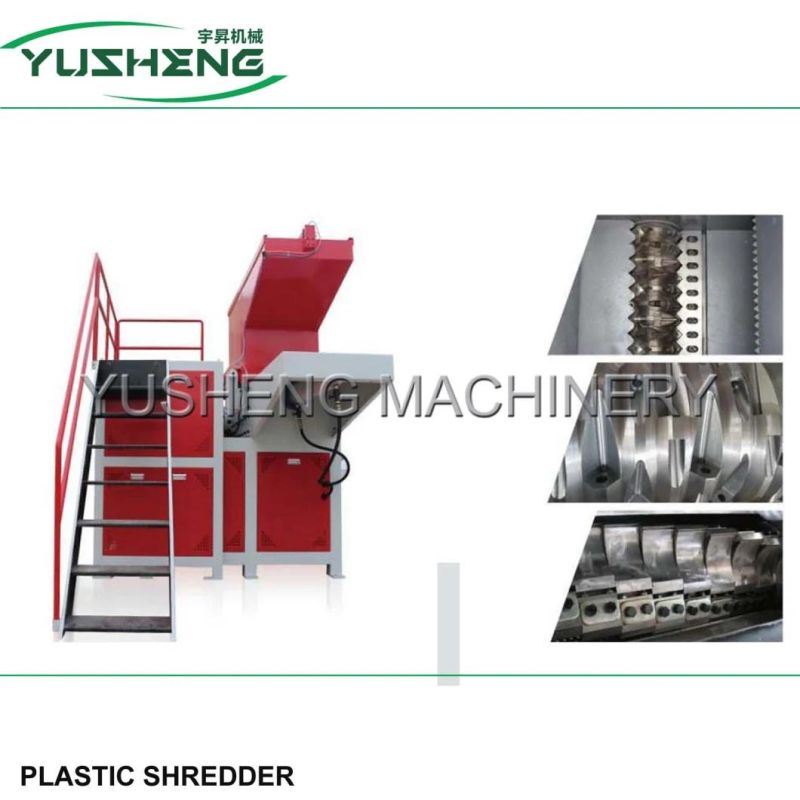

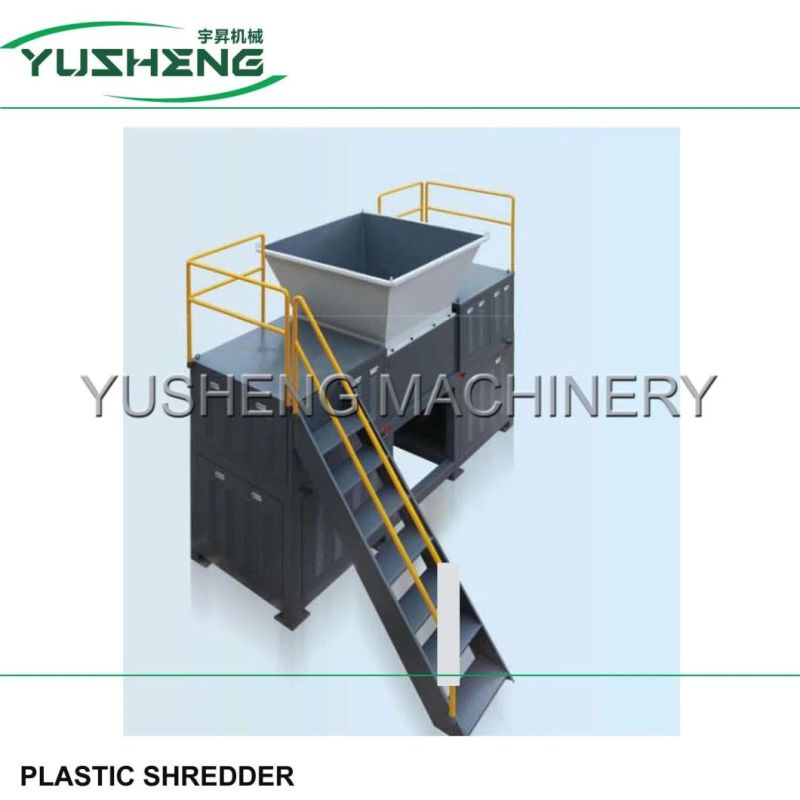

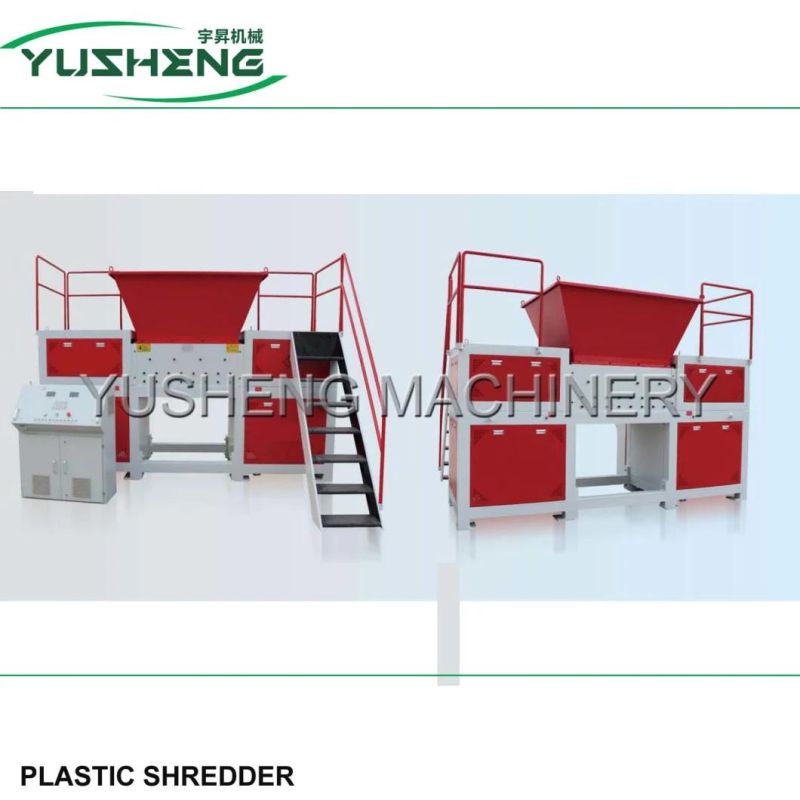

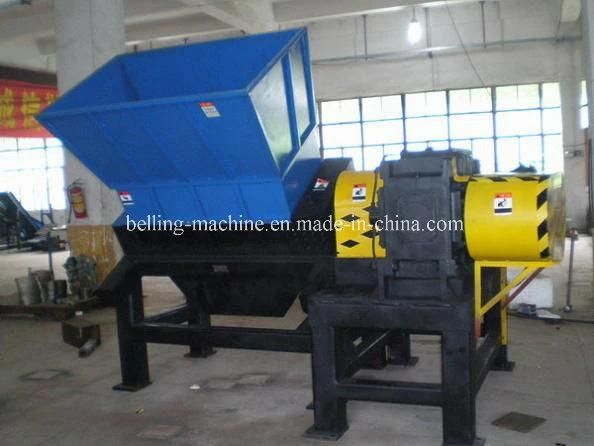

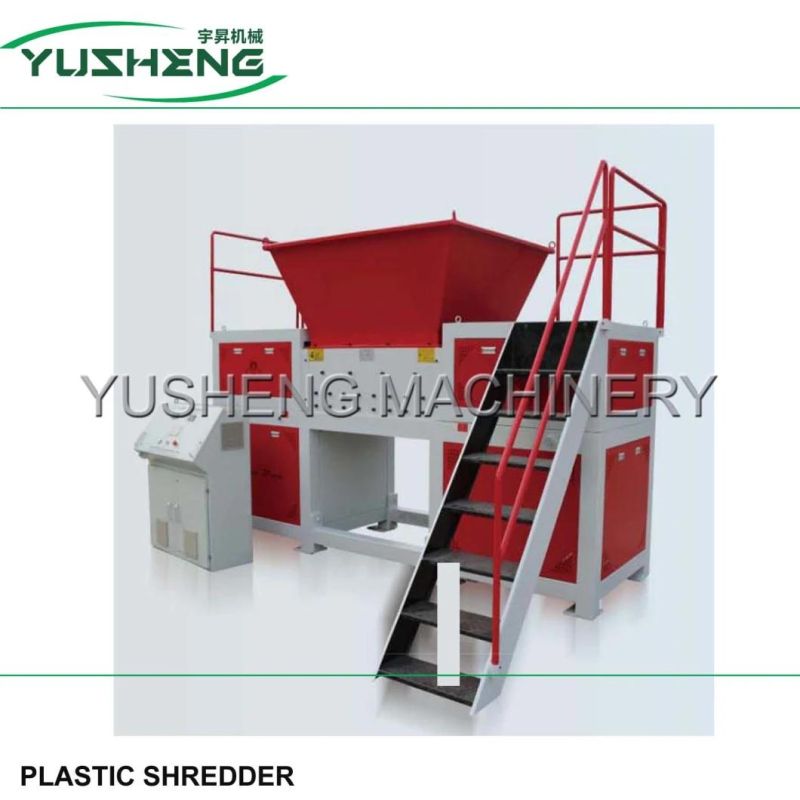

Wasted Pet Bottle/Film/Lampsheet Plastic Crusher



The cutting discs on the rotor of the shredder are arranged in such a way that a cutting disc on one shaft is positioned between two cutting discs on the opposite shaft. As a result, the material is shredded both lengthways and crossways.

It featured with:
1 Heavy-duty construction and efficient performance are determined by the precisely processed combined frame made of extra-thick plates
2 Wide angle, hexagon prism of power slewing axis; Large hopper with big caliber for feeding large material
3 It adopts PLC control system, automatic overload protection and auto reverse switch
4 The low rotation speed results in a particularly quiet shredding process with low levels of dust generation
5 It can be adjusted according to customer specific requirements for throughput volume, material to be processed, etc.

If any need, please contact me to my email or cell phone.

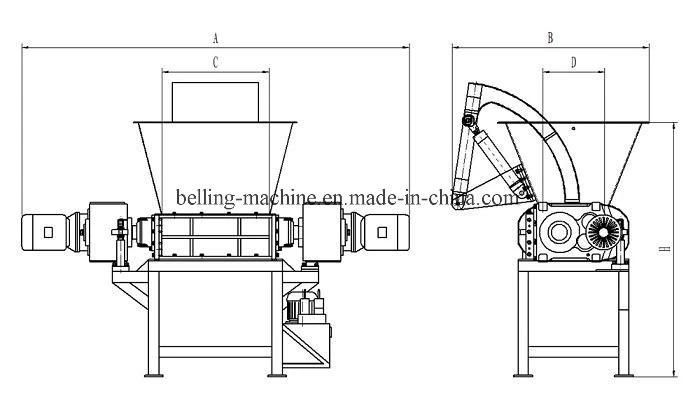

Model   Power   Feeding  mouth   Dimension   weight   SO21-40   5.5+5.5kw   400× 500mm   1270× 1120× 1330   1500kg   SO21-60   5.5+5.5kw   600× 500mm   1500× 1120× 1330   2000kg   SO21-80   7.5+7.5kw   800× 500mm   2000× 1120× 1330   2500kg   SO32-80    15+15kw   800× 780mm   2100× 1420× 1800   3500kg   SO32-100    18.5+18.5kw   1000× 780mm   2400× 1420× 1800   4000kg   SO32-120    22+22kw   1200× 780mm   2650× 1420× 1800   4800kg   SO40-100   22+22kw   1000× 950mm   2900× 1700× 2300   5000kg   SO40-120   30+30kw   1200× 950mm   3200× 1700× 2300   6000kg   SO40-148   37+37kw   1480× 950mm   3600× 1700× 2300   7500kg
