Hot Sale Frozen French Fries / Potato Chips Crisps Frying Making Machine

Fuzhou Qianxi Trading Co., Ltd.

Certification：CE, ISO9001, SGS
Power Source：Electric
Process：Thermal Processing
Automatic Grade：Automatic
Application：Frozen French Fries
Customized：Customized

Base Info

Model NO.：TUNE-T200
After-Sales Service Provided：Engineers Available to Service Machinery Overseas
Material：304 Stainless Steel
Price：Facotry Price
Transport Package：Standard Export Packaging
Trademark：TUNE
Origin：China
HS Code：8438600000
Production Capacity：150set,Month

Description

No.Machine nameApplication1HoistIt is used to preclean potato,
soften the potato skin, then hoist potatoes into washing and peeling machine.2Washing and peeling machineThis machine is used to peeling potatoes with hard brush and emery brush; Uneven and corrugated brush can peel the potatoes completely3Inspecting tableThis machine is used to pick out potato eyes and dark parts on potatoes by manually. There will be waste material holes and unpeeled potatoes return system.4Potato cutter
This machine is used to cut potato into sticks, french fries quality depends on fries length and shape, so cutting machine is very important5HoistIt is used to translate the finish cutter potatoes, then hoist potatoes into miscellaneous machine.6miscellaneous machine
This machine is used for impurity removal, to remove the fringes of the french fries, and then clean the equipment into the next step.7Rinsing line machine
This machine used to washing potato starch and protect potato from oxidation, keep its original color
8Blanching line machine
This machine is used to deactivate the activity of the oxidase, take off the starch, separate out the redusing sugar, also after blaching,it will get inner soft taste of french fries.9Air-dryer machine
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.10Hoist It is used to translate the finish Air-dryer potatoes, then hoist potatoes into Vibration dehydrator.11Vibration dehydrator
Used to remove water.Also have many holes at the end of machine to leak out small part and waste part potato.12Continuous frying line machineThis machine is used to unified fry sticks in short time.13Vibrating oil off machineThis machine is used to de-oil with the vibrating14Dried degreasing machineUse fan to blow off the water on stick surface, then deliver sticks into the freezer. 15HoistIt is used to between Dried degreasing machine and freezing machine 16Quick freezing machine
It is used to quick freezing the french fries in short time, fries center temperature at -18 ºC, Can the maximum keep the original flavor and product quality17Automatic packaging machineIt is used to pack the french fries automatically.
Technical Parameters

Equipment name	Dimensions	Electric Information
Hoister	2000x800x1600mm	0.55KW/ 380V/ 50HZ
Washing and peeling machine	3400x900x1400mm	4.7KW/ 380V/ 50HZ
Hoister	2000x800x1600mm	0.55KW/ 380V/ 50HZ
Washing and peeling machine	3400x900x1400mm	4.7KW/ 380V/ 50HZ
Inspecting table	4000x800x900mm	0.75KW/ 380V/ 50HZ
Potato cutter	950x800x950mm	1.1KW/ 380V/ 50HZ
Water bucket elevator	2200x1000x1500mm	220010001500mm
Miscellaneous machine	3000x1000x1300mm	2.2KW/ 380V/ 50HZ
Rinsing line machine	5000x1200x1300mm	6.6kw/380v/50Hz/3P
Blanching line machine	6000x1200x1400mm	120kw/380v/50Hz/3P
Vibration de-water machine	1800x1000x900mm	0.5kw/380v/50Hz/3P
Air-dryer machine	5000x1200x1400mm	11kw/380v/50Hz/3P
Hoister	1500x800x1300mm	0.75KW/ 380V/ 50HZ
Continuous frying line machine	6000x1200x2400mm	140kw/380v/50Hz/3P
Vibration de-oil machine	1500x1000x1300mm	0.5KW/ 380V/ 50HZ
Air cooling dehydrator	5000x1200x1600mm	11KW/ 380V/ 50HZ
Hoister	2000x1000x2200mm	0.75KW/ 380V/ 50HZ
IQF Tunnel Freezer	8100x3720x2900mm	88.3KW/ 380V/ 50HZ
Refrigeration Compressors Systems	4500x2500x2300mm	80KW/ 380V/ 50HZ
Automatic weighing and packing machine	3500x3000x2800mm	4.5KW,380V/50HZ

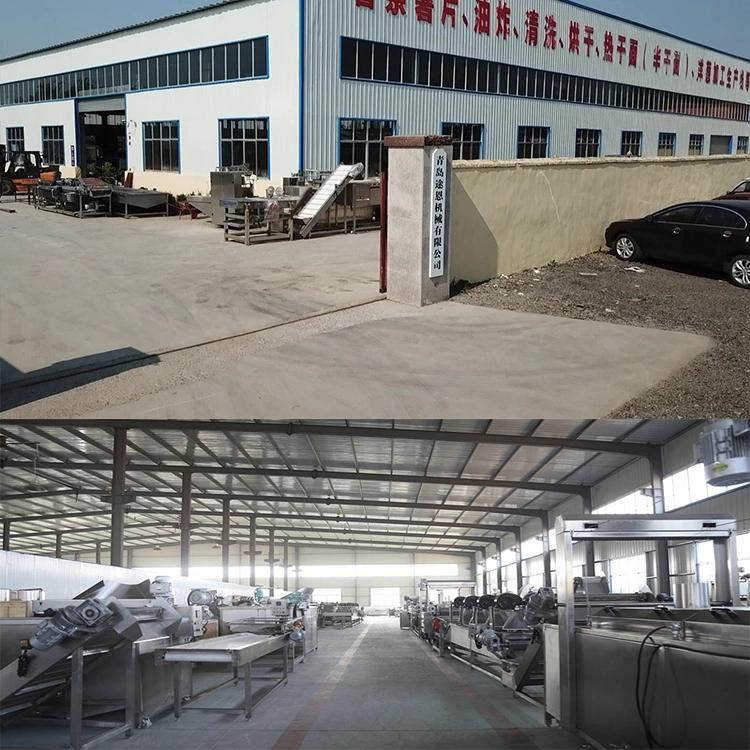

Factory Overall

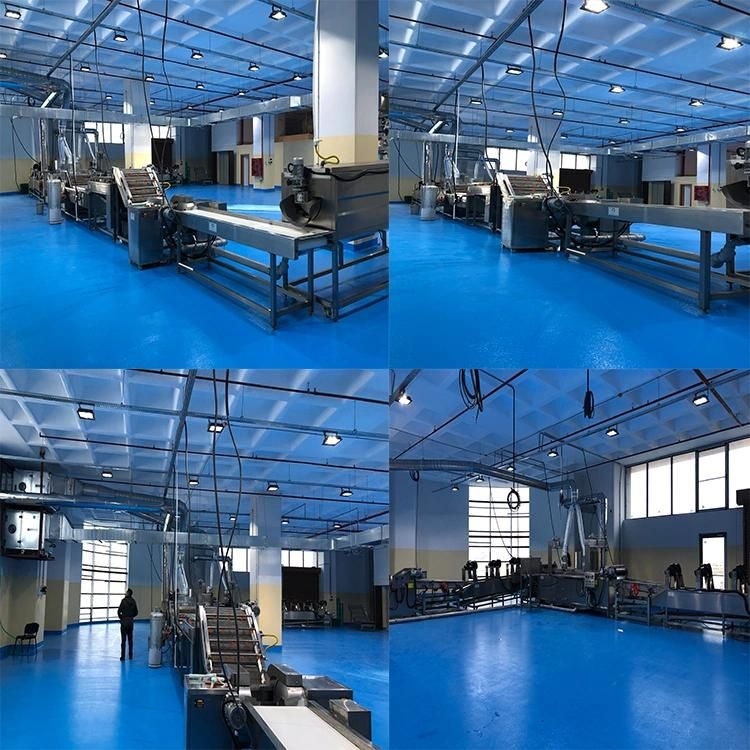

Installation example

Customer Visiting

Delivery&Container Loading

FAQ

Q: Are You A Factory or A Trading Company?
A: We are the manufacturer with professional produce experience on Food Machinery more than 15 years.We own both of Domestic and international sales department.We provide perfect OEM and after-sale service.
Q: How do I know about the details and quality of your machine?
A: First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.
Q:How do I know that the machine I ordered at your company is working well?
A:Before delivery,We will test your machine and send a test video to you.
Q:How should I do if meet some trouble while using?
A:We provide lifetime warranty service,We can send you components to you for free,we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.

We are looking forward to receive your good news, pls feel free to contact us ~~
