Basic Info.

Model NO. SR1100 Automation Automatic Computerized Computerized Certification CE, ISO9001:2008, SGS/BV External Dimensions(mm) 1700*2500*2000mm Transport Package Wooden Package/Film Package/According to Customer Specification CE/ISO9001/SGS Trademark SOYU Origin China HS Code 84778000 Production Capacity 1000sets/Year

Product Description

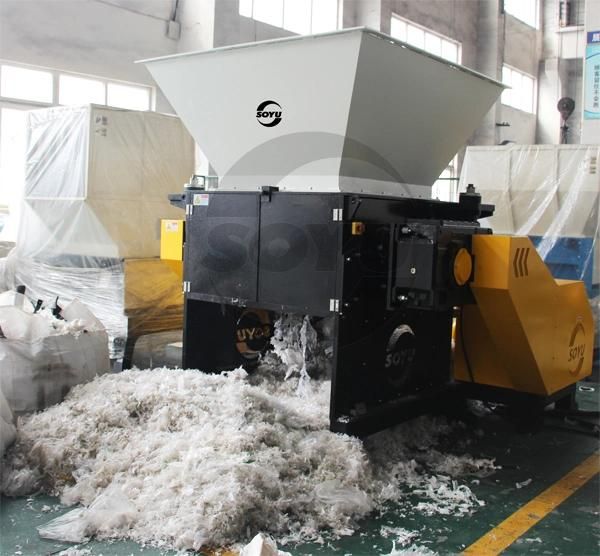

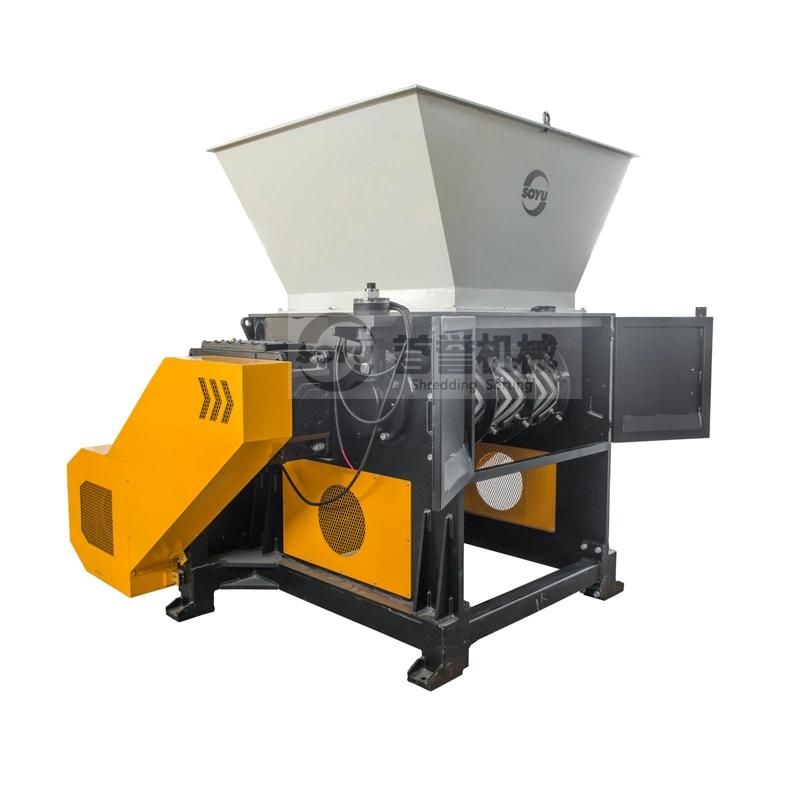

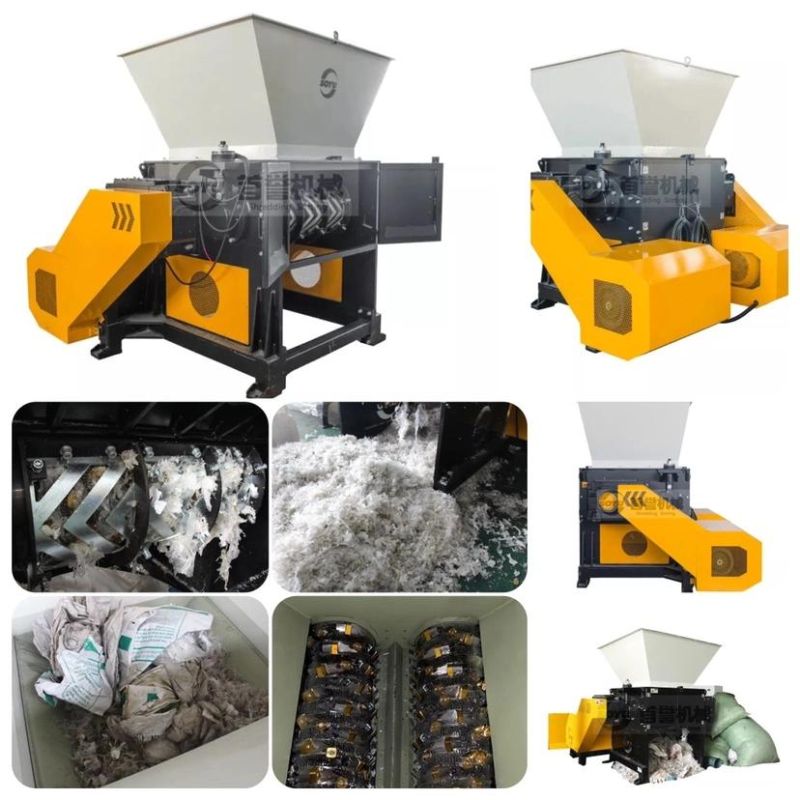

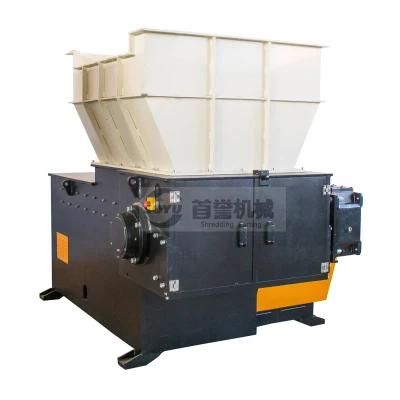

Plastic Sheet Shredder Film Shredder

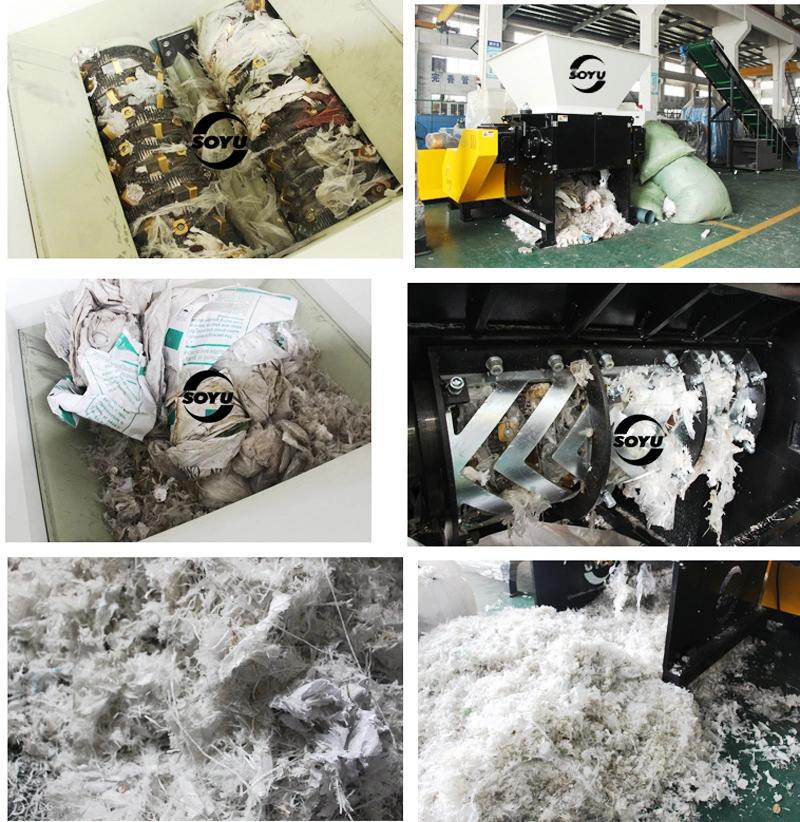

This machine is specially designed for PP/PE waste film, snakeskin woven bag, ton bag, waste paper. No winding, the broken particles can be controlled, the output can reach 500-6000kg per hour according to the size of the model, and the discharging size is about 40-100mm.



Application scope:

Thin film



Woven bag



Tons of bagging



Garbage bags

Model	SR600	SR750	SR900	SR1100
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	500	820	820	820
Rotor diameter(mm)	Φ220	Φ400	Φ400	Φ400
Number of rotor blades(pcs)	23	44	52	66
Number of fixed blades(pcs)	4	6	6	8
Discharge height(mm)	500	610	610	610
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	18.5	37	45	55~75
Hydraulic power(kw)	1.5	2.2	2.2	5.5
Cutting chamber dimensions(mm)	540x600	830x708	830x840	830x1071
Overall dimensions(LxWxH)(mm)	1800x1350x1700	2810x2000x2115	2810x2100x2115	2810x2650x2115
Weight(kg)	Approx 1600	Approx 4460	Approx 4560	Approx 5464

Model	SR1400	SR1600	SR2100	SR2500
Main shaft speed(rpm)	73	73	73	73
Ram travel(mm)	820	1000	1000	1200
Rotor diameter(mm)	Φ400	Φ480	Φ480	Φ660
Number of rotor blades(pcs)	80	94	122	150
Number of fixed blades(pcs)	10	12	16	20
Discharge height(mm)	610	950	950	950
Screen holes diameter(mm)	40	40	40	40
Motor power(kw)	75~90	2x55~2x75	2x75~2x90	2x90~2x110
Hydraulic power(kw)	5.5	7.5	7.5	11
Cutting chamber dimensions(mm)	830x1302	1000x1533	1000x1995	1200x2457
Overall dimensions(LxWxH)(mm)	2810x2890x2115	3475x4100x2700	3475x4900x2700	3475x5400x2700
Weight(kg)	Approx 6200	Approx 10800	Approx 13000	Approx 16000
