Description of Blow Molding Machine1.Energy saving
2.Easy to operate, just need feeding preform, other work is automatic.
3.Suitable for hot filling, PP, PET bottle blowing
4.Suitable for different preform neck size, it can change preform jigs very easily.
Mold replacement very easily.
5.Oven design in reasonable, adopt blowing-type, water cooling, air cooling all have. 6.Suitable for hot environment to work, the preform neck can't distortion.
7.The heating lamp adopt infrared quartz lamp, not easy to damager, it is different than 8.semi-auto blowing machine lamp. So it no need frequently to change lamp. The lamp life is long, even it is broken, it can use also.
9.Our hand feeding stretch blow molding machine can add autoloader+manipulator to became fully automatic.
10.Our Blow Moulding Bottle Machine is more safety and stabilization.
11.Our clamping unit adopt clooked arm configuration self-lubricating system. So very stabilization and no noise. Technical Data of Blow Molding Machine

General Information	RM-4000D
Clamping Force	370KN
Clamping Stroke	120~175mm
Max Strecthing Stroke	370mm
Bottom Moving Stroke	70mm
Number of Cavities	4
Theoretical Output	4000BPH
Max Mould Thickness	250mm
Space Between Tie Bras	640*380mm
Voltage Standard	380V 3PH 50Hz or special order
Number of Heating Zone	4 Sections
Total Power	45KW
Max Volume of Contanier	1.5L
Neck Diameter Range	16~38mm
Max Diameter of Contanier	110mm
Max Height of Contanier	380mm
Low Air Compressor	10Bar
High Air Compressor	30~40Bar
Blow Molding Machine	2.55*1.5*2.0m
Preform Auotloader	1.1*1.2*2.2m
Net Weight	3.5T

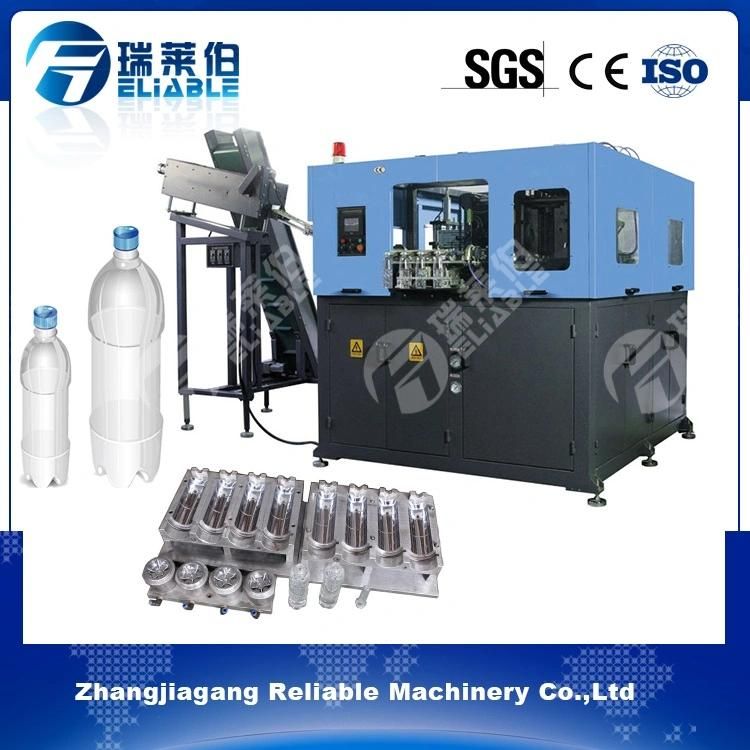

SUS304 Automatic PET Bottle Blowing / Blow Molding Machine

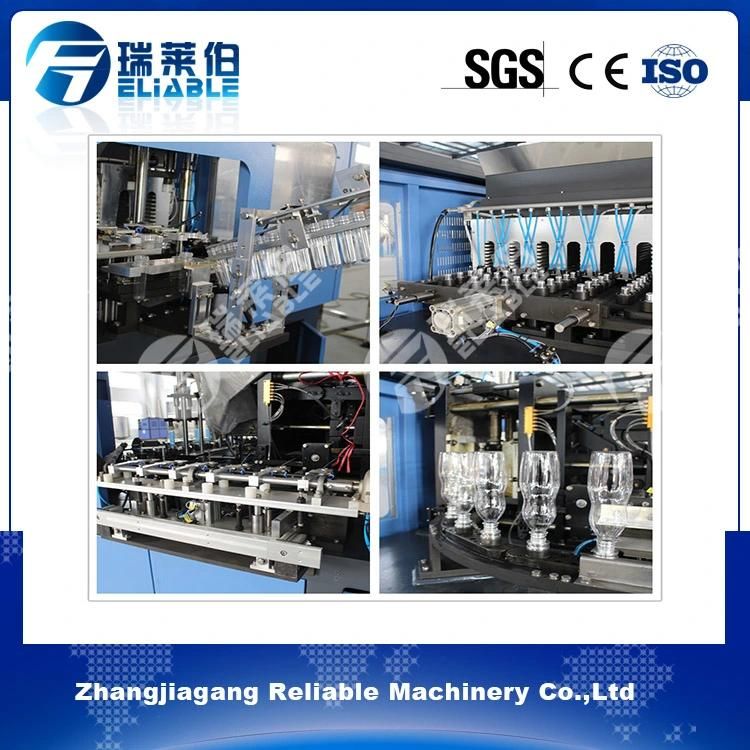

 Pictures Show of Blow Molding Machine
SUS304 Automatic PET Bottle Blowing / Blow Molding Machine
 Service of Blow Molding Machine Your inquiry related to our product & price will be replied within 24hours
 Well-trained & experienced staff are to answer all your inquiries in English and Chinese
 Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
 OEM & ODM projects are both available
 Your business relationship with us will be confidential to any third party.
 Good after-sale service offered, please get back to us if you got any questions. FAQ of Blow Molding MachineQ1:What kinds of product you supply?
A1:Beverage filling machine for water,juice and carbonated drink;Packing system;PET bottle blowing machine;Injection molding machine.etc.

Q2:How can we get your products?
A2:Find our products through Reliable Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, reliable-machinery.en.made-in-china.com etc

Q3:How to tell you our enquiry?
A3:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your inquiry.

Q4: Where is your factory?
A4: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi. If you fly to Shanghai or Wuxi, we can pick you up to visit our factory.

Q5: Can you send engineer to our local place for installation?
A5: Yes, If you need, we will arrange engineer for you, and we can provide turn-key project.
SUS304 Automatic PET Bottle Blowing / Blow Molding Machine
 Company Introduction of Blow Molding MachineZhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China. Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
