Drilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for Sale

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Model

HQZ-260L

Total Weight(T)

6.4

Dimensions(mm)

4100*1900*2600

Drilling Diameter(mm)

140-300

Drilling Depth(m)

260

One-time Advance Length of the Drill(mm)

3000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

250

Working Air pressure(Mpa)

1.7-3.0

Air Consumption(m³/min)

17-35

Main Power(kw)

73/Yuchai

Rotation(rpm)

40-70

Rotary Torque(Nm)

7000-9000


 Detail Photos

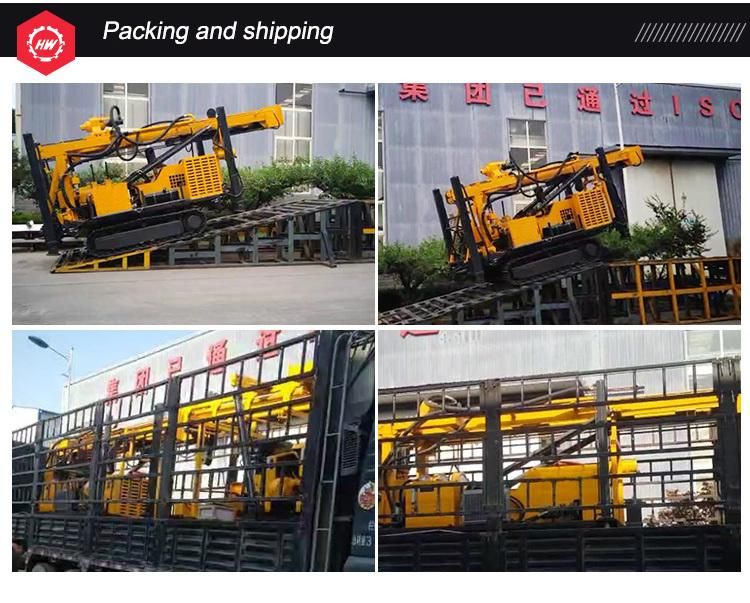

Drilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for SaleDrilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for SaleDrilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for SaleProduct ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

Drilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for SaleCompany Profile
Drilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for SaleDrilling Depth High Quality Mobile Water Well Drilling Rig Machine Hqz-260L for Sale
