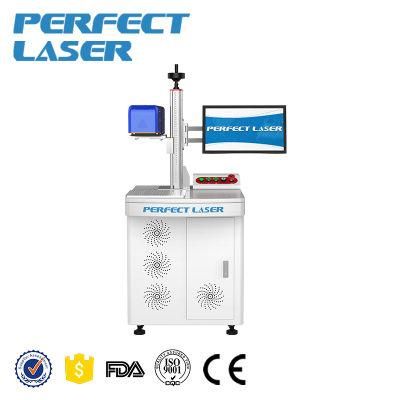

• Model NO.：PEDB-400F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Laser Source：Fiber Laser Device
• Laser Life Time：100, 000 Hours
• Laser Head：Galvanometer Head
• Laser Power：10W,20W,30W,50W
• Working Table：110*110mm,150*150mm...
• Scanning Speed：10000mm,S
• Voltage：220V, 50Hz
• Humidity：45~85% (No Condensation)
• Repetition Frequencyt20kHz-60kHz：20kHz-60kHz
• Brand：Perfectlaser
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO9001&CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456100090
• Production Capacity：3000 Units, Year

The laserThe machine modelPEDB-400F-30PEDB-400F-50PEDB-400F-100The output power30W50W100WPulse energy1MJ1MJ1MJRepetition frequency30K-200KHZ50K-200KHZ5K-200KHZThe laser wavelength,1064nm1064nm1064nmProcessMarking the scope110mm*110mm110mm*110mm175mm*175mmThe adjustable range175mm*175mm175mm*175mm300mm*300mm300mm*300mm300mm*300mmFocusing range≤±20mm≤±20mm≤±20mmMarking way

XYZ Triaxial

dynamic focusing

XYZ Triaxial

dynamic focusing

XYZ Triaxial

dynamic focusing

Minimum line width0.03mm0.03mm0.03mmSoftwareSpeed≤10000mm/s≤10000mm/s≤12000mm/sSupport fontTrueType font,AUTOCAD single font,customize fontOne dimension barcodeCODE39/CODE128/ITF/CODABAR/EAN/UPC etc.Two dimension barcodeQR/PDF417/DataMatrix(ECC200)etc.The input filePLT/DXF/DWG/SVG/STL/BMP/JPG/JPEG/PNG/TIF etc.

The whole

machine

Environmental requirements

Temperature:10ºC~35ºC Humidity:5%~75%The input powerSingle phase110V/220VOptional /50~60HZ

The machine power

consumption

≤750W≤1200W≤1500WCooling wayAir coolingAir coolingAir coolingThe whole machine size1400mm×850mm×1699mmControl interfacePCI-Express/USB2.0 Optional

After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.

How to protect my order?
Trade Assurance is a free payment protection service for buyers.
The service is offered by participating suppliers, and is designed to protect your payment

if your order is not shipped on time, or if the pre-shipment product quality (optional) does

not match the terms agreed on your contract. Your payment is protected up to 100% of an

amount - agreed between you and the supplier - called the Trade Assurance Order Amount.

FAQ

Q1.: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q2.: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q3.: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q4.: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
