• Model NO.：stone cutting tools
• Advantage：Dry and Wet
• Price：Cheap
• Authentication：ISO9001-2008, SGS, TUV
• Graininess：800#
• Thickness：20mm
• Kind：Stone Sawing Machine
• Manufacturing Arts：Sinter
• Customized：Customized
• Brand：Wanlong
• Saw Blade External Diameter：All Kinds
• Transport Package：Wooden
• Specification：dia: 105-3500mm
• Trademark：wanlong
• Origin：Quanzhou City
• Production Capacity：200000pieces,Month

Basic Info.

Model NO. stone cutting tools Advantage Dry and Wet Price Cheap Authentication ISO9001-2008, SGS, TUV Graininess 800# Thickness 20mm Kind Stone Sawing Machine Manufacturing Arts Sinter Customized Customized Brand Wanlong Saw Blade External Diameter All Kinds Transport Package Wooden Specification dia: 105-3500mm Trademark wanlong Origin Quanzhou City Production Capacity 200000pieces/Month

Product Description

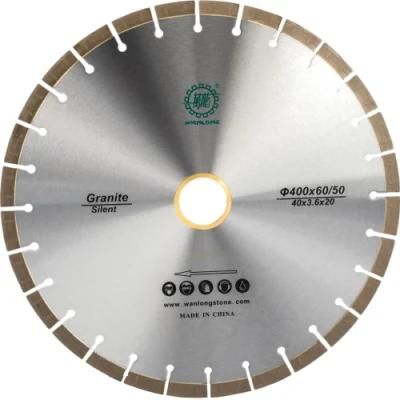

We are the  diamond blades manufacturers Our 14 inch saw blade is applicable for cutting processing, good safety and definition. And it is more suitable for granite, marble,limestone,basalt etc.  Special formula for different cutting request.Various sizes can be chosen from 110mm to 3500mm . If you have any interested in our products, please contact us.

Application :

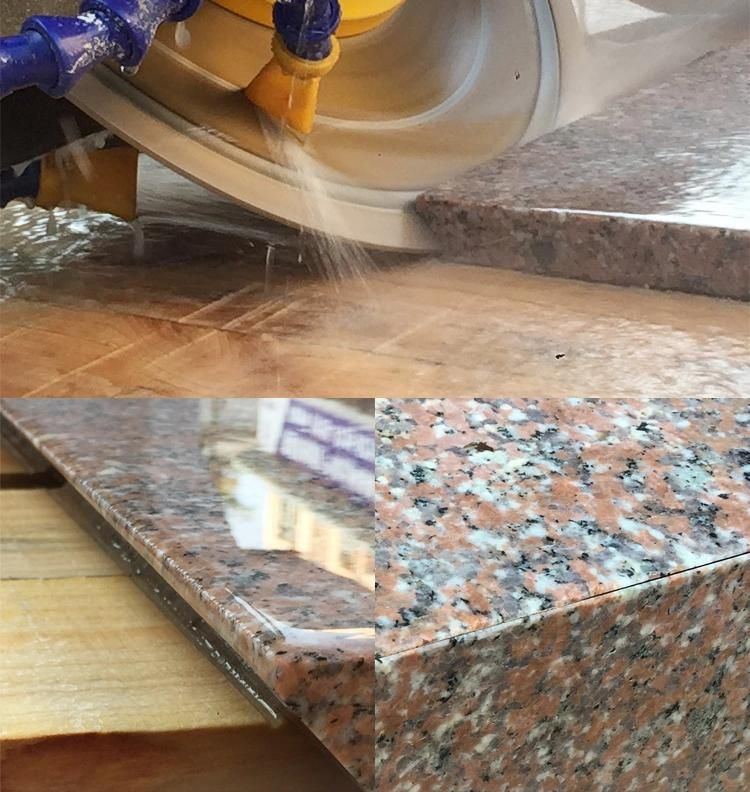

marble,granite,concrete,asphalt,ceramic tile,steel,brick,wall,etc.

Features :
1.fast cutting with long life.
2.perfect performance.
3.excellent quality for smooth cut.
4.strict product quality inspection processes and Sophisticated detection equipment for blades.

Diameter(mm)	Segment Dimension(mm)	Born/mm	No.
105	20×1.8×7.5	16,20 22.23 25.4,50	8
115	20×1.8×8.0	16,20 22.23 25.4,50	9
125	20×2.0×8.0	16,20 22.23 25.4,50	10
150	20×2.0×7.5	16,20 22.23 25.4,50	10
180	20×2.2×8.0	16,20 22.23 25.4,50	14
200	20×2.2×8.0	16,20 22.23 25.4,50	14
230	20×2.4×8.0	16,20 22.23 25.4,50	16
250	20×2.4×8.0	16,20 22.23 25.4,50	18
300	20×2.6×8.0	16,20 22.23 25.4,50	22
350	20×2.8×8.0	16,20 22.23 25.4,50	24



Diameter(mm)	Steel core(mm)	Head size(mm)	No.	Shape	Application
400	2.6	40×3.8/3.4×15(20)	28	RT SPLITTING	Granite
450	3.0	40×4.2/3.8×15(20)	32	RT SPLITTING	Granite
500	3.0	40×4.2/3.8×15(20)	36	RT SPLITTING	Granite
550	3.6	40×5.0/4.4×15(20)	40	RT SPLITTING	Granite
600	3.6	40×5.0/4.4×15(20)	42	RT SPLITTING	Granite
650	4.0	40×5.4/4.8×15(20)	46	RT SPLITTING	Granite
700	4.0	40×5.4/4.8×15(20)	50	RT SPLITTING	Granite
750	4.0	40×5.4/4.8×15(20)	54	RT SPLITTING	Granite
800	4.5	40×6.0/5.4×15(20)	57	RT SPLITTING	Granite
850	4.5	40×6.0/5.4×15(20)	58	RT SPLITTING	Granite

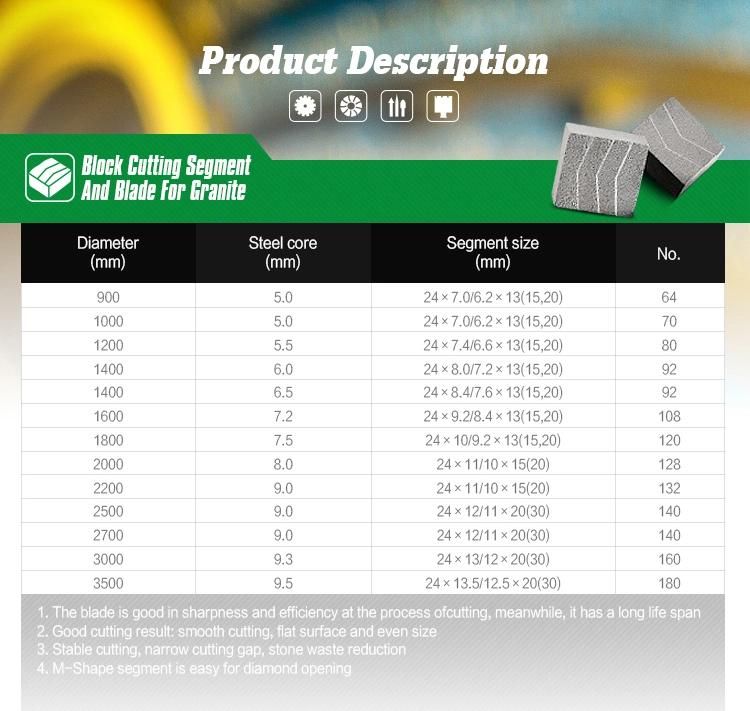

Diameter(mm)	Steel core(mm)	Head size(mm)	No.	Shape	Application
900	5.0	24×7.0/6.2×13(15,20)	64	Z3T/Z3T-M (conical)	Granite
1000	5.0	24×7.0/6.2×13(15,20)	70	Z3T/Z3T-M (conical)	Granite
1200	5.5	24×7.4/6.6×13(15,20)	80	Z3TZ3T-M (conical)	Granite
1400	6.0	24×8.0/7.2×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1400	6.5	24×8.4/7.6×13(15,20)	92	Z3T/Z3T-M (conical)	Granite
1600	7.2	24×9.2/8.4×13(15,20)	108	Z3T/Z3T-M (conical)	Granite
1800	7.5	24×10/9.2×13(15,20)	120	Z3T/Z3T-M (conical)	Granite
2000	8.0	24×11/10×15(20)	128	Z3T/Z3T-M (conical)	Granite
2200	9.0	24×11/10×15(20)	132	Z3T/Z3T-M (conical)	Granite
2500	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
2700	9.0	24×12/11×20(30)	140	Z3T/Z3T-M (conical)	Granite
3000	9.3	24×13/12×20(30)	160	Z3T/Z3T-M (conical)	Granite
3500	9.5	24×13.5/12.5×20(30)	180	Z3T/Z3T-M (conical)	Granite

Other specifications are available upon request.
