Basic Info.

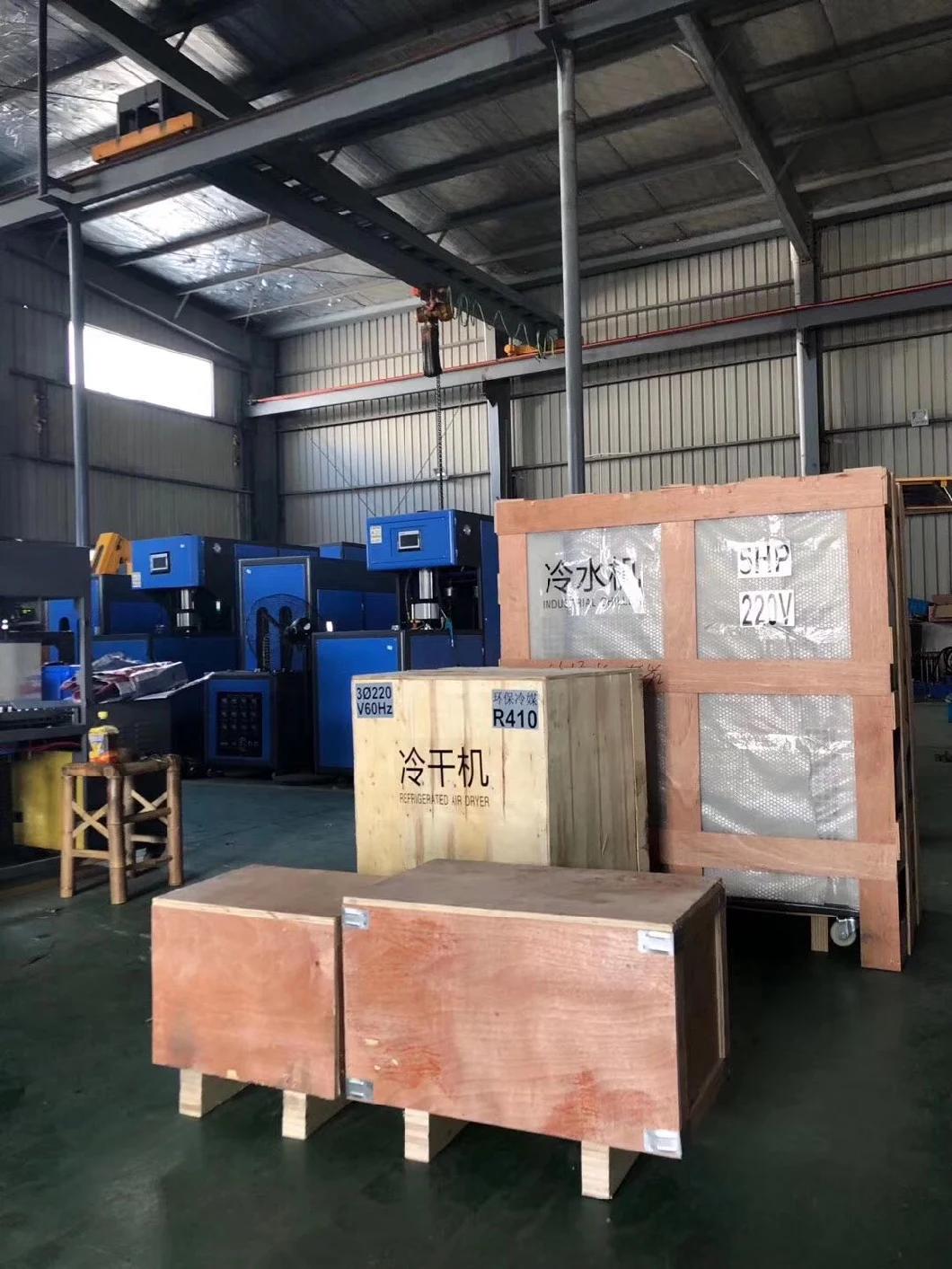

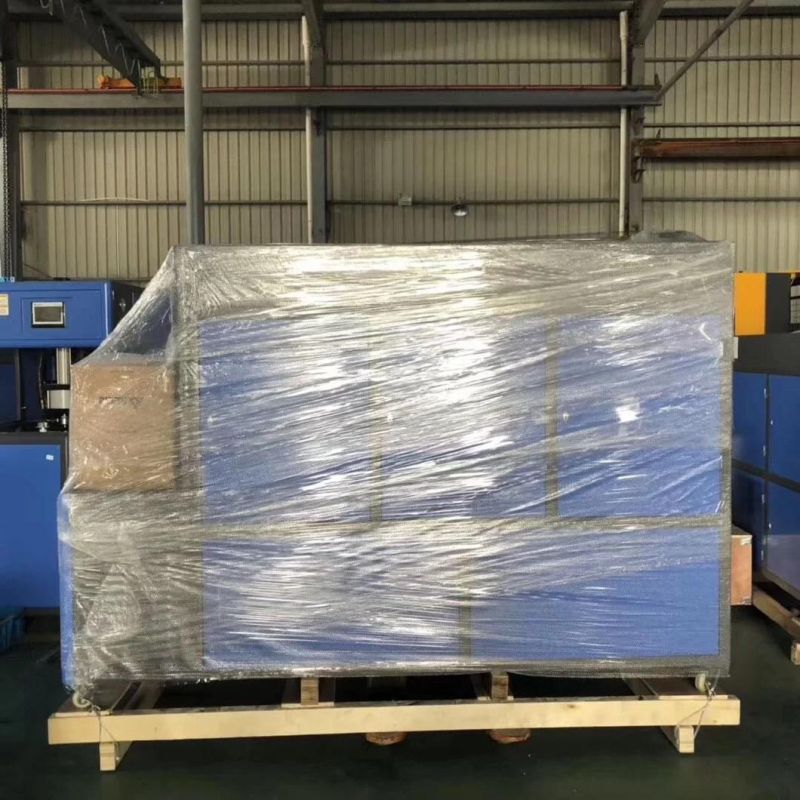

Model NO. TS-10L Transport Package Wooden Case Trademark TAISO Origin China HS Code 8477309000 Production Capacity 50sets/Month

Product Description

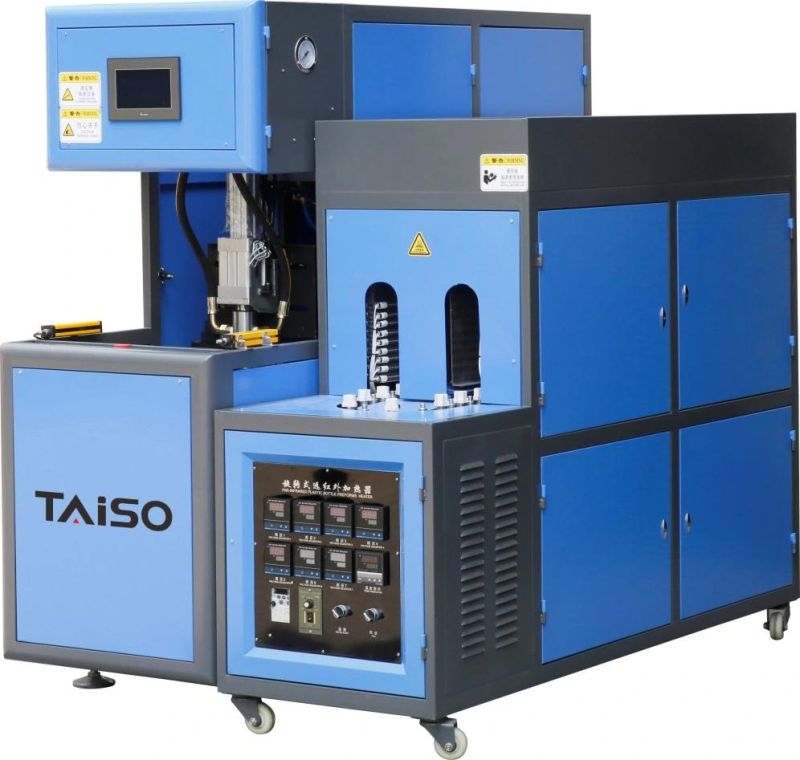

TS-10L Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 5L to 10L bottles
2. Output capacity up to 300 bottles/hour for 5L using one cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.

Model	TS-10L (1 Blower & 1 Heater)
Max. Volume	10L
Output	300-600BPH
Number of Cavities	1 Cavity
Neck diameter	18-120mm
Max. diameter	180mm
Max. Bottle height	380mm
Mold thickness	130-330mm
Clamping stroke	260mm
Rated power	25KW
Power consumption	12-15KW
Blower size	1950*650*1700mm
Heater size	1700*600*1350mm
Weight	1200kgs
