• Model NO.：GZJ-B2
• Turn-Key Project：Automation
• Transport Package：Wooden Packing
• Specification：as customer capacity
• Trademark：GENYOND
• Origin：China
• HS Code：84386000
• Production Capacity：800 Sets Per Year

Basic Info.

Model NO. GZJ-B2 Turn-Key Project Automation Transport Package Wooden Packing Specification as customer capacity Trademark GENYOND Origin China HS Code 84386000 Production Capacity 800 Sets Per Year

Product Description

Description:

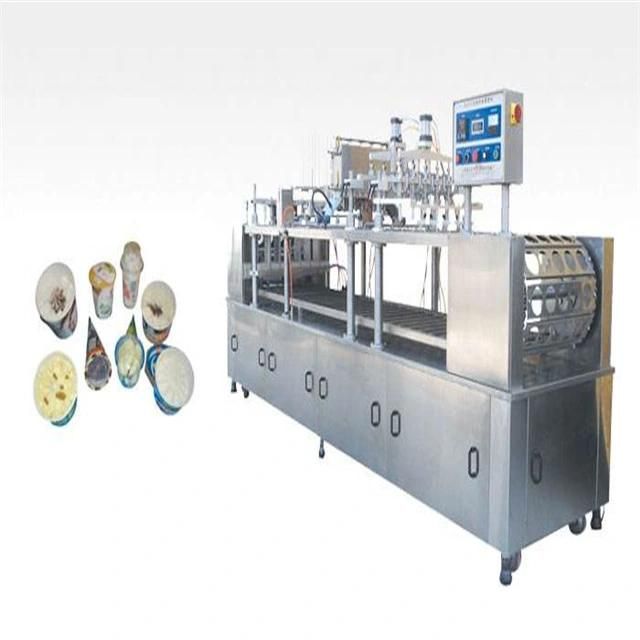

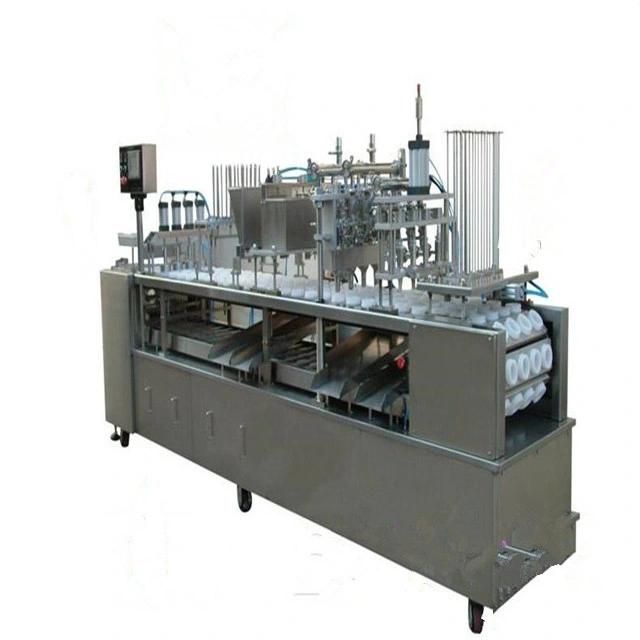

Automatic ice cream filling machine is specially designed for filling ice cream into cones, cups, one color or multiple colors and fancy novelties ice cream such as topped novelties and spiral novelties.
And its multiple functions include: cups or cones leveling;primary filling, second filling(spiral);chocolate or jam dipping, nuts spraying, paper lids dropping (pressing-sealing paper lids for egg-roll cone or heat-sealing paper lids for paper cups etc.); jack-up.
This machine use the imported PLC for control system, ensuring it's stable and reliable performance while it is equipped with imported man-machine interface touch screen for operation, by which the indication for the automatic failure check is easy and visual.


Technical parameter:

No.	parameter	Unit	Specification
1	Production capacity	Pcs/h	2000-6000
2	Voltage	Phase/V/Hz	3/380/50
3	Power	kw	2
4	Mould bar number	pcs	50
5	Air source pressure	Mpa	0.6-0.7
6	Dimension	mm	3000*920*1800
7	Weight	Kg	950
