• Model NO.：FLYING-UV-3,5,10
• Laser Wavelength：Deep Ultraviolet
• Laser Classification：Semiconductor Laser
• Type：Semiconductor Laser Marking Machine
• Marking Method：Scanning Marking
• Working Accuracy：0.001mm
• Wavelength：355nm
• Laser Power：UV 3W 5W 8W 10W
• Engraving Depth：1.2mm
• Transport Package：Wood
• Specification：max 300x300mm
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：50sets,Month

Basic Info.

Model NO. FLYING-UV-3/5/10 Laser Wavelength Deep Ultraviolet Laser Classification Semiconductor Laser Type Semiconductor Laser Marking Machine Marking Method Scanning Marking Working Accuracy 0.001mm Wavelength 355nm Laser Power UV 3W 5W 8W 10W Engraving Depth 1.2mm Transport Package Wood Specification max 300x300mm Trademark FLYING Origin China HS Code 8456100090 Production Capacity 50sets/Month

Product Description

UV JPT Huaray 5W conveyor flying UV laser marking date code machine for engraving perfumes glass plastic

Ultraviolet laser marking machine belongs to a series of laser processing technology. It uses 355nm UV laser as the light source.

The machine uses third-order intracavity frequency doubling technology to compare with infrared laser (pulsed fiber laser), 355 ultraviolet focusing spot. Small, can greatly reduce the mechanical deformation of the material and has little influence on the processing heat, because it is mainly used for superfine marking, engraving, cutting and the like.

It is especially suitable for applications such as marking of food and pharmaceutical packaging materials, micropores, high-speed division of glass materials, and complex graphic cutting of wafer wafers.

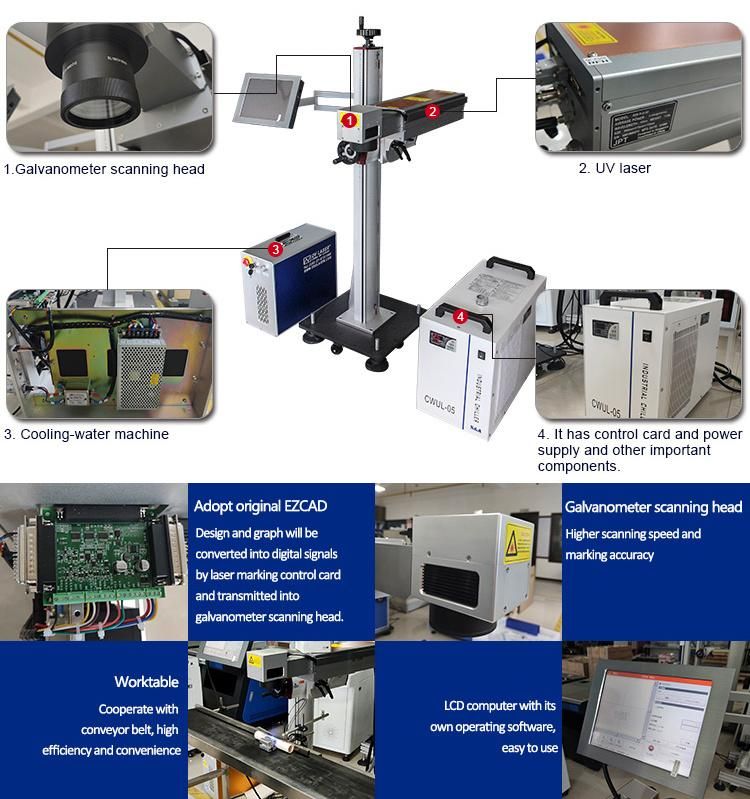

Main features of UV laser marking machine:

Laser (light source): 355 nm UV laser

Small size, 20,000 hours maintenance-free (theoretical 20,000 hours of service life).

The focused spot is extremely small, and the processing heat affected zone is small (cold light), making the material heat-receiving area smaller. Not susceptible to heat deformation, ultra-fine marking, special material marking.

Low cost of use, better beam quality, high efficiency, low power consumption, more energy saving and environmental protection.

Can be applied to high-end market, ultra-fine marking environment, cosmetics, pharmaceuticals, LCD liquid crystal, electronic components, communication equipment, food and medicine packaging, glass division, electronic components, metal jewelry marking.

Specifications:

Item No.	FLYING-UV-3/5/10
Laser output power	≥3W@30KHZ
Machine Power	<1KW
Laser wavelength	355nm
Laser Repetition Frequency	≤50KHz
Standard marking area	110*110mm
Marking area	Option 70*70mm/150*150mm/175*175mm/200*200mm/300*300mm/
Marking depth	0.01-0.3mm(Adjustable according to material)
Marking speed	≤8000mm/s
Repeatability accuracy	±0.01mm
Beam quality(Square meter)	<2
Positioning accuracy	≤0.02mm
Minimum character	0.2mm
Minimum line width	0.015-0.1mm
Minimum distance of XYZ worktable	150*100*300mm(option 300*200*300mm)
Marking and positioning method	Red Light Indicator Location
Modulation frequency	20KHZ-80KHZ
Laser medium	Nd3+,Yag
Laser type	YAG Semiconductor End Pump
Laser Repetition Frequency	≤50KHz
Power	220V/50Hz/20A, 380V/50Hz/20A
Laser continuous working time	24H
Cooling mode	Water cooling

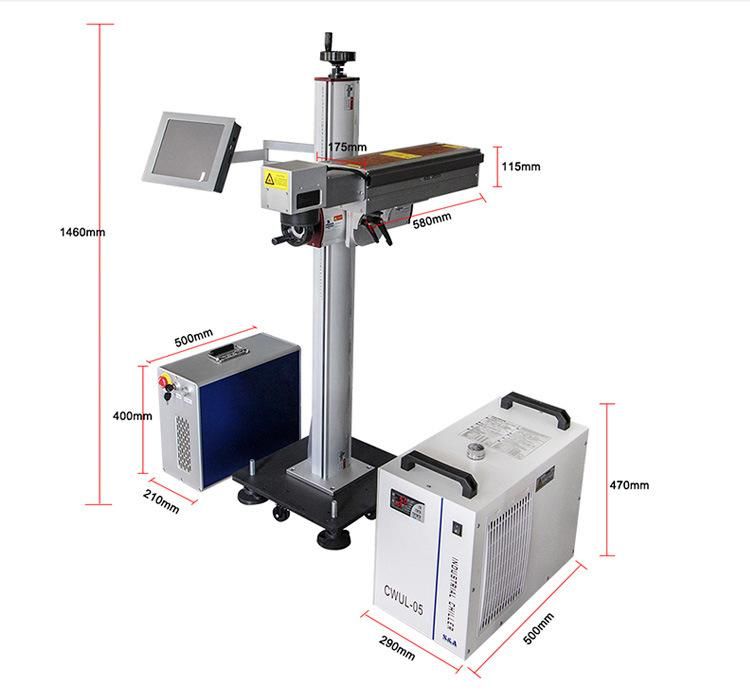

Machine size	880*850*700mm(Reference)
Control system	JCZ laser
File Support Format	BMP, AI, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DMG, DXF ect.

Applicable to all metal materials and most non-metallic materials: coding, punching, laser tearing, stripping, stripping, rust removal, deep carving, fine micromachining, anodizing, oxygen-permeable conductive surface treatment And other applications;

Main applications: film etching, glass marking, material micromachining, wafer cutting, laser rapid prototyping, etc.


1. Machinery industry: hardware tools, clutches, bearings, pistons, piston rings, steel pipes, steel plates, gears, sensors, shafts, etc.;

2, electronic components: such as capacitors, inductors, circuit boards, integrated circuits, automotive oil system, nylon, cable and wire, keyboard, etc.;

3. Instrumentation: control panel, measuring instrument, medical equipment, aviation parts, etc.;

4, household appliances, lamps, product packaging, stationery, brand-name panels, label signs, cosmetics, color paper, various paint products, cigarettes, handicrafts, etc.;

5, tableware, food, gold, jewelry, handicrafts, ceramics, building materials, sanitary ware, office supplies, etc.;

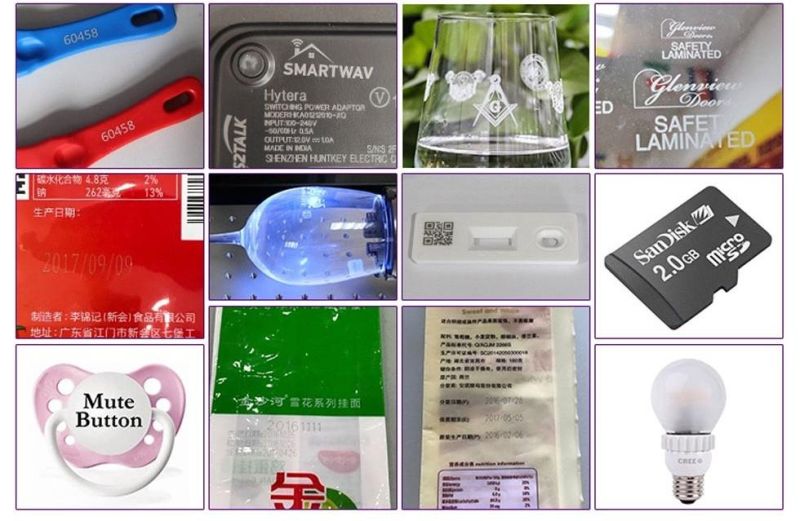

Sample Shown:
