• Model NO.：PE-DP-A2
• Applicable Material：Nonmetal
• Type：Oscillating Mirror
• Laser Classification：Free Electron Laser
• Engraving Method：Vector Engraving
• Working Size：90*90*150mm, 300*300*150mm, 400*3008150mm
• Engraving Speed：120000 Dots,Min
• Max Engraving Range：100*100*100mm, 300*
• Max Crystal Size：120*120*120mm, 320*320*170mm, 320*420*170mm
• Max Engraving Speed Dots/Min：12000 DOT
• Software Support：JPG, BMP, Dwg, Dxf, etc
• Diode Working Span：More Than 12000 Hours
• Time to Cut 50*50*80mm：Less Than 3 Minutes
• Repeat Offsite：10~20μm
• File Format：BMP JPG Dxf Obj Wrl 3ds Stl
• Transport Package：Export Sea-Worthy Packing or Air-Worthy Packing
• Specification：ISO 9001 & CE
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：100 Set,Month

Basic Info.

Model NO. PE-DP-A2 Applicable Material Nonmetal Type Oscillating Mirror Laser Classification Free Electron Laser Engraving Method Vector Engraving Working Size 90*90*150mm, 300*300*150mm, 400*3008150mm Engraving Speed 120000 Dots/Min Max Engraving Range 100*100*100mm, 300* Max Crystal Size 120*120*120mm, 320*320*170mm, 320*420*170mm Max Engraving Speed Dots/Min 12000 DOT Software Support JPG, BMP, Dwg, Dxf, etc Diode Working Span More Than 12000 Hours Time to Cut 50*50*80mm Less Than 3 Minutes Repeat Offsite 10~20μm File Format BMP JPG Dxf Obj Wrl 3ds Stl Transport Package Export Sea-Worthy Packing or Air-Worthy Packing Specification ISO 9001 & CE Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 100 Set/Month

Product Description

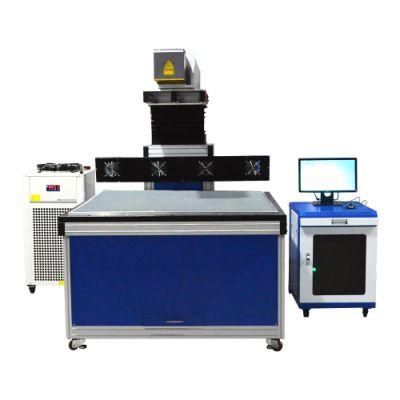

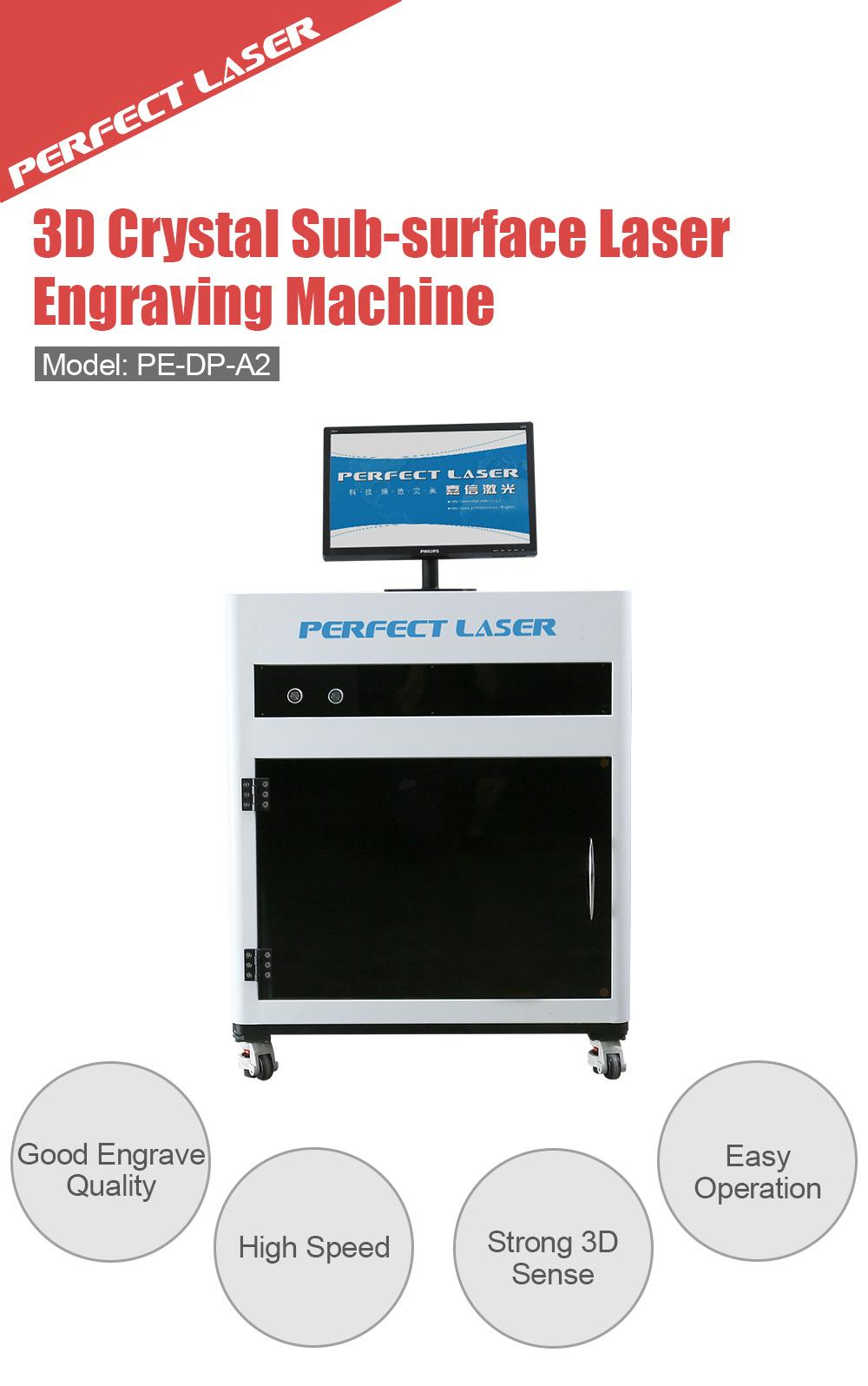

2D 3D Crystal Laser Glass Human Image Inside Engraving Machine
(Model:PE-DP-A2)
Contact:Crystal

Description of 3D Crystal Laser Engraving Machine:

Perfect Laser is a professional manufacturer of 3D Crystal Laser Engraving Machine .This 3D crystal engraving machine model PE-DP-A2 mainly handles the interior of crystals and glass materials.

By adding a 3D camera to take the 3D portraits on the human body, and through the laser inner carving technology make beam dots inside of crystal, 3D crystal engraving machine can create many dots to form a 3D human images.

This type of 3D Crystal Laser Engraving Machine use the imported air cooling laser system, so 3D crystal engraving machine not only greatly increased the speed of engraving, but also with small light point, carving out digital images of high profile distinctive characteristic, good stability and easy maintain, Suitable for large shopping malls, tourist resort and the place of big population like that make the personalized portrait production.

Due to 3D Crystal Laser Engraving Machine's various features and application, it also can be called crystal engraving machine.

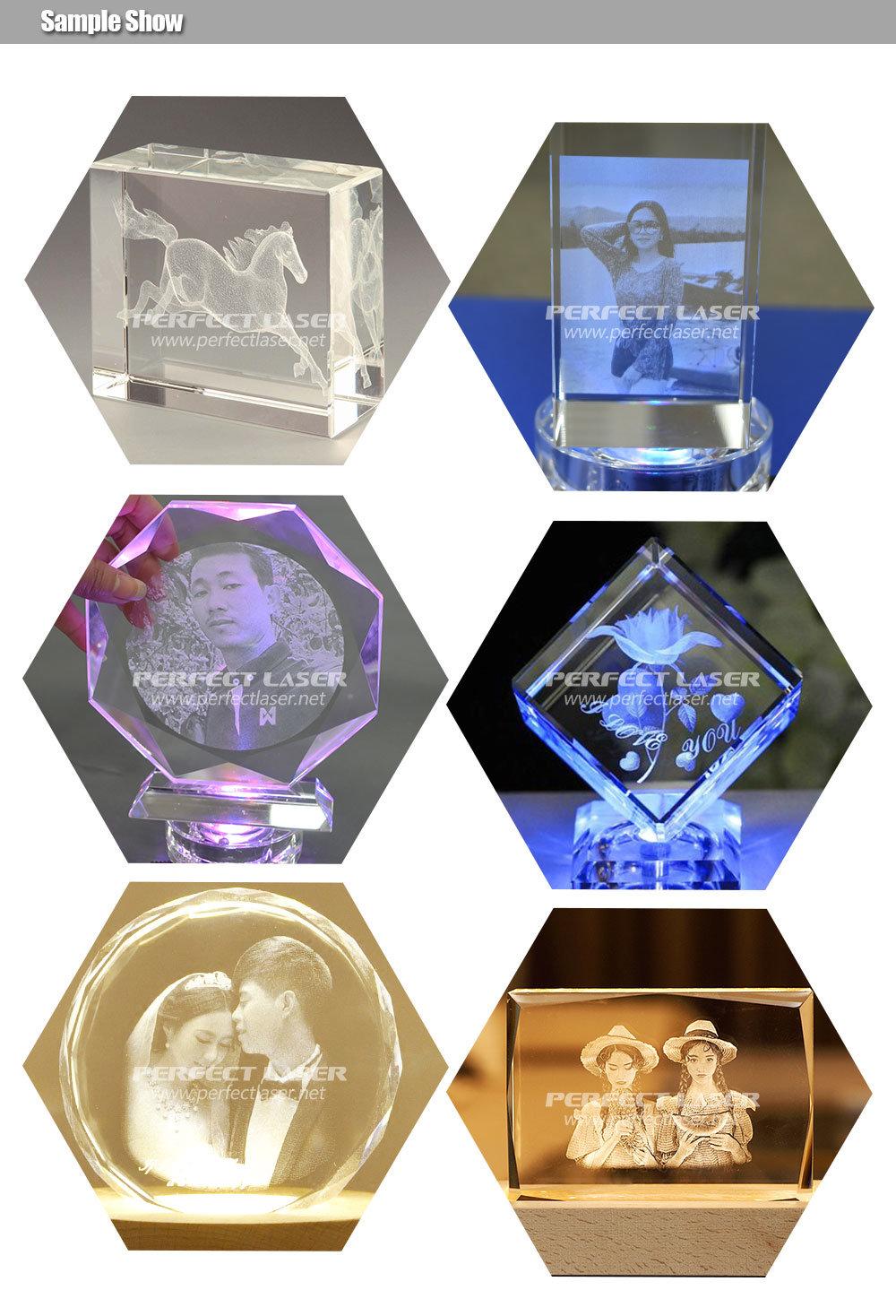

Application of 3D Crystal Laser Engraving Machine:
3D laser crystal engraving machine is widely used in hotel, tourism, photographic studio, advertising, gallery and other consumption activities industry, urban scenic spots, photo print shops, wedding photo, tourist souvenir and personalized gift shop and other forms of consumption and temporary activity places.
Suitable Materials:crystal, glass, acrylic, decoration materials and other apparent materials.




Main Features of 3D Crystal Laser Engraving Machine:
1. Good engrave quality, high solution.
2. The pattern of engraving is exquisite, crystal-clear and strong 3D sense.
3. Use the imported air cooling laser system, stable, easy maintenance.
4. Non-touch style laser process ensures that the surface of the crystal engraving machine's crystalline lens keeps its nice appearance.

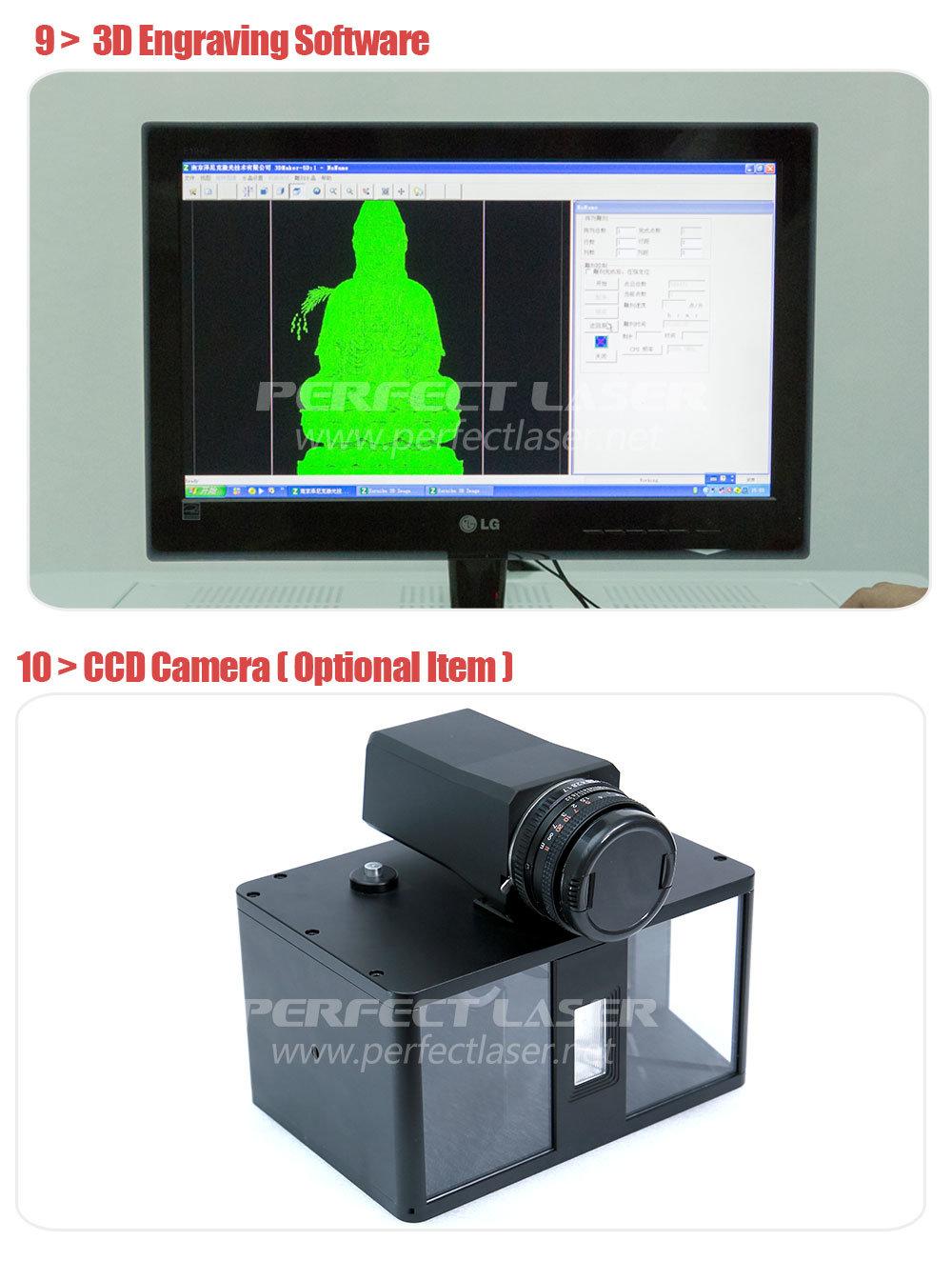

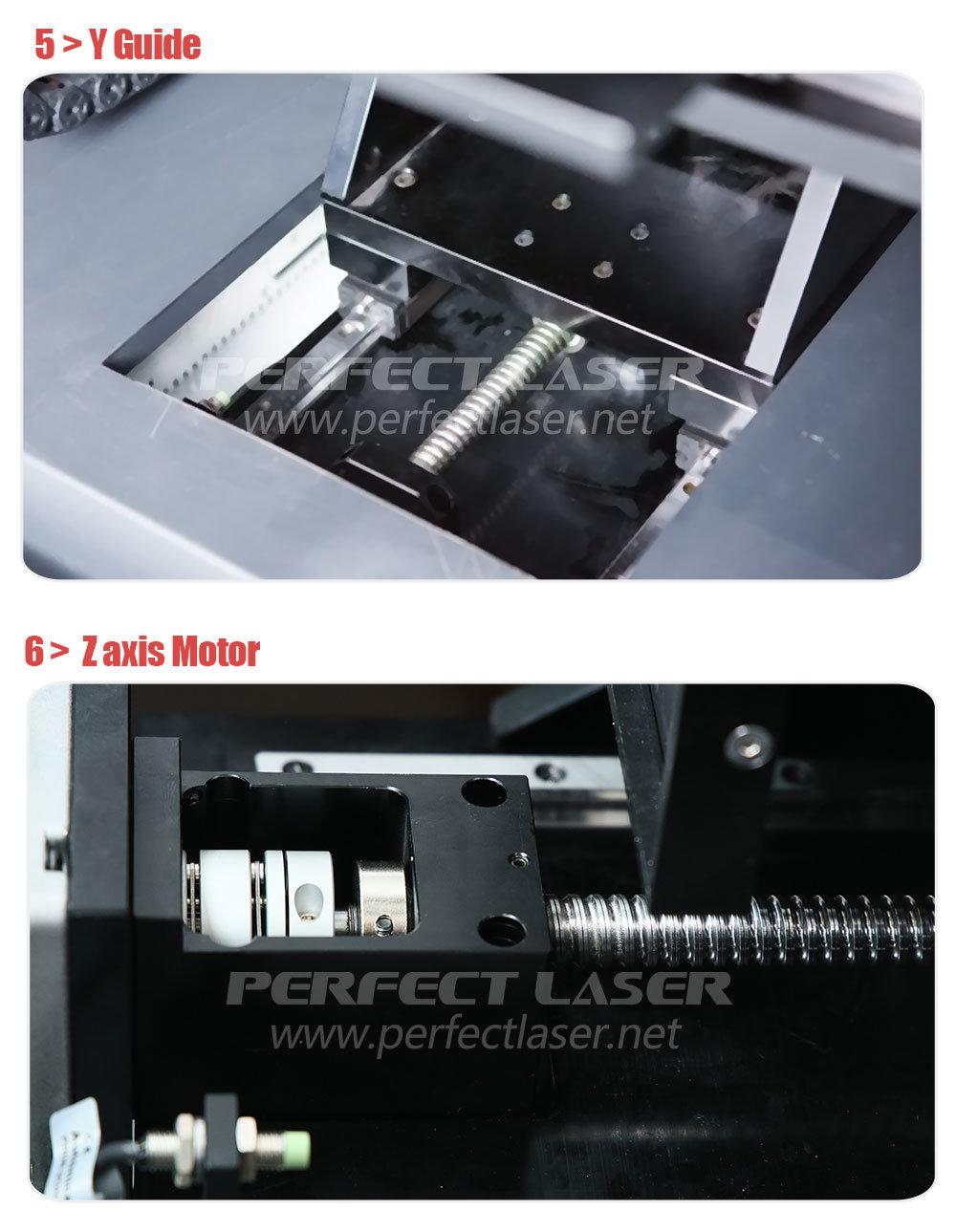

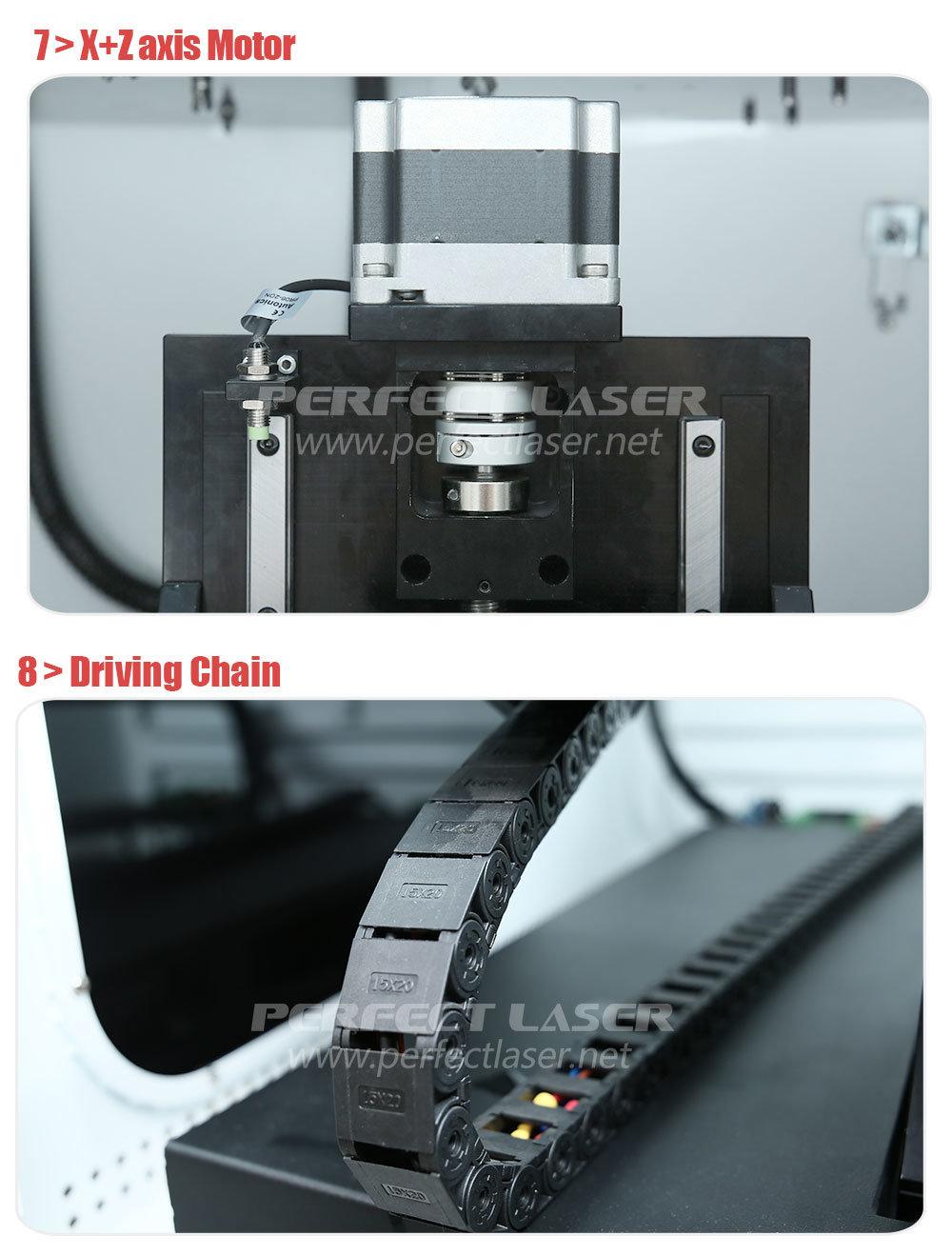

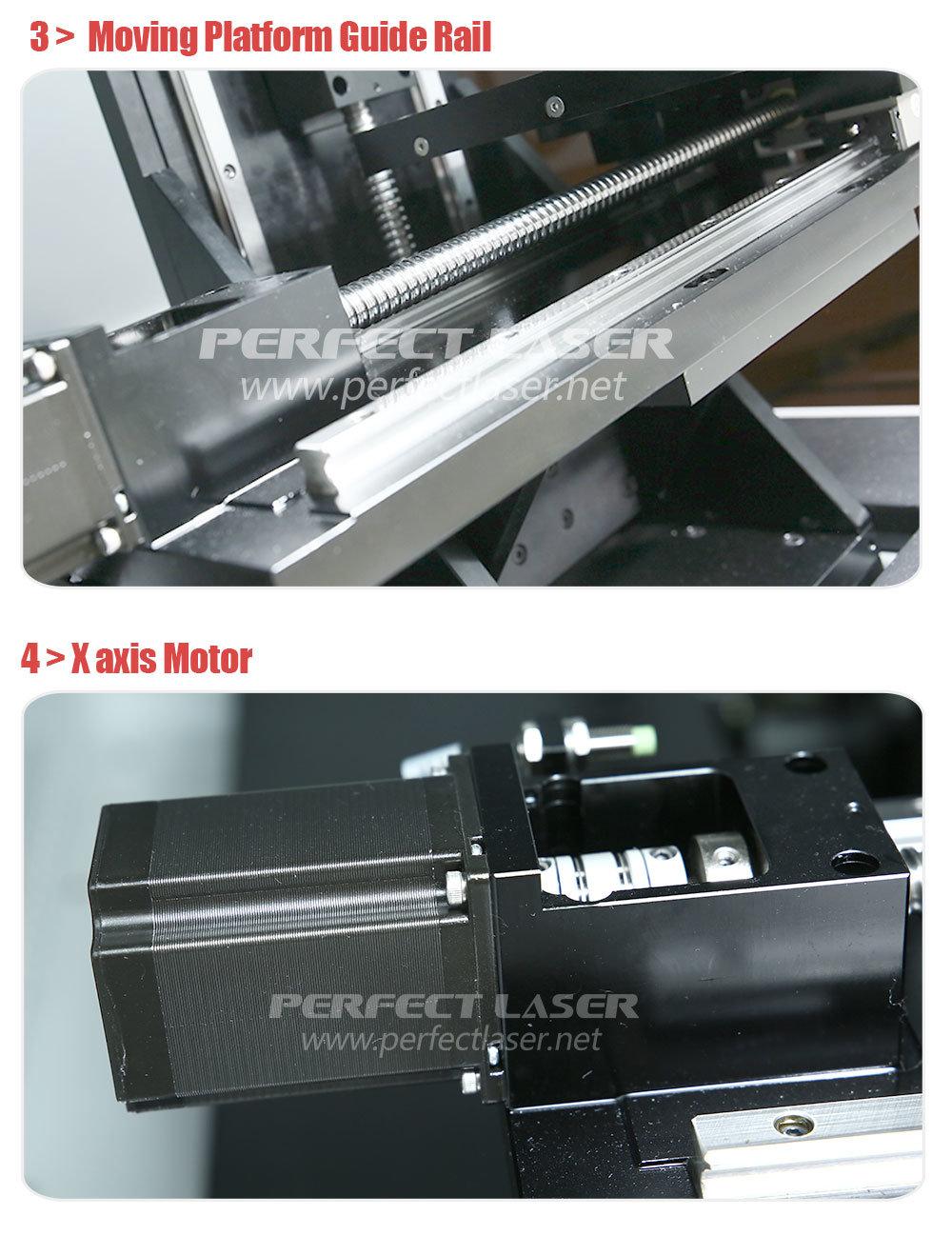

Machine Details 3D Crystal Laser Engraving Machine:



Technical Data of 3D Crystal Laser Engraving Machine:

Model	PE-DP-A2
Laser	YAG Diode Pump
Average Life Ld	>20000 Hours
Max Frequency	5000HZ
Max Engraving Area	400mm x 320mm x 120mm
Focal Length(standard)	120mm
Focal Length(Optional)	120mm
Accuracy	20μm~40μm
Max Speed	300000 PIONTS / Second
Repeat Offsite	10~20μm
Power	<350W 110v/60Hz
Weight	150kgs
Cooling	Air cooling
Environment	Less dust and shock, Temperature 10-35°C, humidity < 85%
File Format	BMP JPG DXF OBJ WRL 3DS STL
Applicable Mate	Crystal, Glass, Acrylic and Other Internal Carvings and Mental Surface Carvings
Package Size	1060mm x1060mm x 1460mm
Machine Size	800mm x 900mm x 980mm
