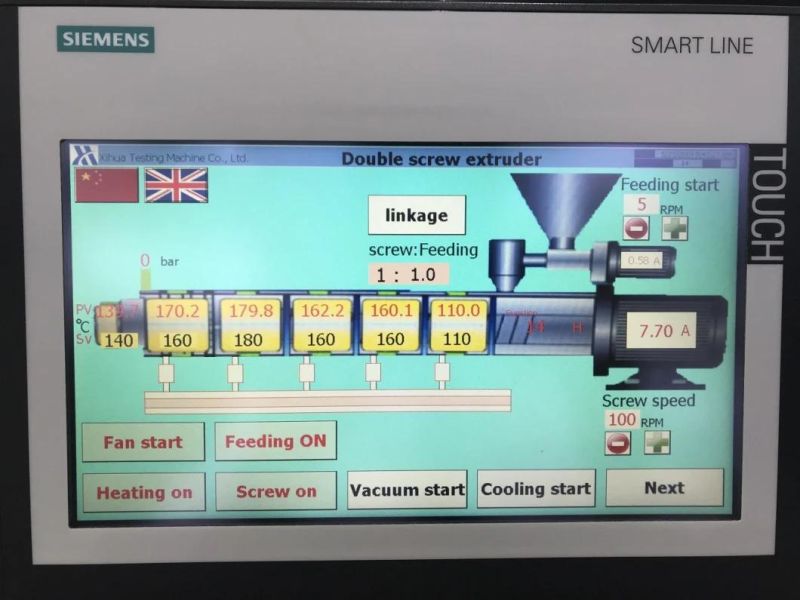

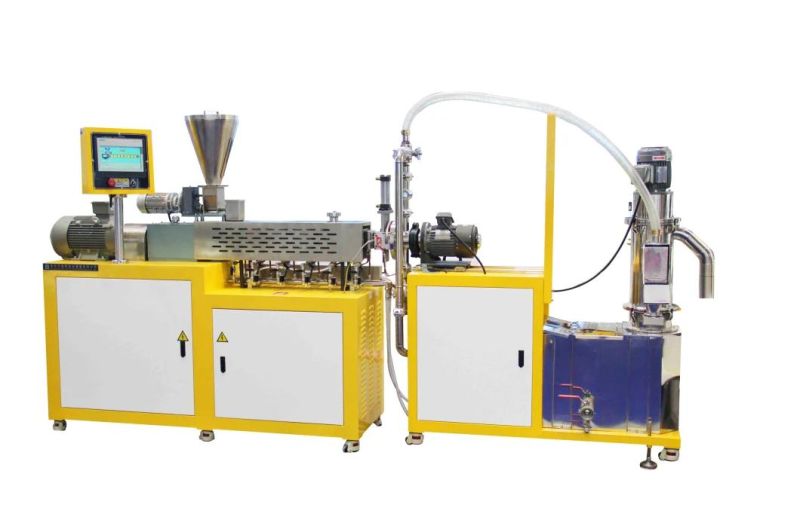

XH-433-20 TWIN SCREW EXTRUSION LINEApplicable materialsPP, PE, PS, PET, TPE, etc.Screw diameters21.7mmScrew speed0 - 300rpmScrew L/D ratio1:40Output1 - 10kg/h (decide by formula)Cooling deviceair/water coolingCutting deviceGranulatorPower supply380V/50Hz/3 phases or CustomerizedControl modeSIEMENS Touching Screen PLC control



Main Features
1) Adopting international brand variable speed control motor to precisely control the screw rotating speed;
2) The 3D processed geometry screw elements maintain uniform gaps and achieve very good self-clean and precise plasticizing effect;
3) Using parallel two-axis high speed high torque gearbox to make the extruder applicable for more than 95% materials' compounding and extrusion technologies;
4) Emergency stops and devices to protect safety of the operator;
5) Optional side feeder for special materials, e.g. glass fiber;
6) Optional forced feeder to increase stability of feeding;
7) Optional liquid feeding equipment;
8) Optional gravimetric feeder

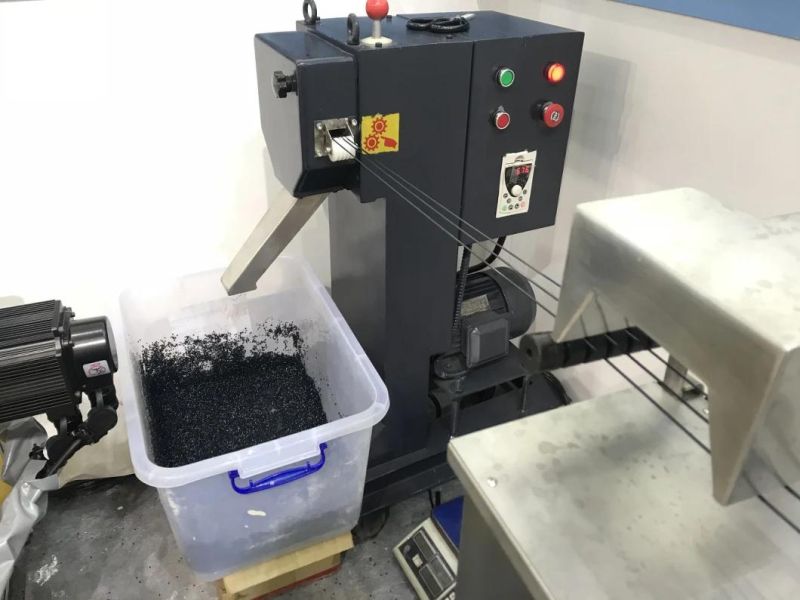

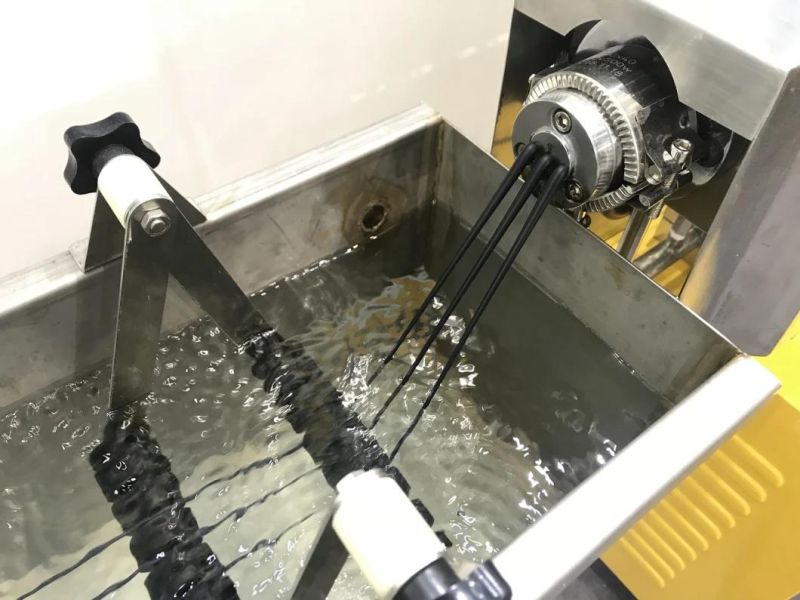

Detail images

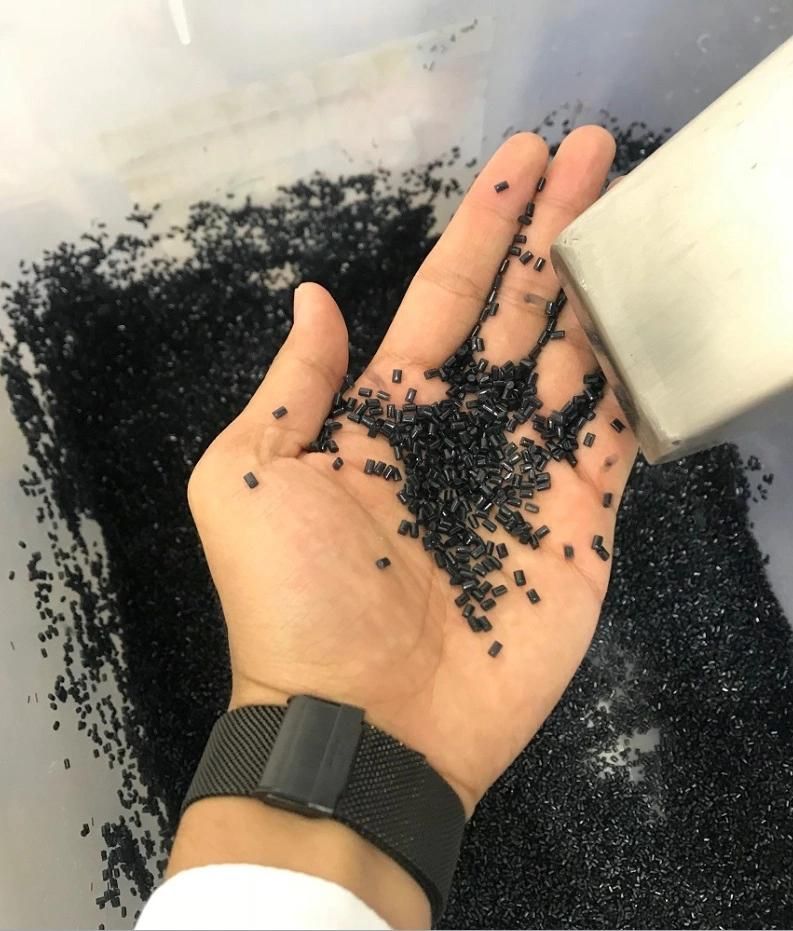

Testing sample
