• Model NO.：SC-W100
• Capacity：200L,Time
• Material：SS304
• Power：13kw
• Refrigeration Method：Water Refrigeration and Compressor Refrigeration
• Transport Package：Fumigation Free Packing for Export Wooden Cases
• Specification：1700*1000*1710mm
• Trademark：Yongchuang
• Origin：China
• Production Capacity：600sets,Month

Basic Info.

Model NO. SC-W100 Capacity 200L/Time Material SS304 Power 13kw Refrigeration Method Water Refrigeration and Compressor Refrigeration Transport Package Fumigation Free Packing for Export Wooden Cases Specification 1700*1000*1710mm Trademark Yongchuang Origin China Production Capacity 600sets/Month

Product Description

                                Milk Pasteurizer with Water refrigeration  And Compressor refrigeration
Machine Introduce :
1. This dairy milk pasteurization machinery is used for pasteurizing cow milk, sheep milk etc dairy products, also used for juice, beer, honey etc liquids.
2. The working principle is pasteurizing milk with low temperature, which can retain the beneficial bacteria in milk, also can destory harmful bacteria such as E. Coli.
3. As for the pasteurizing time, generally speaking, it takes about 15-30 minutes per batch. In addition, the pasteurizing temperature is adjustable, it can be 60-99ºC.


Equipment classification:
1. Fresh milk htst pasteurizer/egg pasteurizer/small milk pasteurizer is divided into 100L and 150L according to the output. 100L can process 200 kg of fresh milk at a time, 150L can process 300 kg of fresh milk at a time, and 100L and 150L have a low sterilization amount of 10 kg. In addition, we also have large fresh milk pasteurizer for sale small milk pasteurizer machine for sales, fermenters, and refrigeration tanks. Large fresh milk sterilization machine models can be divided into 200L, 300L, 400L, 500L, 600L, 800L, 1000L, 2000L, 3000L and so on.

2. fresh milk htst pasteurizer/egg pasteurizer/small milk pasteurizer according to the cooling method is divided into: refrigeration compressor refrigeration, ice block refrigeration, tap water refrigeration.
Machine Parameter :


Model	SC-W100	SC-W150	SC-W150B
Refrigerationn	Water Cooling	Water Cooling	Ice Refrigeration
Capacity	100L/Time	150L/Time	150L/Time
Barrel Body Diameter	625mm	625mm	625mm
Material	SUS304	SUS304	SUS304
Thickness	2mm	2mm	2mm
Sterilization Time	10-30min(adjustable)	10-30min(adjustable)	10-30min(adjustable)
SterilizationTemperature	60-99ºC	60-99ºC	60-99ºC
Heat Source	Electrical Heating	Electrical Heating	Electrical Heating
Heating Cycle	25-35min	25-35min	25-35min
Voltage, Powder	380V/13KW	380V/13KW	380V/13KW
Machine Size	1700*1000*1710	1900*800*1980	1900*800*1980
Weight	140kg	170kg	320kg

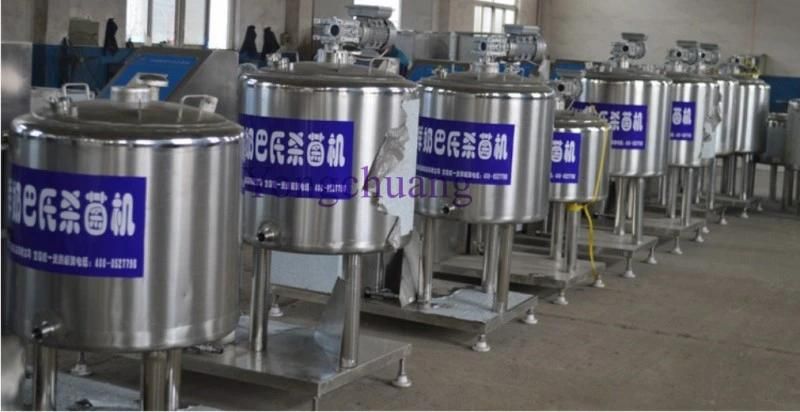

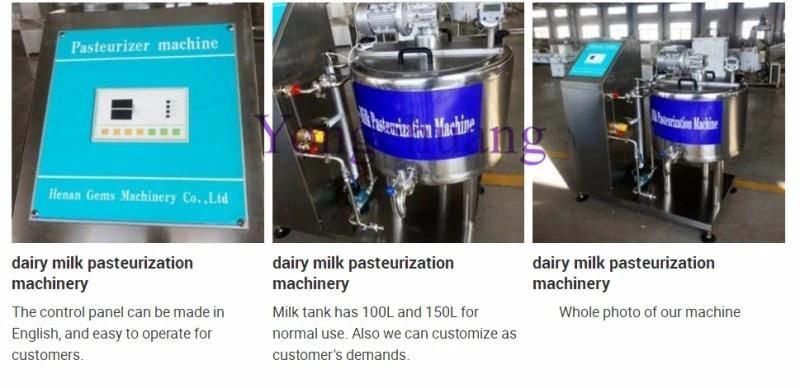

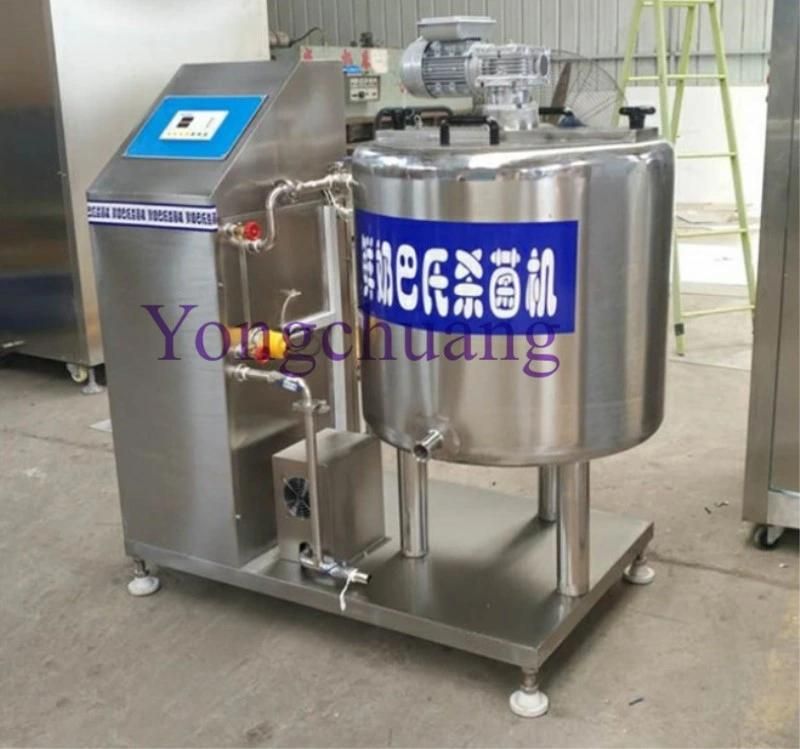

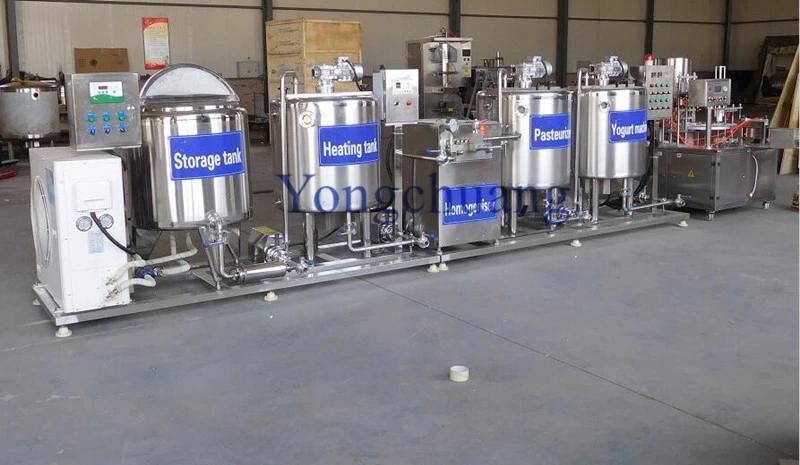

Machine Picture :
