• Model NO.：HDF240t,d
• Press Materials：Maize,Corn
• Press Series：Flour
• Condition：New
• Customized：Customized
• Warranty Time：2years
• Installation Form：Steel Frame Construction
• Noise：Less Than 85 dB
• Dust：Less Than 10mg,M3
• Pipe：Stainless Steel
• Control System：PLC
• After Sale Service：Engineer Overseas
• Pack：Suitable for Sea Transportation
• Commissioning：Yes
• Spare Parts：Yes
• Name：Maize Meal Flour Corn Grits Milling Processing
• Transport Package：Suitable for Sea Transportation
• Specification：CE, BV, SGS
• Trademark：HONDDEFA
• Origin：China
• HS Code：84378000
• Production Capacity：50 Sets,Year

QualityMoisture content(%)≤14.5≤14.0Hard maize(minimum)(%)6045Density(kg/l)≥660≥660Weight of thousand maize (g)295(minimum)280(minimum Ash (%)1.75(maximum)1.7(maximum)ImpurityInorganic impurities(%)0.4(maximum)0.5(maximum)Other grains (%)0.3(maximum)0.5(maximum)Incomplete rate(%) 4.0(maximum)6.0(maximum)Remark: according to the customer's standard to adjust designing.

2. The product structure and quality index:

According to the customer request to process the different raw material maize, processing various specialize maize
meal that for non-pollution food request, to see table 1 as below
The product project of the corn processing( by 81,000t/year input)Final  productsFine maize meal (breakfast))60-77%20000Sale in the marketNormal maize meal (roller meal )80-90%225000Sale in the marketmaize germ73500maize oilMaize bran84000Animal feedMaize samp(option products)10-38  Whole maize meal
(option products )

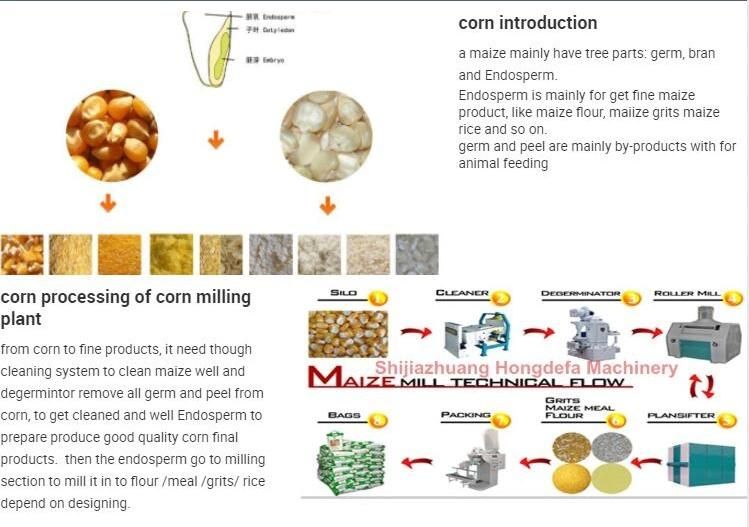

FLOW CHART--->>>
--->>>cleaning section technique flow for maize mill machine:

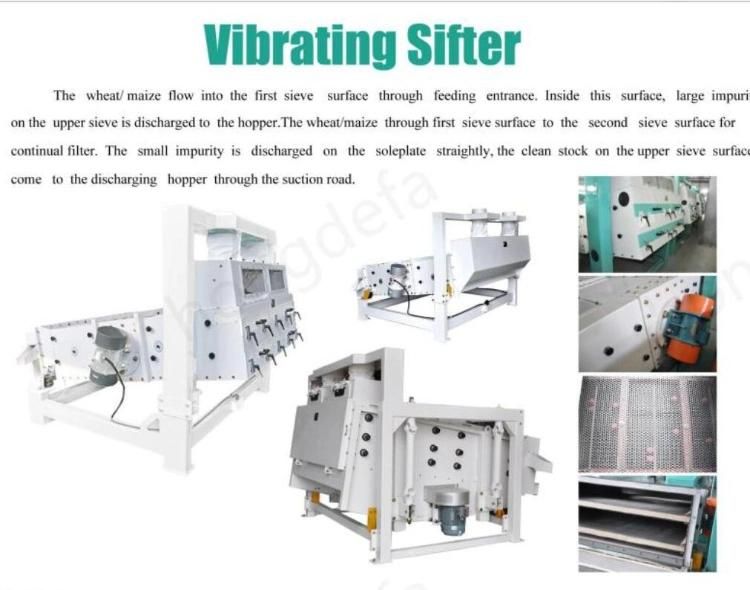

Bucket elevator -- Maize cleaner -- Moisture damper (stainless steel)-- damper bin -- Screw conveyor --Magnetic
separator-- Degerminator -- Gravity grade sifter -- blower -- Impulse dust filter
--->>> milling section technique flow for maize mill machine:

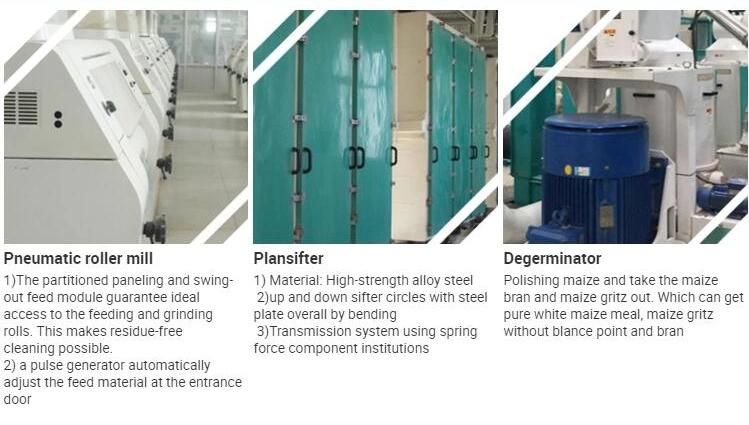

Pneumatic roller mill -- Plansifter -- Aspirator -- blower -- Flour screw conveyor -- Air seal -- Impulse dust filter
-- Auto-weighting& packing scale -- Belt Screw Compressor system

Main Machine Details

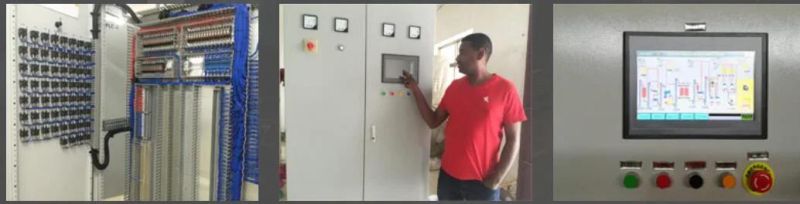

Touch screen control/Schneider electric components/high quality switch/standard cable connection

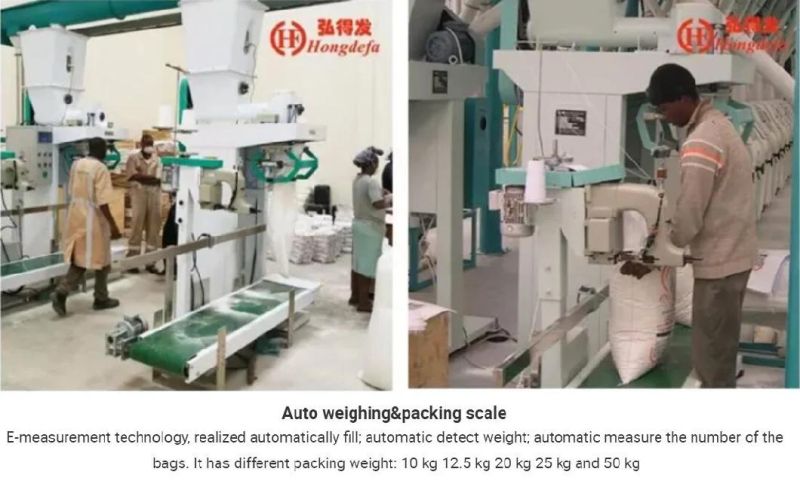

Automatic packing machine can pack 1-5kg 10-20kg 25-50kg bags.
3. The form of the package:
Woven bag :50 kg/ bag ( bran, embryo and so on)
Weave bag:25 kg/ bag ( finished product)
Small package:10 kg/bag, 5 kg/bag, 2.5 kg/bag( finished product).

*Our clients --->>>

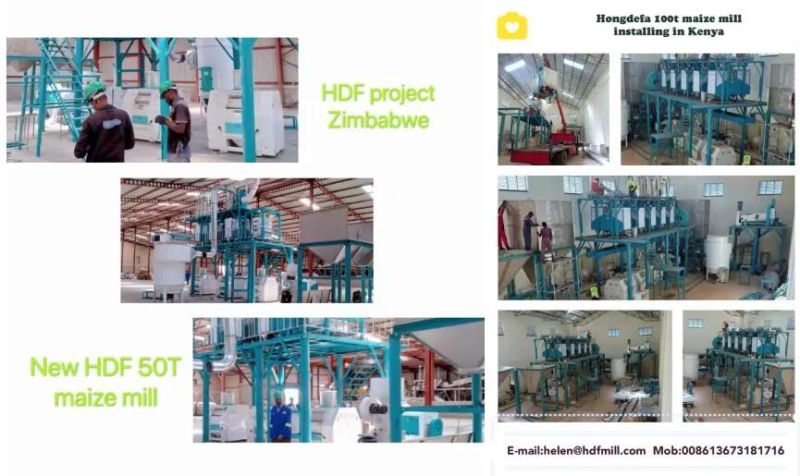

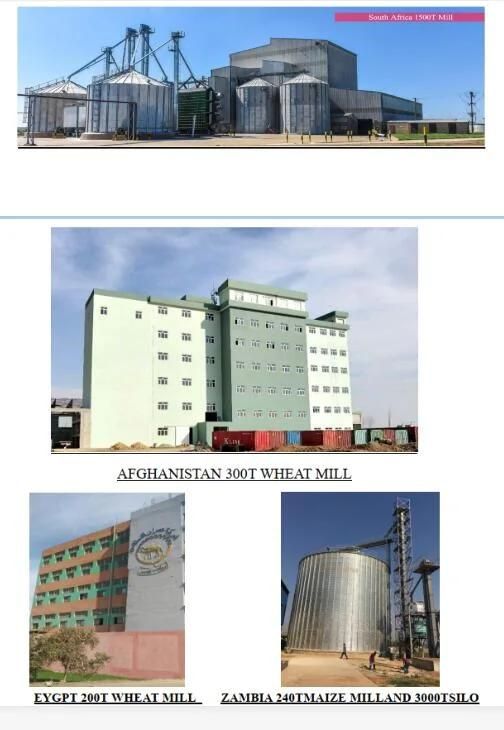

Successful projects in more than 40 countries:  South Africa, Malawi, Kenya, Zimbabwe, Zambia, Mozambique,
Rwanda, Ethiopia, Albania, Egypt, Angola, Afghanistan, Venezuela, Argentina, Brazil,

Professional team:--->>>
Experienced technician and sales team
All our machinery are high quality and have passed the certification of ISO, CE, BV, SGS and COC. and our
machines can get any Certificate depend on client's needing.
Lifelong oversea services
Since 2007, we opened the branch office in Lusaka of Zambia,where has a big storage room, easy access to some
machines and spare parts for Zambia customers and around countries clients, like Zimbabwe, Tanzania, RD Congo,
Angola, Malawi,Namibia , Botswana and so on.
*ABOUT US --->>>
Shijiazhuang Hongdefa Machinery Co., Ltd is located in Wumashan industarial area, Zanhuang County, Shijiazhuang
City, 4hours driving From Beijing and 5 hours driving from Tianjin port. Hongdefa has more than 120 workers, a
manufacturing factory 50000 square meters, and 5000 square meters of production workshop, 6000 square meters
warehouses, 1000 square meters of office space.


Contact information:
Now send your inquiry to me or talk with me online to ask more for the maize mill machine. You also can find me
through the below way:

MS.  Helen
Add:       No.388Jianhua North Street, Shijiazhuang, Hebei, China.

FAQ:
1. Does the Wheat Maize Mill use the same production line?
No, the physical properties of wheat and maize/corn are different, and they require completely different production lines.
2. What is the flour extraction rate of the Maize/Corn Mill?
The flour extraction rate depends on the cleanliness of the raw grain and the type of the finished product. Usually
the flour the extraction rate is 75%-85%.
3. Can the wheat/maize/corn flour mill produce different kinds of final products at same time?
Yes,the wheat/maize/corn flour mill can produce different size flour at the same time at one production line.
4. Can the wheat/maize/corn flour mill packing machine pack different bags?
Yes,the packing machine can pack 1kg-5kg;5kg-20kg,25-50kg.
