Laser Galvo Scanner Head for Fiber Laser Marking Machine

Bestpoly (Xiamen) Plastic Co., Ltd
  • Customized：Non-Customized
  • Standard Component：Standard Component
  • Type：Laser Scanner
  • Transport Package：Carton
  • Specification：300*200*100mm
  • Trademark：SINO GALVO

Base Info

  • Model NO.：SG7110
  • Origin：China
  • HS Code：9002909090
  • Production Capacity：1000 Sets Per Month

Description

Working Temperature 0ºC-45ºCLinearity 99.9%Setting Time ≤0.5msScale Drift <40PPM/ºCZero Drift <15μRad./ºCLong-term Drift Over 8 Hours <0.5mRadRMS Current2.0APeak Current 15AMaximum Scan Angle ±15°Storage Temperature -10 to +60ºCResolution12μradRepeatability 8μradInput Aperture10mmBeam Displacement 13.4mmWeight 120g Frequency ≤700Hz4. Servo Drive Board Specification

Input Voltage±15VDC
Interface Signals DigitalXY2-100
Position Signal Input Resistance1KΩ±1%
Position Signal Input Scale Factor/Position Signal Output Scale Factor0.33V/°
Working Temperature0-45 centi degree
Dimension (length*width*height)75*50*28cm

5. Related Products

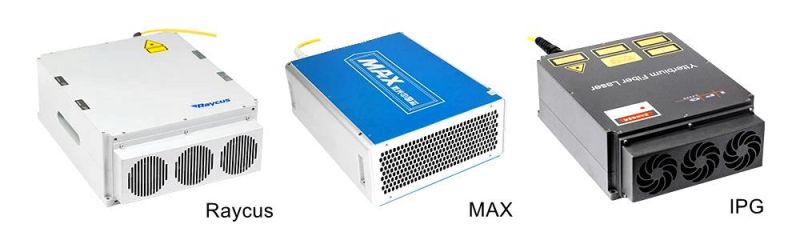

5.1 Laser Source: Raycus/ MAX/ IPGLaser Galvo Scanner Head for Fiber Laser Marking Machine

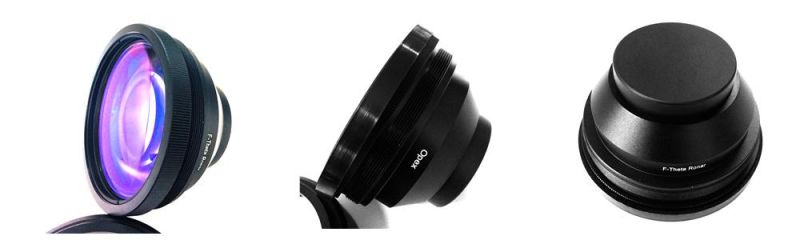

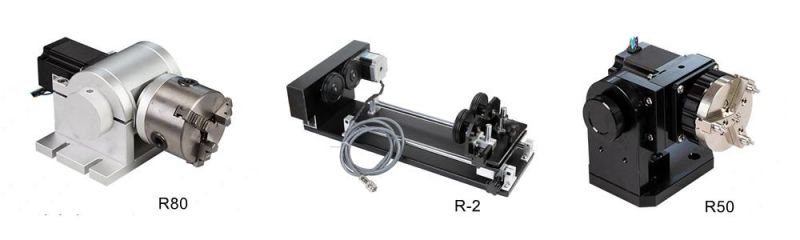

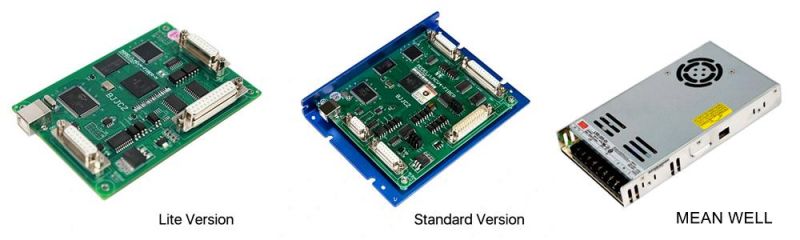

 5.2 Control Board: BJJCZ/ MW (Power Supply)Laser Galvo Scanner Head for Fiber Laser Marking Machine5.3 Field Lens: WAVELENTHLaser Galvo Scanner Head for Fiber Laser Marking Machine5.4 Rotary Device (If need)Laser Galvo Scanner Head for Fiber Laser Marking Machine6. Contact Information
