• Model NO.：LS-YLP-20,30,50L
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L
• Laser Power：20W;30W;50W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 400*400mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Transport Package：Wooden Case
• Specification：980*800*1590
• Trademark：Lospeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：100 Sets , Month

Basic Info.

Model NO. LS-YLP-20/30/50L Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-20L Laser Power 20W;30W;50W Power Consumption <500W Wavelength 1064nm Engraving Range Max 400*400mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Transport Package Wooden Case Specification 980*800*1590 Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 100 Sets / Month

Product Description

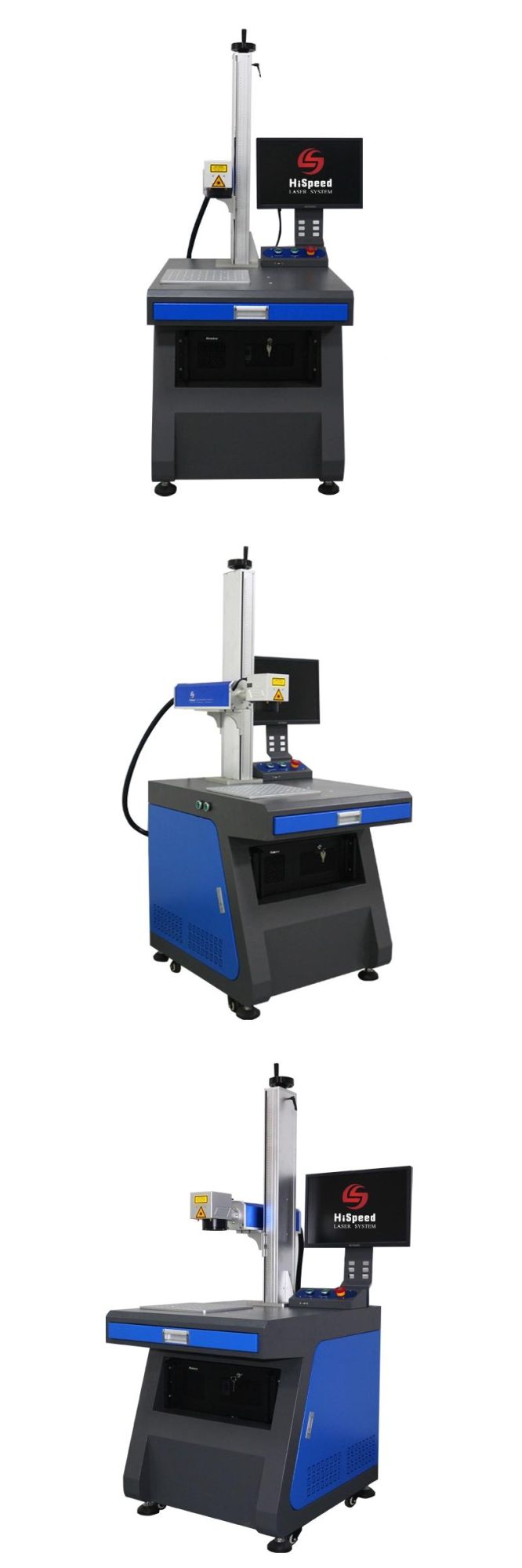

Fiber Laser Engraver Laser Marker System
>>>>>>Fiber Laser Marking Machine<<<<<<<
 Fiber laser marking machine widely use in Hardware industry, wrench, measuring tools, sanitary ware, stainless steel tableware, medical instruments, bags, handbags, gift industry, there are many, such as metal gifts, wooden box, U disk, notebook, metal watchcase, watch the instrument industry in the bottom of the table, spectacle frame, instrument and panel.also can apply in jewelry accessoris,glass watches and clocks.


 >>>>Features of Fiber Laser Marking Machine<<<<

1. One Fiber marker can work for more than 10 years without any comsumables, Free   of Maintenance .
2. Best Marking Effect, Deep Marking, Higher Accuracy.
3. No need to adjust the laser path, Use Integrated Air Cooling.
4. Low Power Consumption, Small and compact
5. To easily fit into your production environment




>>>>Technical Parameters<<<<

Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

>>>>>Applicable Materials<<<<<




Electronic Components :	Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter:	Panel signs, precision equipment ,etc.,
Instrument:	Panel signs nameplates, precision equipment ,etc.,
Hardware Tools :	Knives, tools, measuring tool, cutting tool, etc.,
Automobile Parts :	Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,
Mechanical Parts :	Bearings, gears, standard parts, motors, etc.,
Daily Necessities :	Handicrafts, zipper, key holder, sanitary ware, etc.,
Jewelry Rings:	Jewelry, gold, silver,etc.
Food, drinking packing:	Plastic packings,etc.



>>>>>>Packaging & Shipping<<<<<<<

Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warrantyis unreliable, ourt warrannty is effective and enforceable.

Q2: What's the package?
A2: We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
the machine is covered by thickening plastic Bag for waterproof.

Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.

Looking forward to your inquiry!!!
