• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：700*600*1500mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 700*600*1500mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

High Speed CO2 Laser Marking Machine for invitation card Paper

Why  laser marking machine is better?

1. Producing higher quality beam, higher photoelectric conversion, high accuracy, the marking quality is best with cheaper price.

2. Small Size wtih Air cooling,no water chiller.

3. No maintenances laser source(100,000 hours service time without routine replacement of consumables), Easy to adjust focus

and use by unskilled operator, Low power consumption.

TECHNICAL  PARAMETER :


Item Name	Technical Parameters
Model	10w /20w /30w
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20KHZ ---- 100KHZ
Power consumed	<800W
Minimum line width	30μm
Minimum character	0.15mm
Laser Wavelength	1064nm
Marking depth	0-0.5mm
Galvanometer Size	110 * 110mm (optional),150*150mm
Repeatability accuracy	±0.002mm
Control software	EZCAD control software
Whole machine power	500w
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Cooling	Air Cooling
Packing size	900*800*1150mm
Gross weight	100kg
Package	Standard export wooden case
Packaging List	Main Body Laser Machine Unit x 1 Operation manuel  x 1 Computer including controller software and operation video x 1 Wood Safety Package Box x 1

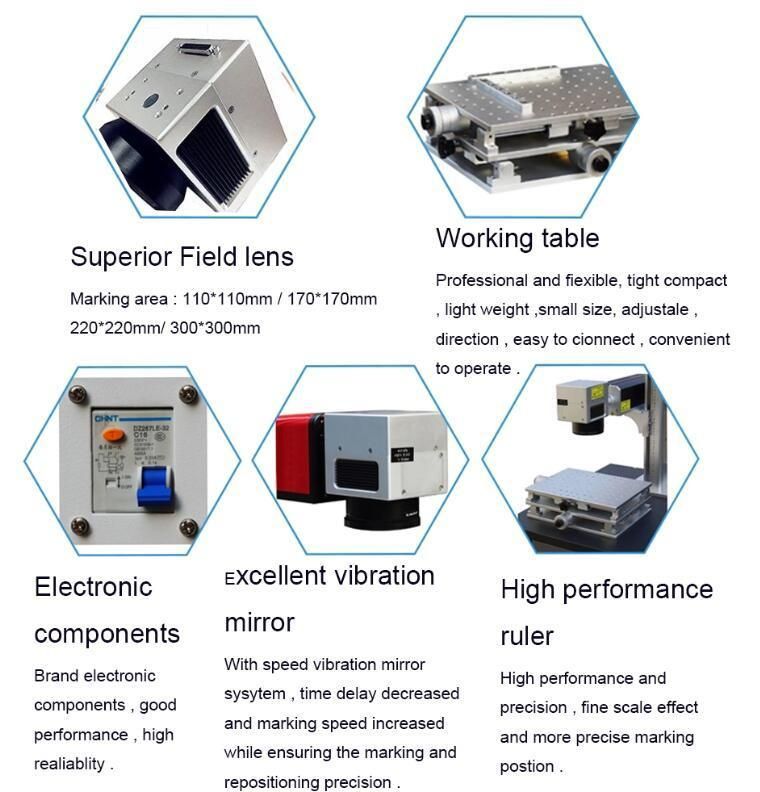

DETAILS   IMAGES :



FEATURE :

1. The operation is simple.

2. Design graphs through computer.

3. The power is controlled by the software and adjustable.

4. It has big power and high electro optic conversion efficiency.

5. The marker software runs in WINDOWS platform and Chinese interface.

6. It maker adopts an imported CO2 RF laser or a domestic CO2 laser.

7. The CO2 radio frequency laser is a kind of gas laser and the laser wavelength is 10.64μm, which is in   medium infrared frequency.

8. The CO2 radio frequency laser and high speed scanning galvanometer imported from America provide   reliable guarantee for the long time,

continuous, high speed and stable work of the machine.

APPLICATION :

CO2 laser marking machine can mark a varity of non-metallic materials and metal products,

such as bamboo,wood,paper ABS PVC epoxy resin,acrylic,leather,glass,building ceramics,rubber etc..Widely used in pharmaceutical

packaging,food packaging,beverag.packaging,plastic,textile,leather,wood,handicrafts,electronic

components,communications,watches,glasses,printing and other industries.

SAMPLE SHOW :



PACKAGING &  SHIPPING :

Packing method:

1)Standard  box package for light and small item;

2)Strong wood package for heavy and large equipment;

Shipping way:

1)By air ,for sample and small package ,wordwide express like DHL,UPS,FedFX,EMS....

2)By sea, for large package and quantity;

3)By car or other ways as customer requested;



ABOUT  US

MAN LASER  makes the following commitments for products that you purchase from us:

1. Our fiber laser marking machine complies with CE and FDA standards.

2. We supply 3 years warranty service .

3. We have full sets laser parts for laser marking machine in stock.Which can ensure timely delivery and replacement for laser parts on time.

4. We train customer for machine operation at our factory for free.

5. Machine operation manual will be sent together with machine delivery.

6. Before shipment, our engineer will do machine checking within 48 continuous hours to ensure high performance and high stability.

7. We have a professional after sales service team with 5 engineers.

Professional Service

From producing in our factory to shipping the goods directly to your port or company, we supply all-in-one service for our customer.

With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the

quick leading time. No matter quantity is our MOQ or very big, we take each customer as the only one
