Basic Info.

Model NO. sj45 Trademark beiyangsj Origin Zhoushan Zhejiang HS Code 84773010 Production Capacity 20-40kg/H

Product Description

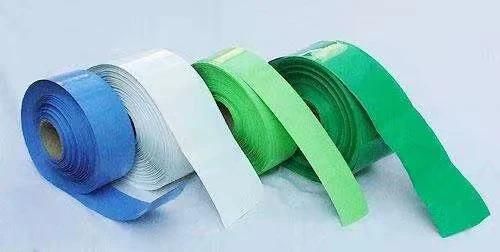

PET film is internationally recognized environmental protection heat shrinkable material, its technical indicators, physical properties, application scope and method of use are close to PET heat shrinkable film, but the price is cheaper PETG film, is currently the most advanced one-way shrink film, the transverse shrinkage rate reached 70%. The longitudinal shrinkage rate 3% smaller, and non-toxic, no pollution, is the ideal environmental protection material.This product is widely used in electric fuse, battery, inductance and other electronic components, toys and medical equipment and other light industrial products packaging protection, easy to use, with oven or hot air gun heating can shrink.
Technical Data

The unit type	SJ30-Sm250	SJ35-Sm250	SJ40-Sm250	SJ45-Sm250
Extrusion type	SJ30*25B	SJ35*25B	SJ40*25B	SJ45*25B
Screw diameter	Ф30mm	Ф35mm	Ф40mm	Ф45mm
Drive motor	5.5kw	7.5kw	7.5kw	11kw
Heating power	11kw	11.5kw	11.5kw	12kw
Mold size	Ф7-Ф15mm	Ф10-Ф20mm	Ф15-Ф25mm	Ф20-Ф30mm
width	8-40mm	15-80mm	30-100mm	50-150mm
Thickness	0.04-0.20mm	0.04-0.20mm	0.04-0.20mm	0.04-0.20mm
Output	5-15kg/h	8-20kg/h	10-30kg/h	20-40kg/h
