• Model NO.：ZY3.5
• Customized：Customized
• Raw Material：Peanut, Soybean, Sunflower, Rapeseed, Cotton Seed
• Capacity：3.5 Kg,Batch
• Weight：600kg
• Motor Power：2.2 Kw
• Dimension：950*850*1250mm
• Transport Package：International
• Specification：1800*1040*1160mm
• Trademark：pinyang
• Origin：China
• HS Code：8419310000
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. ZY3.5 Customized Customized Raw Material Peanut, Soybean, Sunflower, Rapeseed, Cotton Seed Capacity 3.5 Kg/Batch Weight 600kg Motor Power 2.2 Kw Dimension 950*850*1250mm Transport Package International Specification 1800*1040*1160mm Trademark pinyang Origin China HS Code 8419310000 Production Capacity 5000pieces/Year

Product Description

Product Application

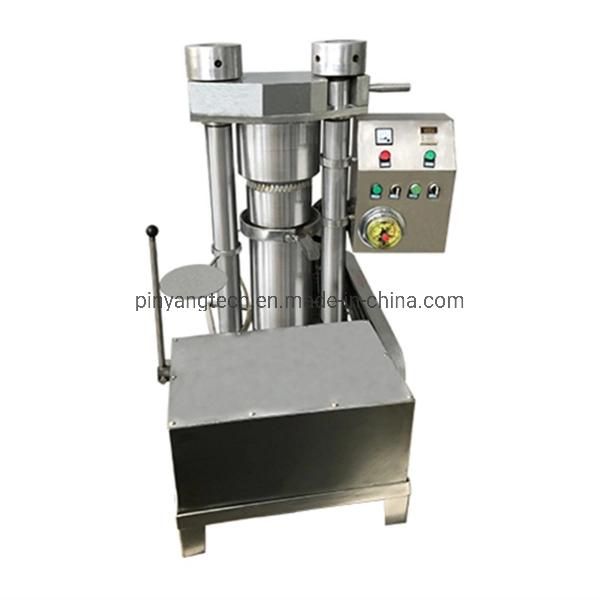

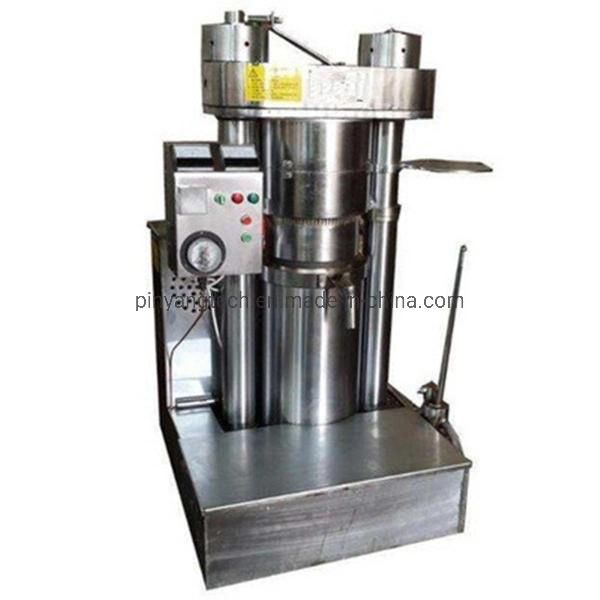

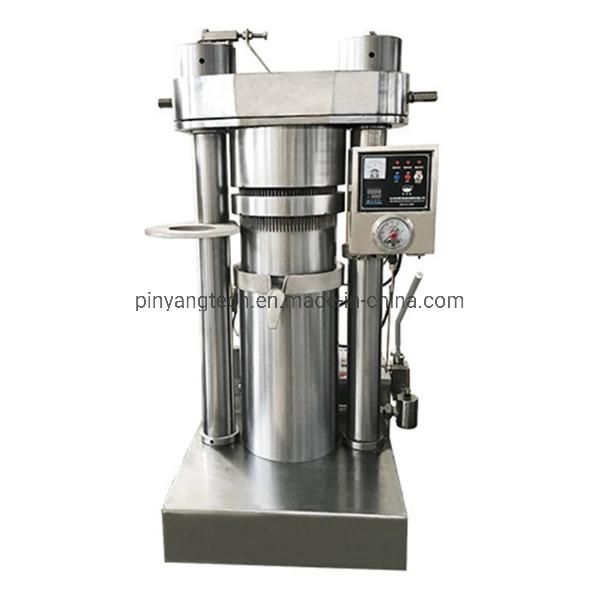

Simple structure, strong maintainability make this Hydraulic oil press very popular in Afria, South America, Asia.
The hydraulic oil press is widely used for most raw materials, such as soybean, sesame, peanut, corn germ, sunflower seed, cocoa bean, rape seed, palm kernel, etc.




Specification


Model	ZY3.5	ZY7	ZY9	ZY11	ZY14	ZY16
Capacity(batch/15 minuts)	3.5kg/batch	7kg/batch	9kg/batch	11kg/batch	14 kg/batch	16 kg/batch
Motor   power	2.2kw	2.2kw	1.2kw	1.5kw	1.5kw	1.5kw
Power supply	380V	380V	220/380V	220/380V	380V	380V
Weight	600KG	800KG	1100KG	1400kg	1500kg	1600kg
Max pressure	55Mpa	55Mpa	60Mpa	60Mpa	60Mpa	60Mpa
Size	950*850*1250mm	1000*900*1680mm	1000*970*1420mm	1150*1000*1570	1150*1050*1570mm	1200*1150*1550mm
