Portable Water Well Drilling Rig Bore Well Drilling Machine Price

Kunshan Hexin Precise Machinery Co., Ltd.

Base Info

Description

Model

HQZ-260L

Total Weight(T)

6.4

Dimensions(mm)

4100*1900*2600

Drilling Diameter(mm)

140-300

Drilling Depth(m)

260

One-time Advance Length of the Drill(mm)

3000

Walking Speed(Km/h)

2.5

Climbing Ability(max)

30

Min. Ground Clearance(mm)

250

Working Air pressure(Mpa)

1.7-3.0

Air Consumption(m³/min)

17-35

Main Power(kw)

73/Yuchai

Rotation(rpm)

40-70

Rotary Torque(Nm)

7000-9000


 Detail Photos

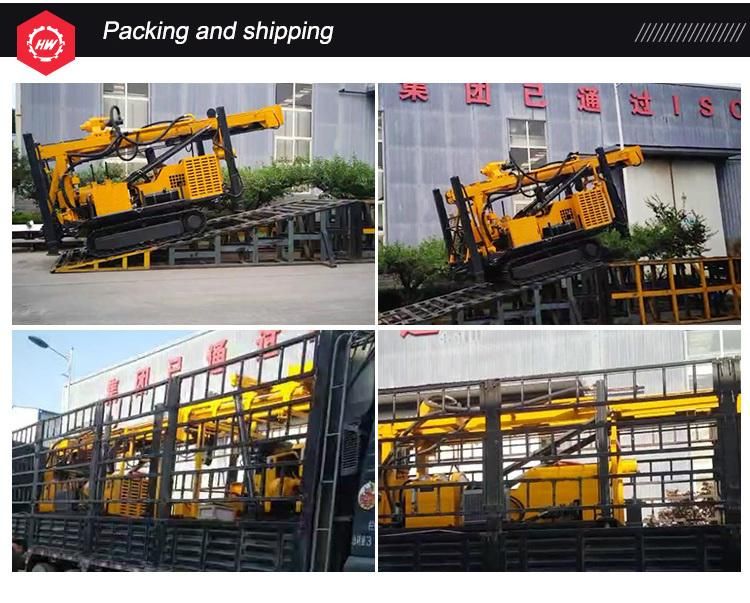

Portable Water Well Drilling Rig Bore Well Drilling Machine PricePortable Water Well Drilling Rig Bore Well Drilling Machine PricePortable Water Well Drilling Rig Bore Well Drilling Machine PriceProduct ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

Portable Water Well Drilling Rig Bore Well Drilling Machine PriceCompany Profile
Portable Water Well Drilling Rig Bore Well Drilling Machine PricePortable Water Well Drilling Rig Bore Well Drilling Machine Price
