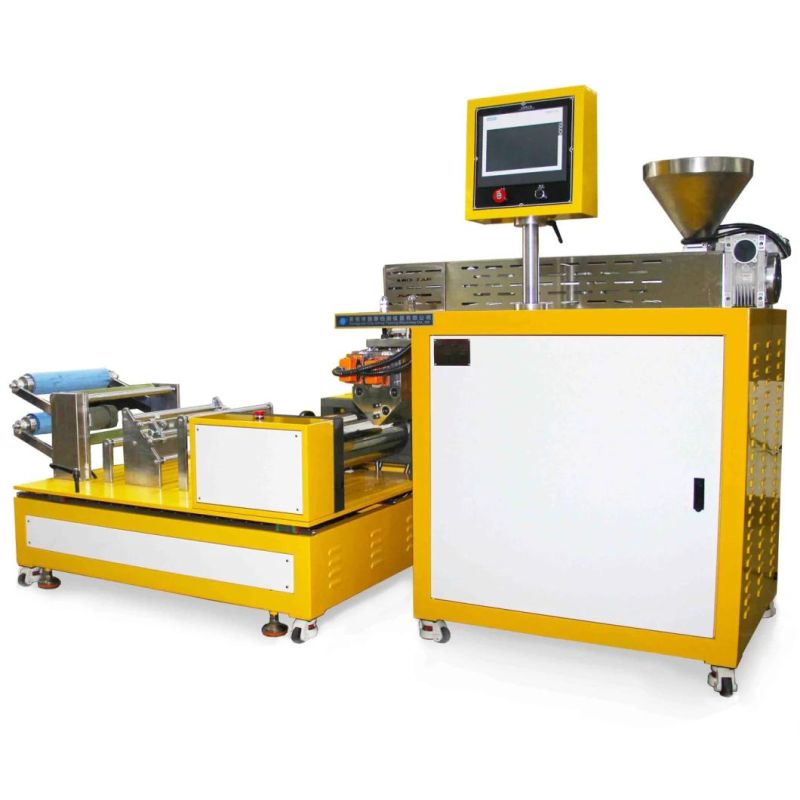

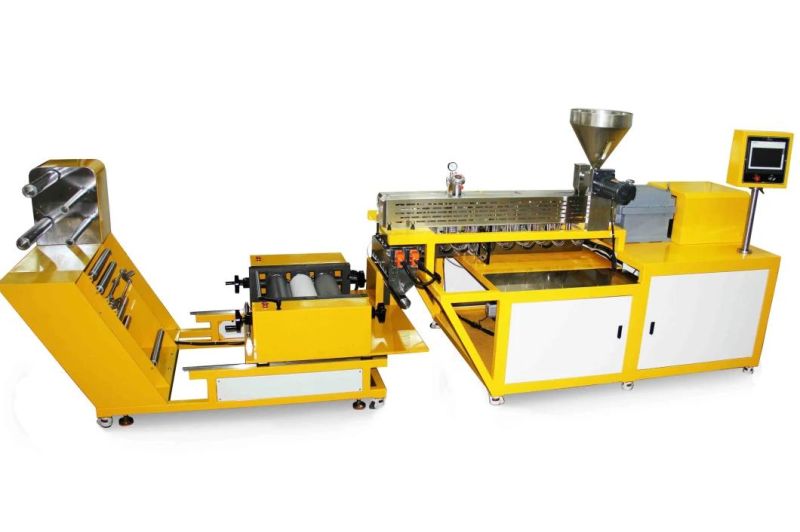

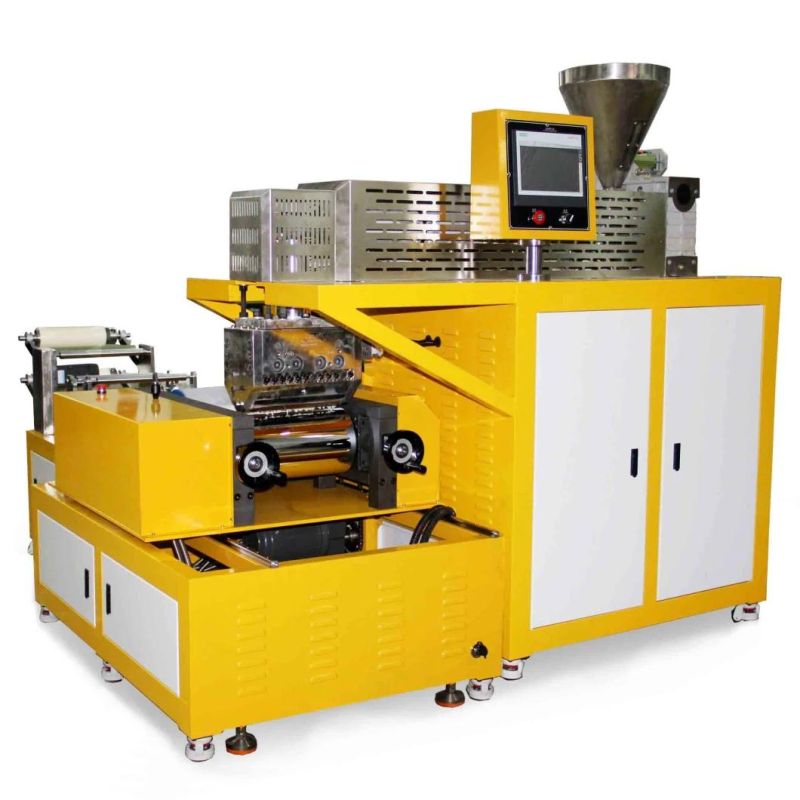

Small Single Layer Stretch Film Machine Cast Film Extruder

Dongguan Koves Precision Tools Co., Ltd.

Base Info

Description

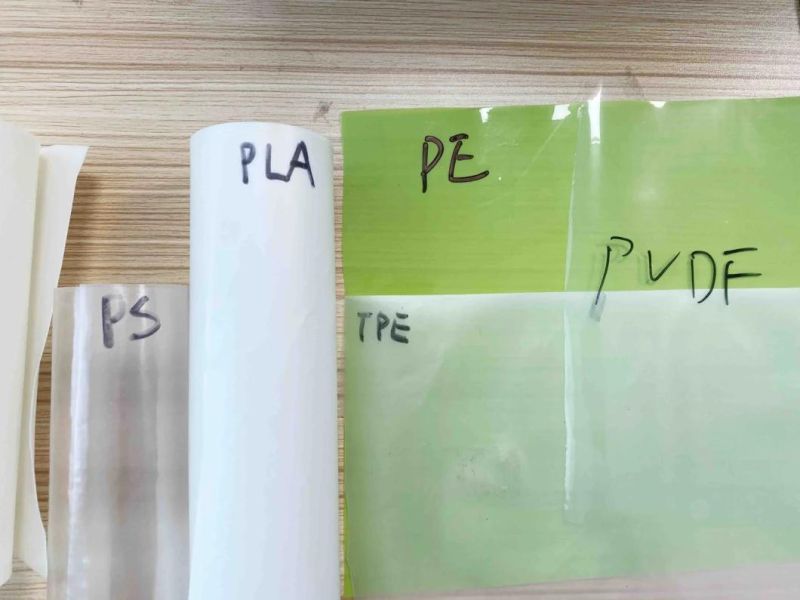

Specifications Of Lab Cast Film MachineApplicable materialsPP, PE, PVC, PS, PET, etc.Screw diameters30mm or customizedScrew rotating speed0-100rpm (adjustable)Screw L/D ratio25:1Temperature rangeRoom temperature - 300ºCFilm thickness0.03-0.3mmFilm widthat least 250mm (customized)Die width400mmWorking voltage380V/50Hz/3 phases or CustomerizedMotor power2.2 KWTotal Power7 KWControl modeSIEMENS PLC Control  Small Single Layer Stretch Film Machine Cast Film ExtruderSmall Single Layer Stretch Film Machine Cast Film ExtruderSmall Single Layer Stretch Film Machine Cast Film Extruder


 Small Single Layer Stretch Film Machine Cast Film ExtruderSmall Single Layer Stretch Film Machine Cast Film ExtruderSmall Single Layer Stretch Film Machine Cast Film Extruder



Features

1) Adopting international brand variable speed control motor for the extruder to make the plasticization stable and constant;
2) Using brand melt pressure and temperature sensor to ensure high accurage data

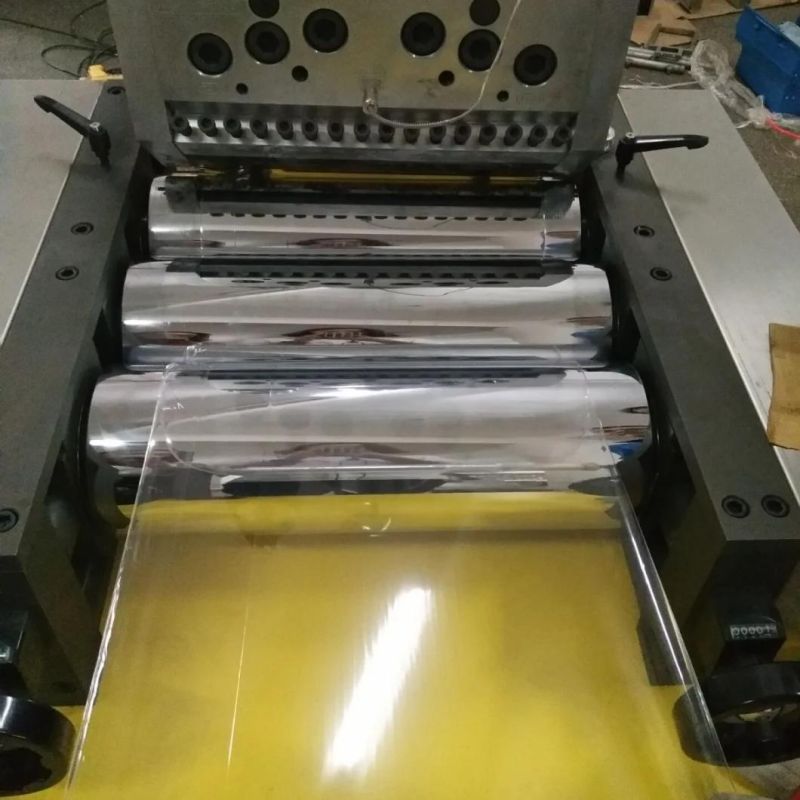

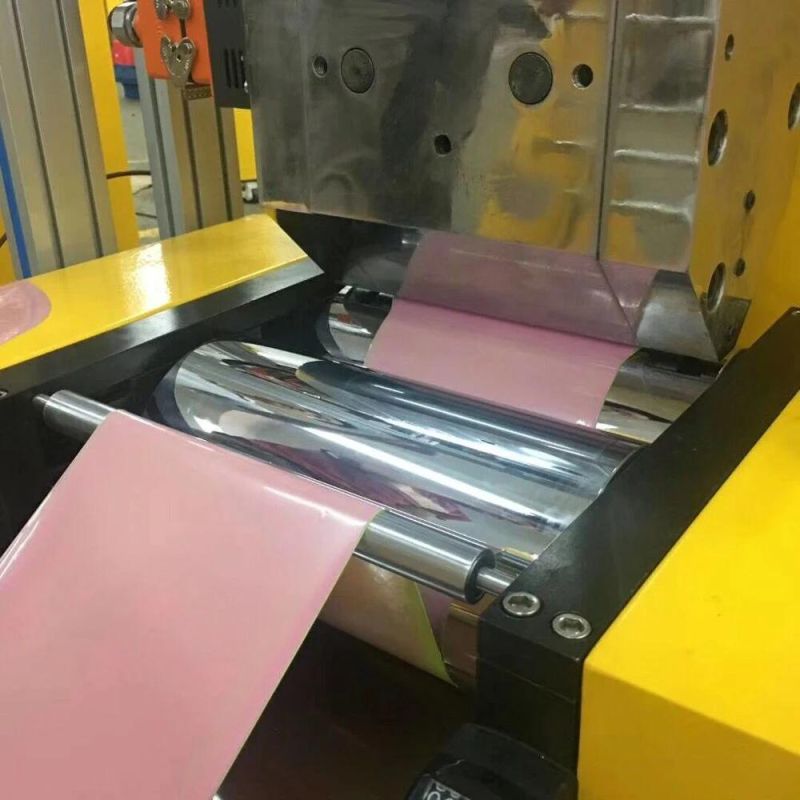

3) Cantilever roll structure making it easy to lead the film and be operated;
4) dopting PLC control system and friendly operation interface to easily operate;
5) On-line testing and displaying melt pressure, temperature and other key data;
6) Emergency stops and devices to protect safety of the operator;
