• Model NO.：WRP08
• Transport Package：Plywood Case or Plastic Case
• Specification：800kg, 1600kg, 3200kg, 5400kg
• Trademark：TXK
• Origin：Jiangsu, China
• HS Code：84286090
• Production Capacity：300PCS Per Day

Item NoWRP08WRP16WRP32WRP54Lifting Capacity                  (kg)800160032005400Pulling Capacity                  (kg)13002800600010125Tested to                                      (kg)15003000600010125Steel wire rope dia.           (mm)IWRC8.3IWRC11IWRC16IWRC20Wire rope safety factory load capacity(mm)5xWLL5xWLL5xWLL5xWLLBreaking strength of wire rope (kg)543096801720027000Overall structure breaking Strength   4xWLL4xWLL4xWLL4xWLLRansmission3mtrs3mtrs3mtrs3mtrssafety devicesafety pinssafety pinssafety pinssafety pinsNet weight(without wire rope)      (kg)6.4122328

Features:

1. Measures small and light
2. Equipped with two safety devices, and this guarantees safe operations.
3. Wire rope is drawn out straight, by distant operations regardless of wire lengths.
4. Transmission at a speed of 3 meters per minute, and this is the fastest speed among all hand-driven hauling devices.
5. Wire rope can be used at any working temperature degrees.

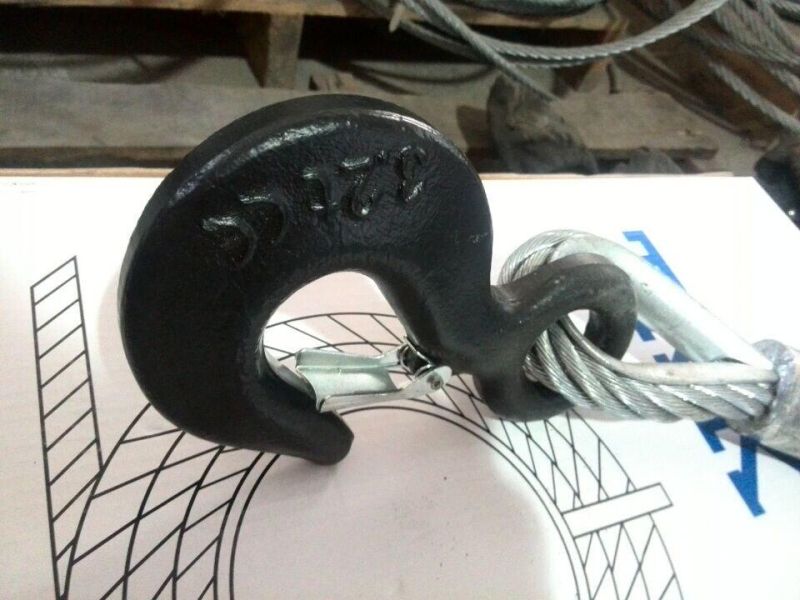

6. Equipped with a safety hook, preventing wire rope from coming off while operation.
7. Most rationally paned, designed and durably.


Products and Spare Parts

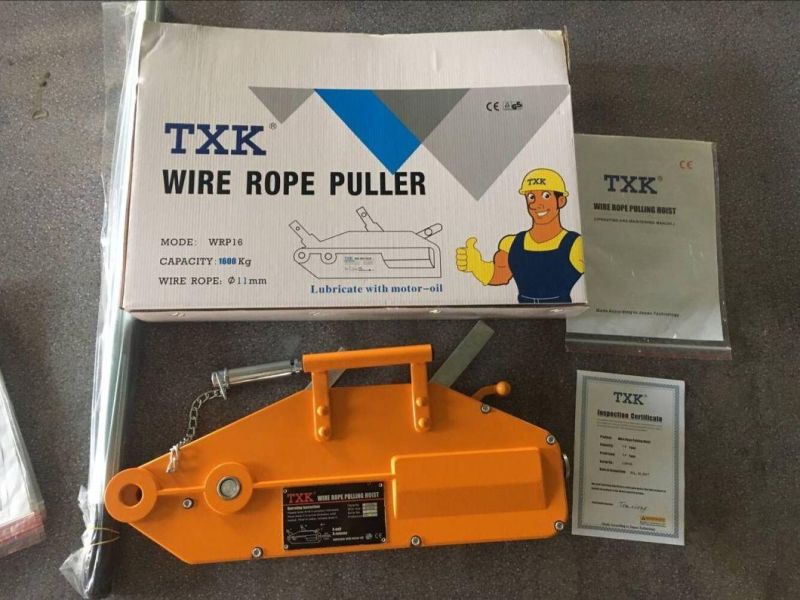

Packing



Where to use?

Light, powerful, easy to move and to use, these machines make it possible to solve the numerous pulling and lifting problems in a practical and safe manner.
Construction:
Dam structures-pulling of frame
Laying of steel of concrete pipe
Concrete pile laying
Seat pile pulling
Combine of fume tube

Railway:
Pulling of rail
Removal of van or wagon
Laying of track
Shunting and maintenance of rolling stock

Shipbuilding
Man oeuvering of locks
Stowing of cargo
Shipping of dinghies

Transport
Positioning of boiler
Machines
Maintenance
Loading of car
Emergency
Loading and unloading of bulky and heavy packages
