• Model NO.：MT-FP30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Laser Marking
• Laser Pulse Frequency：20-80kHz
• Beam Quality：<1.6m2
• Peak Laser Power：5W,10W,20W,30W
• Marking Speed：<8000mm,S
• Marking Depth：<=0.5mm
• Repetition Precision：±0.01mm
• Min.Line Width：0.02mm
• Min.Character：0.2mm
• Cooling Mode：Air Cooling
• Graphic Formats Supported：Plt, Dst, Ai, Dxf, BMP, JPG, CAD, CDR, Dwg
• Transport Package：Standard Export Wooden Box
• Specification：58kg
• Trademark：mactron
• Origin：Guangdong Dongguan
• HS Code：8456110090
• Production Capacity：200set,Month

Basic Info.

Model NO. MT-FP30 Type Optical Fiber Laser Marking Machine Marking Method Laser Marking Laser Pulse Frequency 20-80kHz Beam Quality <1.6m2 Peak Laser Power 5W/10W/20W/30W Marking Speed <8000mm/S Marking Depth <=0.5mm Repetition Precision ±0.01mm Min.Line Width 0.02mm Min.Character 0.2mm Cooling Mode Air Cooling Graphic Formats Supported Plt, Dst, Ai, Dxf, BMP, JPG, CAD, CDR, Dwg Transport Package Standard Export Wooden Box Specification 58kg Trademark mactron Origin Guangdong Dongguan HS Code 8456110090 Production Capacity 200set/Month

Product Description

Jewelry Ring Bracelet Fiber Laser Marking Machine 2020 Newest Auto Focus Laser Metal Engraving ,achine

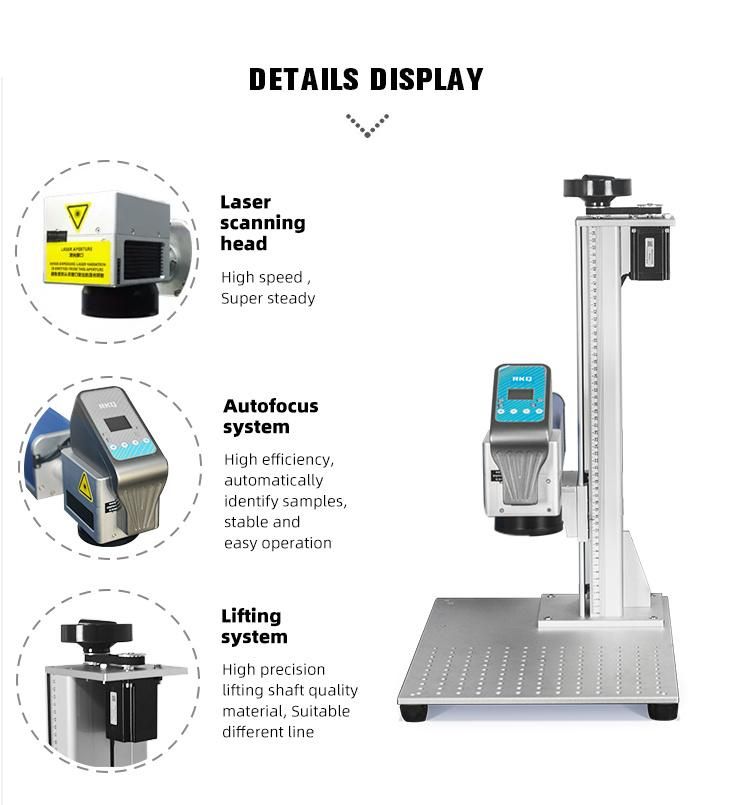

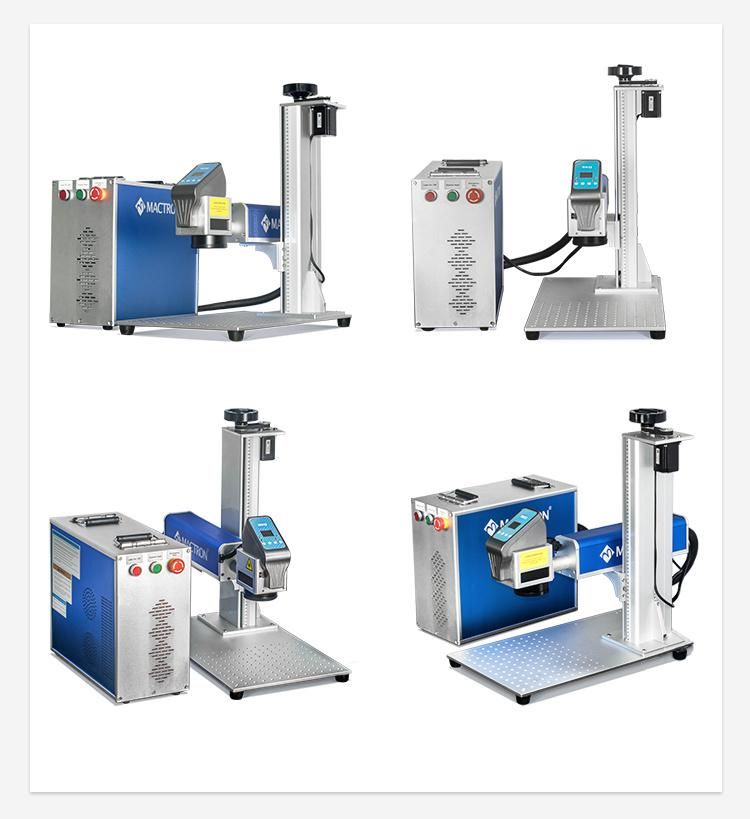

1.DETAILS DISPLAY

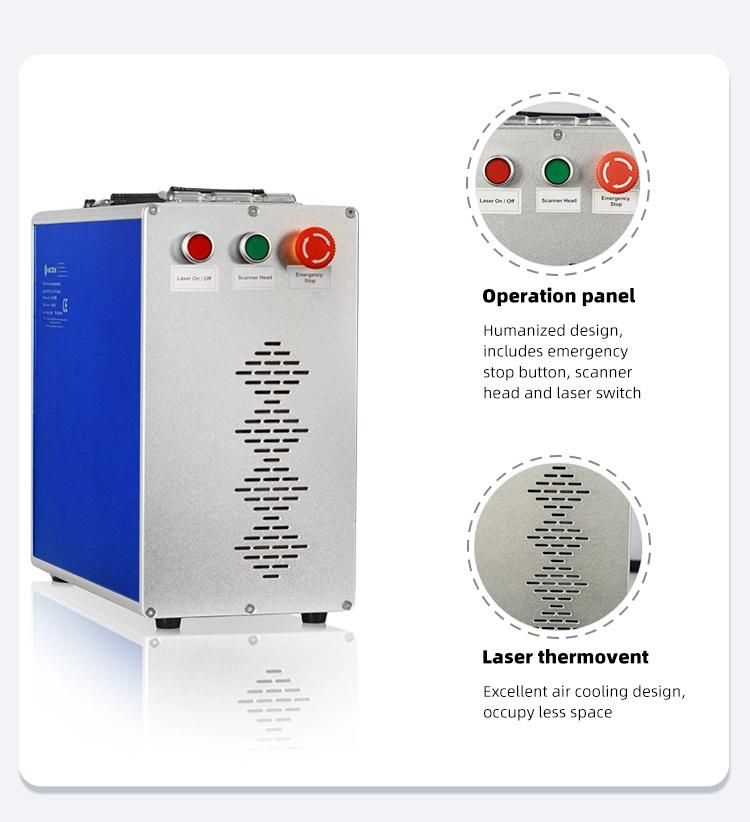

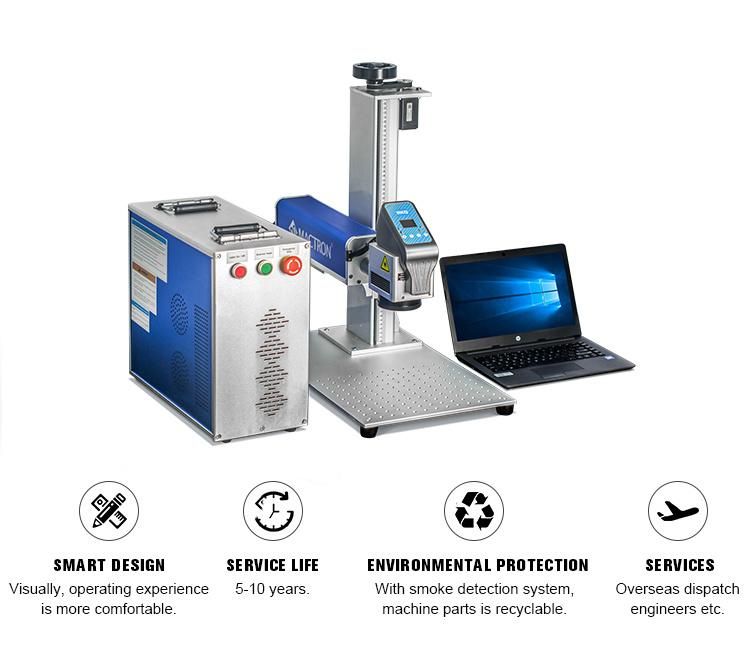

Focusing laser marking machine adopts compact aluminum cabinet and occupies little space. It is adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, endowed with the qualities of small volume, quick speed and easily marking on big objects surface. It can automatic focusing and save time, improve the production efficiency.

Model	MT-FP10/20/30/50
Peak Laser Power	10W/20W/30W/50W
Wavelength	1064nm
Processing Area	70*70MM/110*110MM/175*175MM/300*300MM(Optional)
Frequency Range	20-200Khz
Beam Quality	<1.6M2
Laser Source Lifetime	100000h
Marking Speed	<8000MM/S
Marking Depth	≤2MM
Repetition Precision	0.01MM
Min.Line Width	0.03MM
Min.Character	0.2MM
Cooling Mode	Air Cooling
Lifting Height	100-500MM(700MM)Optional
Graphic Formats Supported	PLT,DST,AI,DXF,BMP,JPG,CAD,CDR,DWG
Operating temperature	10ºC-40ºC
Warranty	1 Year
Humidity	5% to 85% (Free of Condensed Water )
Gross Power	<500W
Power source	AC110V/220V± 10%, 50/60HZ

 The machines can satisfy marking applications like metal laser marking, plastic laser marking in the fields of food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen & bathroom hardwares, shells of watches, medical apparatus and instruments, tools' fittings, electronics and other industries, auto spare parts and other industries.
MT-FP series portable laser marker has the advantages of low materials consumption, non-toxic, and pollution-free.

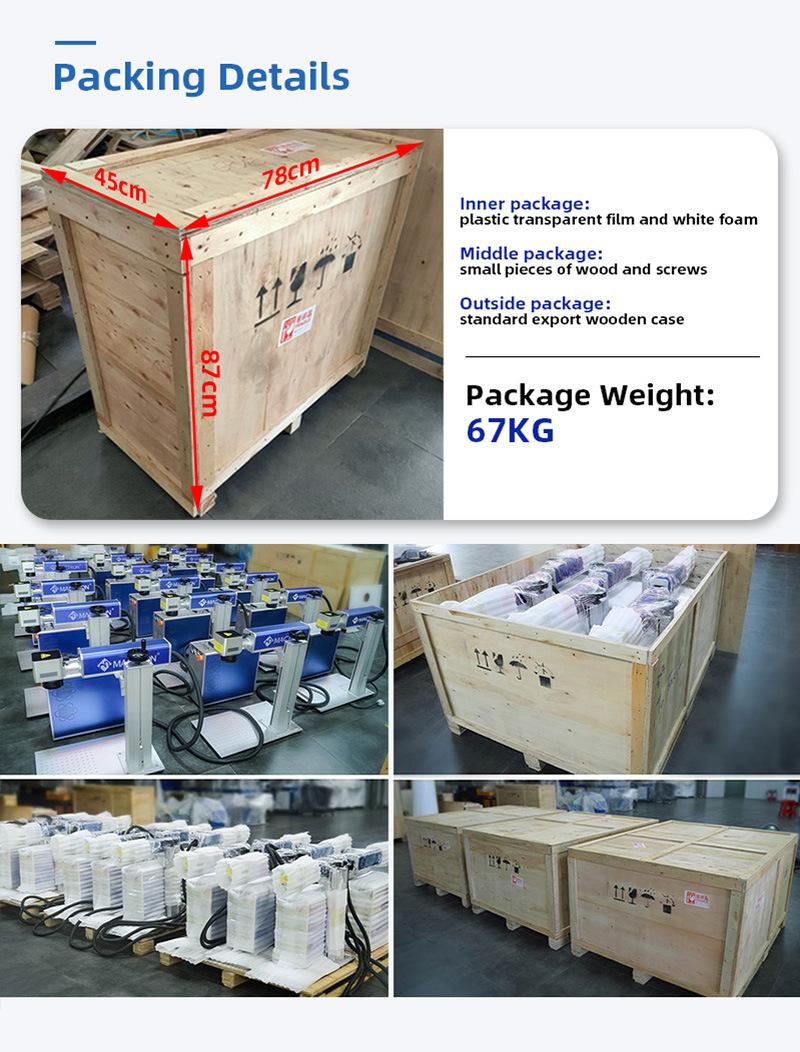

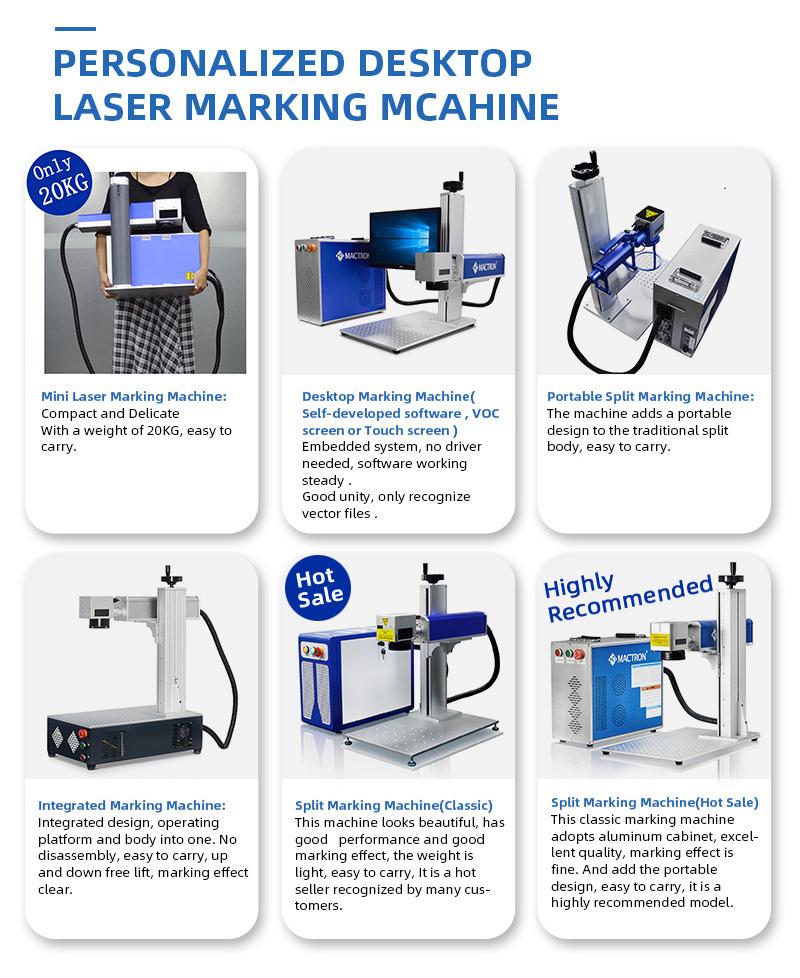

2.PACKING DETAILS   4.RELATED PRODUCTS
 3.CERTIFICATION



4.ABOUT USDongguan Mactron Technology Co., Ltd is a modern professional Hi-Tech enterprise, specializing in R&D, manufacturing, marketing of Laser Marking Machine, Laser Cutter and Laser Engraver Machine, Laser Tube, Laser Power Supply, Laser Optics, and accessories etc.
Mactron's mainly product is including:
Laser Cutting Machine, Laser Engraving Machine, Laser Marking Machine, Mini Laser Engraver, CNC Laser Cutter, YAG Laser System, Diode Pump Laser Equipment, Co2 Laser Tube, Laser Focusing Lens, Laser Reflector Mirror, Laser Power Supply, Laser Cooler Unit, Laser Scanner Head, Laser Control System, Laser Cutting Head, Beam Expander, Red Pointer, Krypton Lamp and accessories etc.
Mactron Technology's business tenet is "Do Honest Bussiness ".
Mactron Technology's managerial spirit: "Solidarity, Exertion, Truthfulness, Innovation"

5.FAQ
 Q: How to Install the machine?
A: After received our machine, customers do not need to install it and can use it directly.

Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser printing machine before can still operate it very well. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.

Q: In case machine exists the problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of machine exists the problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.

Q: What's package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by the waterproof plastic bag.

Q: What's delivery time?
A: Generally speaking, lead time is 5-7 working days after receiving the payment.

Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.

Q: What're consumables for fiber laser marking machine?
A: It does not have consumable. It's very economical and cost-effective.
