• Model NO.：LF1530
• Structure Type：Gantry Type
• Laser Classification：Solid Laser
• Laser Technology：Laser Vapor Cutting
• Laser Source：Ipg
• Transport Package：Wooden Boxes
• Specification：working size: 1300*2500mm
• Trademark：Lansen
• Origin：China
• HS Code：8456110090
• Production Capacity：300sets,Month

Basic Info.

Model NO. LF1530 Structure Type Gantry Type Laser Classification Solid Laser Laser Technology Laser Vapor Cutting Laser Source Ipg Transport Package Wooden Boxes Specification working size: 1300*2500mm Trademark Lansen Origin China HS Code 8456110090 Production Capacity 300sets/Month

Product Description

1KW 1.5KW Fiber Laser Cutting Machine 1325 1530 CNC Laser Cutter

LF1530 precision fiber laser cutting machine using imported Japan AC servo drive motor drive system, the machine kinematics grinding stage screw drive, linear guide rail to ensure high-speed equipment, high-precision, high reliability.

Widely used in glasses, electronics, appliances and other precision machinery, hardware, microelectronics industry.



Metal Laser Cutting Machine Features:

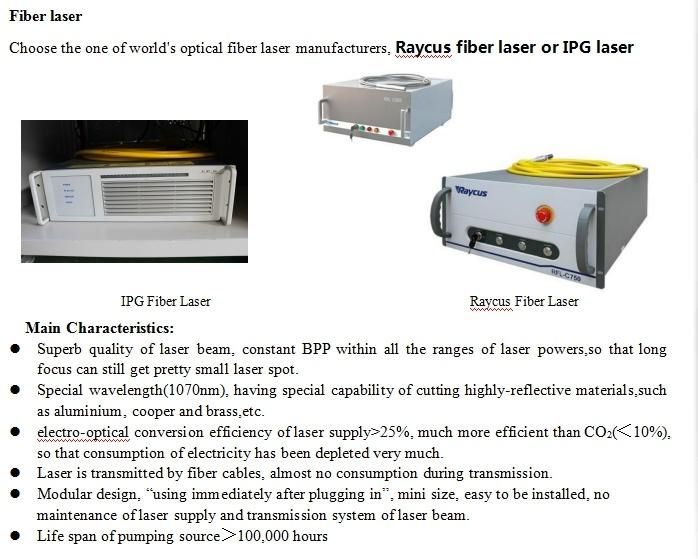

1. It adopts advanced branded optical fiber laser core technology,good optical mode,stable performance.
2. High efficiency of photoelectric conversion,twice of domestic laser source.
3. Low heat of laser source,only needing 5P water cooling machine,saving electricity.
4. The gantry flying light path design,light operation,saving about 40% electricity than competitors.
5. Achieve a perfect cutting effect by only blowing compressed air during processing,which can largely reduce costs of auxiliary
gas such as Oxygen.Nitrogen about thousand dollars,
6. Equipped with centralized lubrication system to make the machine run more stable.
7. Axial positioning accuracy of workbench: ≤±0.03mm/m
8. Repetitive positioning accuracy of workbench: ≤±0.03mm/m

Parameters:

Model	LP-M1530F
Work size	1500*3000mm
Laser type	Fiber laser
Laser working medium	Fiber
Laser wavelength	1070 nm
Rated output power	1000W/1500W
Beam quality	<0.373mrad
Table axial positioning accuracy	≤±0.02mm/m
Repeat positioning accuracy table	≤±0.02mm/m
Cutting speed	≤20m/min
XYZ Driving mode	Imported servo motor
Transmission mode	Ballscrew
Power Ratings	Three-phase AC 380V 50Hz
Equipment Weight	3200Kgs



Optical parameter	1000W/1500W
Operational mode	CW,QCW
Wavelength of the center radiation	1070-1080nm
Standard power output	500W
Optical quality	4mm*mrad
SPD speed	5kHz
Optical fiber diameter	≥50μm
Output power stability (long-term)	±2%
Power supply	400-460VAC
Power consumption (including supporting annex)	33

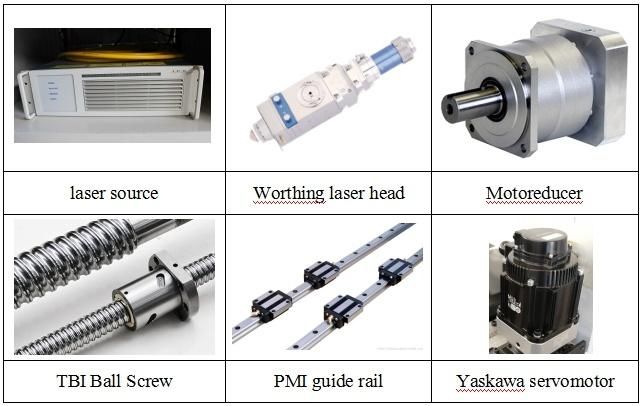

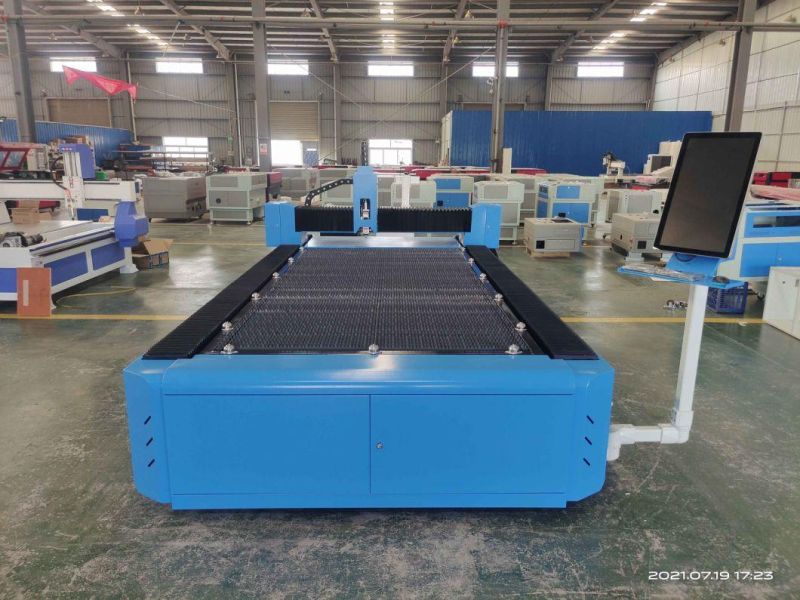

Machine details:



Application:
LF1325 1530 Fiber Laser Cutting machine:

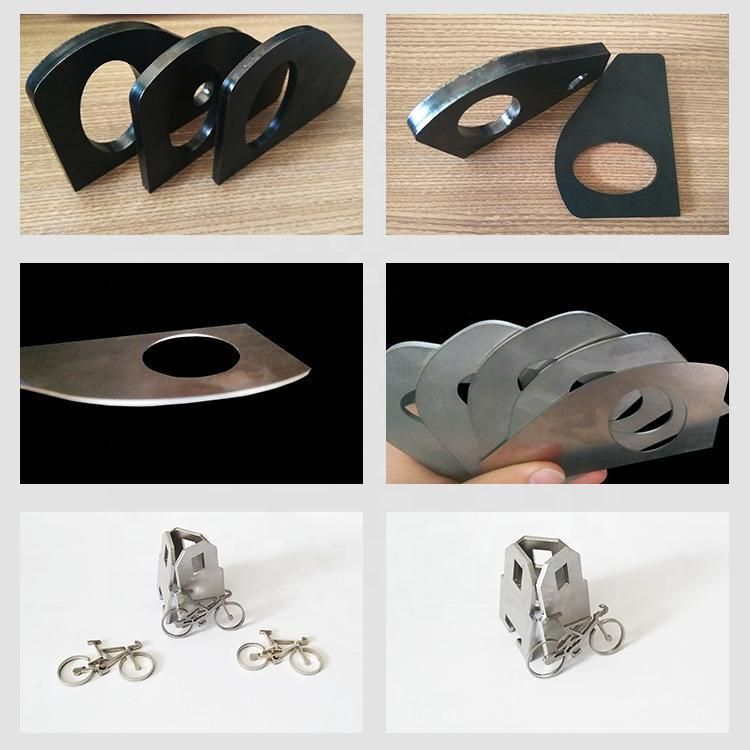

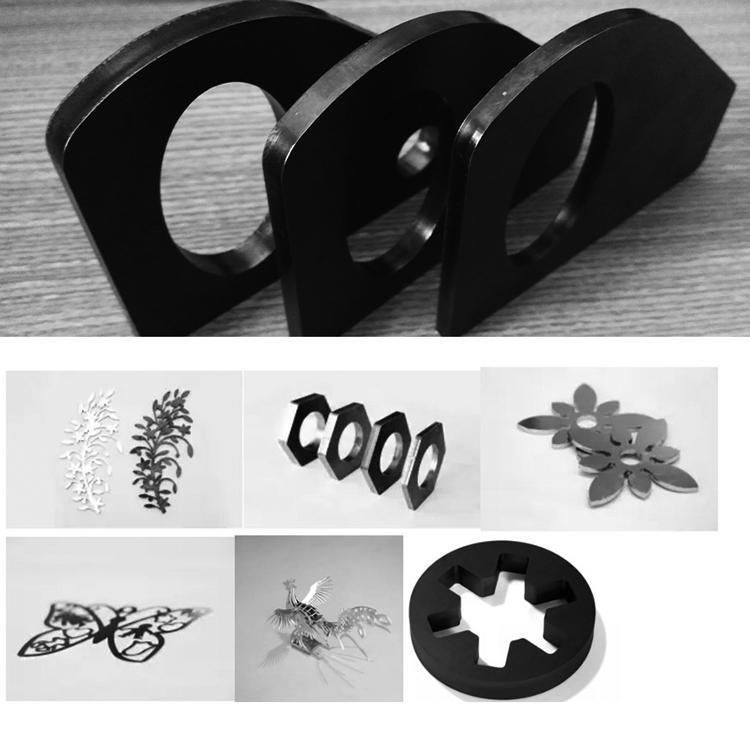

Professional used to cut thin sheet metal, in a variety of high quality 0.5-12 mm carbon steel sheet cutting, also cut stainless steel plate, aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, automobile, food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, and other fields.

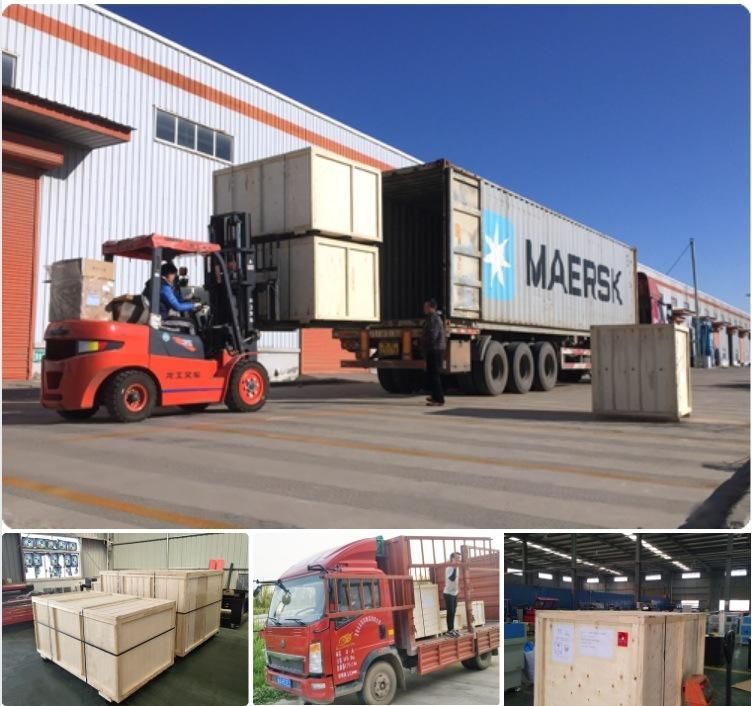

Packaging&Shipping:

Trade Terms: EXW, FOB, CNF, CIF, DDU, DDP, etc.
Supply Ability: 100 sets / Month
Port: Qingdao
Payment: T/T (Bank Transfer), western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail: International standard plywood export box
Shipping: BY SEA, BY LAND, BY AIR OR BY EXPRESS

Warranty:1. InstallationAfter the machine reach the buyer's site,the engineers from the seller are responsible for machine installation and commissioning by using the special tools under the help of the buyer. And then start training the workers. Tickets, hotel and food charge need to afford by buyers
2. Training

• The common protection knowledge of laser safety
• The basic principle of laser module and the structure of laser cutting machine
• The operation skills of fiber laser cutting machine
• Equipment operation and the application notice
• Skills of equipment daily maintenance,laser module adjustment and spare parts replacement.
• Training time is about 5 to 10 days.

3. After sales service     · 2 year warranty for the whole machine     · 2 years warranty for the fiber laser source     · Life-long maintenance    · In the warranty period,if it break down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free,the parts need to be replaced will be provided from seller for free(Except the Consumable parts).     · After the warranty period expired,the buyer only need to pay the actual maintenance cost.     · Lansen will pay a return visit all customers for several times one year,and will provide technical support service anytime, and also provide spare parts anytime the buyer want.      · After sales service response time: quick response within 8 working hours, after receive the repair call, our after sales engineer will reply as soon as possible.
