Basic Info.

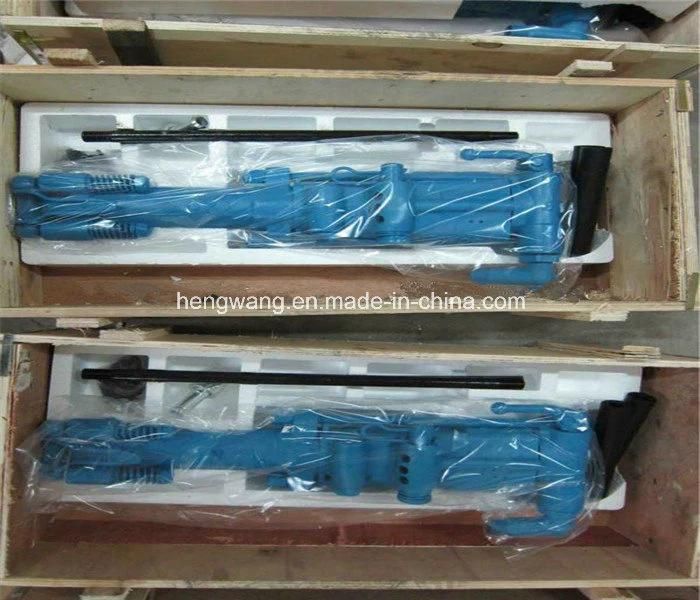

Model NO. yt28 Drilling Way Compound Model Yt28 Rock Drill Weight 28kg Length 661mm Cylinder Dia φ80 (mm) Piston Stroke 60 (mm) Working Pressure 0.4~0.5 (MPa) Air Pipe (Inner Dia ) 25mm Water Pipe (Inner Dia ) 13mm Drill Bit Dia 34-42mm Shank Dimensions(Hex*Length) 22*108+1mm Transport Package Wooden Case Specification CE Trademark HW Origin Jining, China HS Code 8430390000 Production Capacity 50000set/Month

Product Description

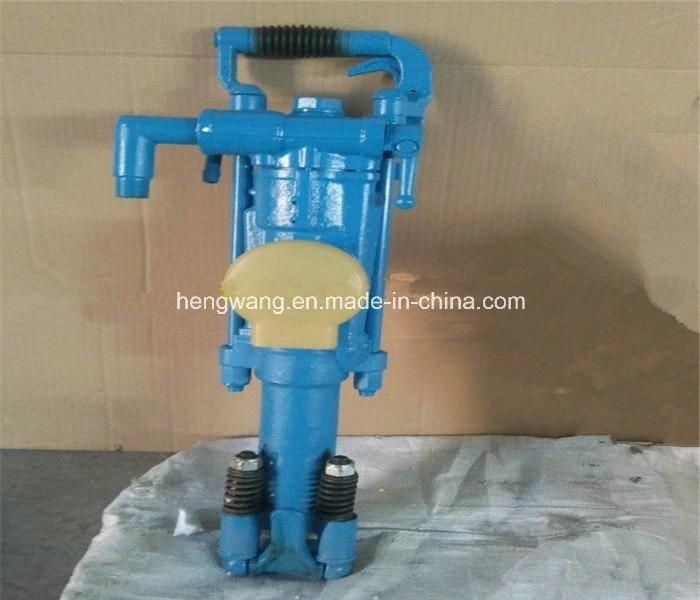

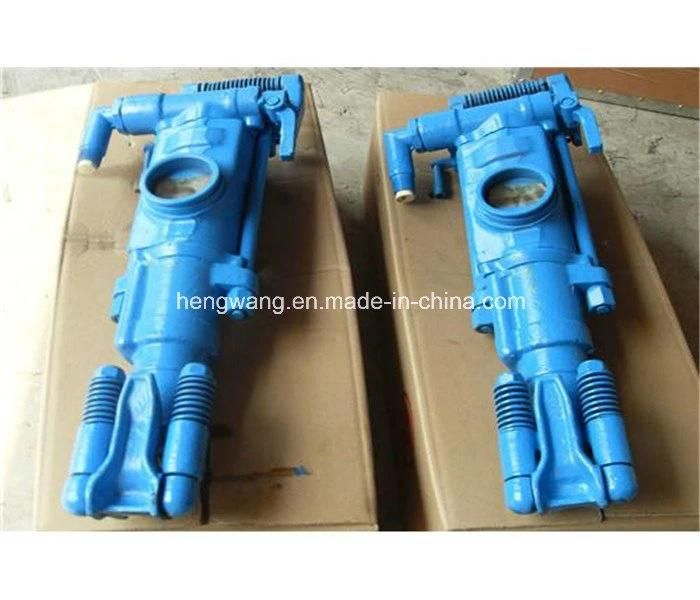

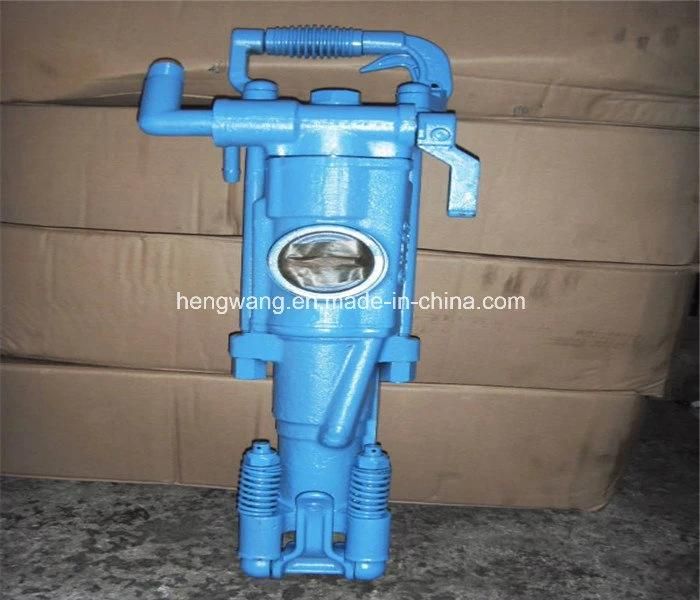

Pneumatic Tools Yt28 Air Leg Rock Drill use for Mining

Product Introduction

 YT28 Rock Drill Feathures:

1.The rock drill is  a kind of high efficiency air leg rock drill machinery.
2.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility.
3.It is suitable for drilling and blasting under various of rocks and any direction angles.
4.Blast hole dia is 34-42mm, drill hole depth is 5m.
5.This machine may match with FT160BD short air leg of FT160BC long air leg.

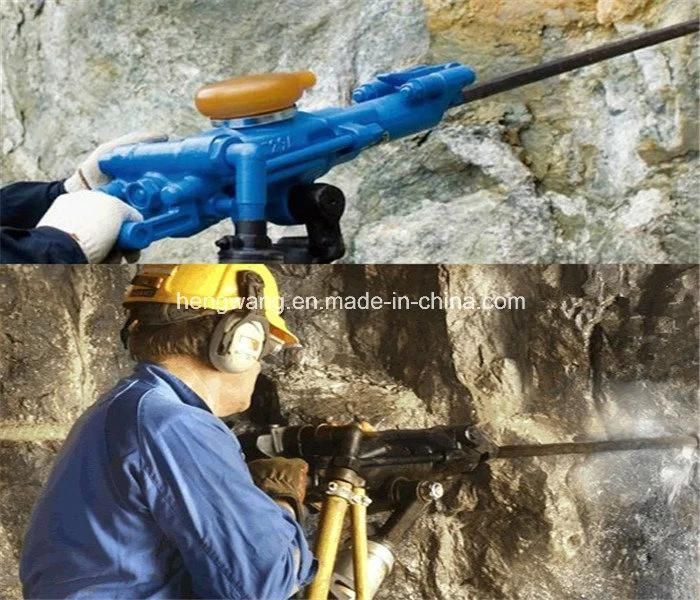

 YT28 Rock Drill Application:

It is mainly used for diging into mine laneway and blasting holes in all drilling works. It is indispensably importance machine tool in metallurgy, coal, railway, traffic, water conservancy construction and national defence stone project.Blast hole dia is 34-42mm,drill hole depth is 5m. This machine may match with Model FT160 air leg.

Technology Parameters


Weight	≈ 26 kg
Length	661mm
Cylinder dia	80mm
Piston stroke	60mm
Air pressure	0.4- 0.63MPa
Impact frequencey	≥ 37Hz
Air consumption	≤81L/S
Air pipe (inner dia )	25mm
Water pipe (inner dia )	13mm
Drill bit dia	34-42mm
Shank dimensions(hex*length)	22*108+1mm
