• Model NO.：Standard dry core drill bit
• Specification：Dia 25mm-132mm
• Trademark：BSP TOOLS
• Origin：China
• HS Code：8207191000
• Production Capacity：10000,Year

Basic Info.

Model NO. Standard dry core drill bit Specification Dia 25mm-132mm Trademark BSP TOOLS Origin China HS Code 8207191000 Production Capacity 10000/Year

Product Description

BSP tools manufacture supply Standard dry core drill bit with 1 year warranty. We devoted ourselves to diamond tools many years,covering most of Europe and Australia market. We are expecting become your long term partner in china.

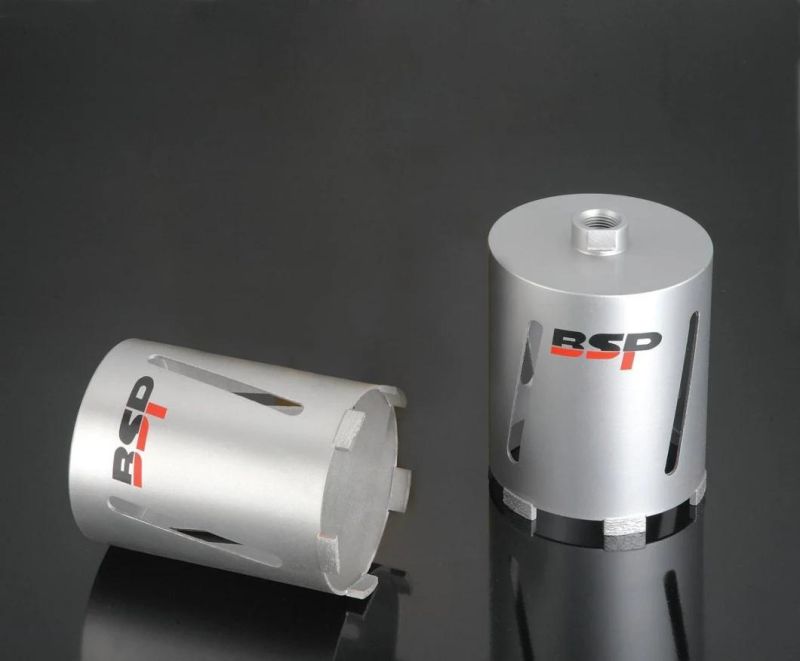

Standard dry core drill bit

1.Product Introduction of the Standard dry core drill bit
Our Standard dry core drill bit could cut clean accurate holes through bricks & blocks, producing exact size holes with almost no break out. Our Standard dry core drill bit are ideal when drilling holes in brick and block. The tubes on the diamond bits are slotted to aid in both cooling of the core bit and removal of the cuttings.They are engineered with turbo segments that allow for fast drilling and aid in heat dissipation.

2.Product Parameter (Specification) of the Standard dry core drill bit

INCH	DIA.	W/L	T/L	SEG.SIZE	SEG.QTY
1"	25mm	300mm	330mm	17X3.0X10mm	3PCS
1-1/4"	32mm	150mm	165mm	17X3.0X10mm	3PCS
1-1/2"	38mm	150mm	165mm	17X3.0X10mm	4PCS
2"	52mm	150mm	165mm	24X3.5X10mm	3PCS
2-1/4"	57mm	150mm	165mm	24×3.5x10mm	3PCS
2-1/2"	65mm	150mm	165mm	24×3.5x10mm	4PCS
3"	76mm	150mm	165mm	24×3.5x10mm	4PCS
4"	102mm	150mm	165mm	24×3.5x10mm	5PCS
5"	127mm	150mm	165mm	24×4.0x10mm	6PCS

3.Product Feature And Application of the Standard dry core drill bit
Our Standard dry core drill bit with good quality diamond and good coring value. The core bit thread is 1/2BSP or M14. Our Standard dry core drill bit are engineered with turbo segments to provide you with the fastest drilling and longest life in concrete, brick and block applications.

4.Product Details of the Standard dry core drill bit
BSP tools manufacture provide Standard dry core drill bit is mainly diameter from 25-127mm for construction market. The Segment height could be 10mm. The core bit thread is 1/2BSP or M14.BSP TOOLS Special length and segment shape are available which is according to the customer request .

5.Product Qualification of the Standard dry core drill bit
Our Standard dry core drill bit has ISO:9001 quality certificate

6.Deliver,Shipping And Serving of the Standard dry core drill bit
The Standard dry core drill bit samples can be sent within one week and bulk order can be finished within 35 days . Shipping by air or sea all is ok. We provide customer minimum 1 years warranty.

7.FAQ

Do you have MOQ?
OEM is 50pcs MOQ; ODM 100pcs MOQ.

What about the color of diamond core bit?
We have standard color covering red, orange, black, white blue and Grey. Other color are also available according to customer RAL code. But need minimum quantity 50pcs.

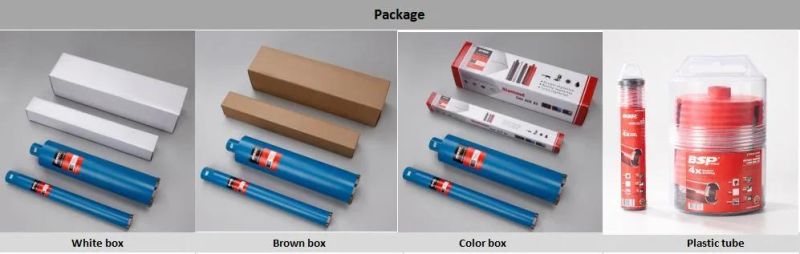

What is the package?
BSP TOOLS offer color box ,white box and brown box .

What information you need to provide the price?
Better tell us the power of your drilling motor/hand held drilling machine/angle grinder and RPM request.
