• Model NO.：DW1325
• Laser Technology：Laser Flame Cutting
• Laser Power：90W 130W Reci
• Machine Application：Non Metal, Such as Wood, Acrylic, MDF, Leather etc
• Machine Warranty：24 Months
• Cutting Thickness：0-30mm
• Graphic Format Supported：Ai, BMP, Dst, Dwg, Dxf
• Control Configuration：Rdcam
• Table：Honey Nest or Blade Table
• Machine Package：Veneer Case
• Certification：Ce, FDA
• Motor：Servo or Stepper Motor
• Machine Name：Laser Cutting Machine
• Working Area：1300X2500mm or Customized
• Machine Color：Can Be Customized
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine size can be customized
• Trademark：Dwin
• Origin：China
• HS Code：8456100090
• Production Capacity：150 Sets Per Month

1ModelDW1325 laser engraving machine used2Working area130cm*250cm 3Laser power40W/60W/80W/100/1504Laser typeCO2 sealed laser tube,water-cooled5Engraving speed0-60000mm/min6Cutting speed0-10000mm/min7Power supply220V±10% /50HZ , 110V±10%//60HZ8Min. shaping characterLetter 1.0 x 1.0mm9Graphic format supportedBMP, PLT, DST, DXF, AI,CDR10Software supportedCorelDraw, PhotoShop, AutoCAD11Laser Output Control1-100% software setting12Highest Scanning Precision2500DPI13Resolution ratio< 0.01mm14Location precision<0.01mm15Working temperature5°C-40°C16Operating humidity5%-95%(without condensed water)17Equipment Dimension1420mm*1100mm*1070mm/57in*43in*42in (L*W*H)18Net Weight300kg19Optional partsUp-down worktable, Red light pointer, Auto focus, Rotary device

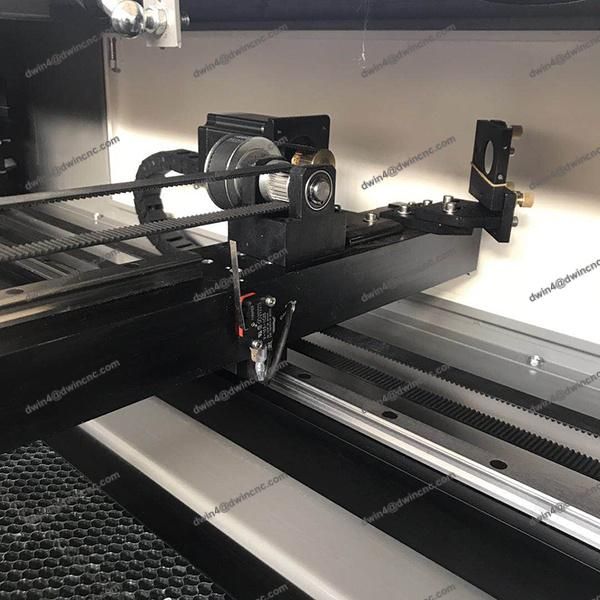

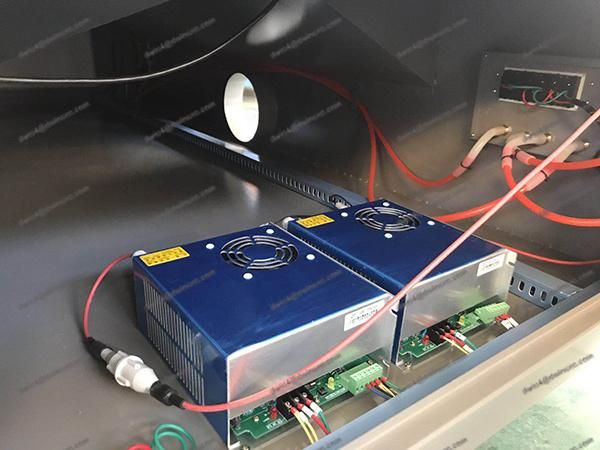

Machine parts

1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointerrealizes the exact position without laser.
10) Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
11) Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
12) Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
13) Optional Rolling and Automatic Feeding System, realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.
14) Optional Imported Ball Screw Rod, with high speed and accuracy, it is smoothly for laser head to move speedily and laser beam to reflect with high accuracy.



Applicable materials:

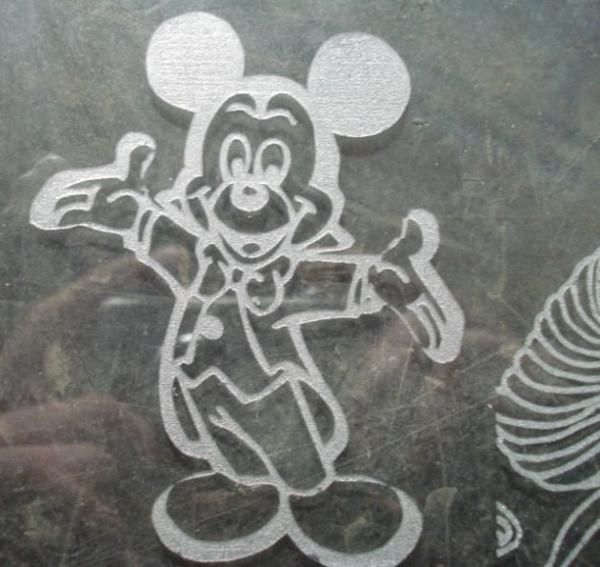

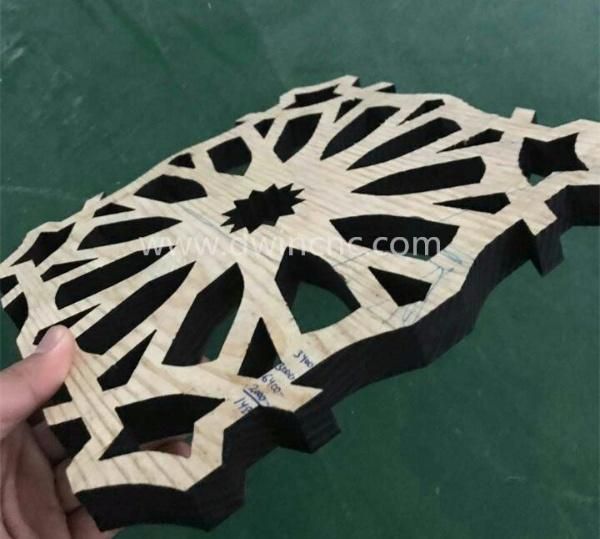

Co2 laser machine is for Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc

Applicable industry:

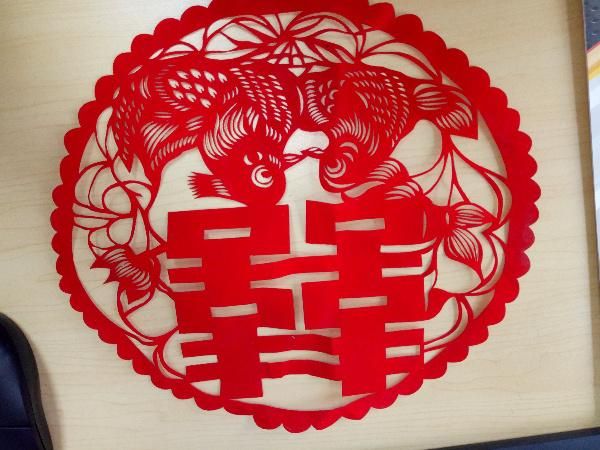

Laser Engraving Machine is for billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc






Our Services:

· Two years  guarantee period for product quality. (man made damaged is negotiable).

· Lifetime maintenance and spare parts supply.

· Free design of fixtures as customers required.

· Free training for machines installation and operation of the staffs.

· Free samples marking of customer provided.


DWIN Clients

What should I do if I don't know how to use?

* We have free training for1-2 days.It is easy to learn.
* The best way is that we offer prefessional engineer to taech you face to face.
* If you couldn't come to our company, we will give you menu and video, our engineer teach you online.

How to maintain the machine?

• clear environment
• The temperture can not be high.
• Our guide needs lubricating oil for 2-3 drops about.

If I meet problems ,how can I do ?

• You can contact our salesman directly ,our engineer will check the problem.
• During the warranty, maintainance is free.
• Although over the warranty,we also offer the technology support in free.

What are the training content ?

• Training data
• Safety instructions
• Basics in theory
• Machine structure
• HolyLaser software
• Machine handling
• Trouble shooting

Warmly welcome you visit our factory!!!

Warmly welcome you contact us directly for more information!
