Basic Info.

Certification CE, ISO9001:2008 Use Windows Transport Package Standard Packing Specification YF180 Trademark kebeln Origin China HS Code 8477209000 Production Capacity 1000PCS/Year

Product Description

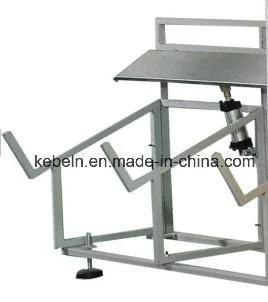

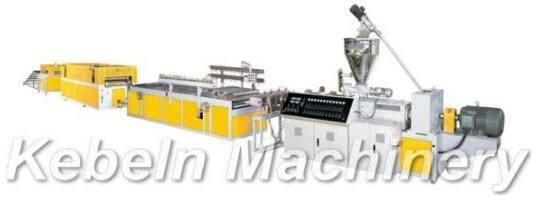

This extrusion line is special for PVC DOOR'S & WINDOW'S PROFILE or WPC PROFILE extrusion. The main machine is the Conical Twin-screw Extruder. The accessorial machines of this production line are Vacuum Forming Bath, Traction machine, Cutter and product Stacker. There are different kinds of accessorial machines special designed for different types of profile.

There are all types of conical twin-screw extruders with different capacity from 60kg/h to 700kg/h. There are alternative choices for extruder control system which are PLC control or button control.

Model	YF180	YF240	YF300	YF600	YF900	YF1200
Max. width of board(mm)	180	240	300	600	900	1200
Max. height of product(mm)	150	150	150	150	150	150
Traction force(KN)	2	2	2	30	40	50
Speed of traction(m/min)	0-5	0-5	0-5	0-3	0-2.5	0-2.5
Power of accessorial machines(kw)	35	35	35	30	40	45
Cooling water consume(m 3 /h)	6	6	6	9	12	15
Compression air(mpa)	0.6	0.6	0.6	0.6	0.6	0.6
