Basic Info.

Model NO. RL-P-75 Automation Non-Automatic Computerized Non-Computerized Machine Weight 4.5t Certification CE Speed High Speed Die Rotary Die Rewinder Single or Double Cooling Water Cooling Film Width 1000mm Transport Package Stretch Film Packaging, Wooden Case Specification 5.5m*2.1m*4.7m Trademark RILI Origin Made in China HS Code 8477209000 Production Capacity 10 Sets/ Year

Product Description

Water Cooling Roatary Die Head Double Rewinder Polypropylene PP Film Blowing Machine Blowing Film Width of 1000mm

Main Uses and Characteristics:
1.It is suitable for producing polypropylene packing bags of various sizes(such as packing bags for clothing, food, textile and industrial products, etc.)
2.The cylinder and the screw stem of the extruder are made of high-quality alloy steel after nitrogen treatment, which has the best hardness and corrosion resistance.

Main Technical Variables:

Model	RL-P-75
Screw Diameter	75mm
Quantity&Die Size	Rotating die head , 1pc, Φ180mm(high precision hard chrome plating by quenched and tempered treatment. Material:NO. 45 steel), Rotating way: 360°rotation
Screw L/D	28: 1
Folding width of film	500-1000mm
Single-face thickness of film	0.008-0.15mm
Power of main motor	37kw inverter 380V 50HZ three-phase asynchronous induction motor
Total power	55kw
Max. Output	50kg/hr
Dimension	5.0× 3.0× 4.8m
Weight	4.5T

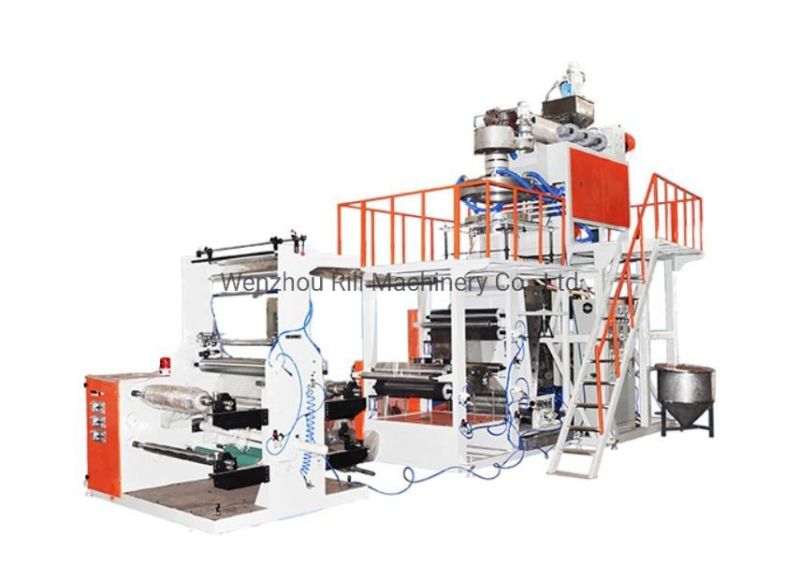

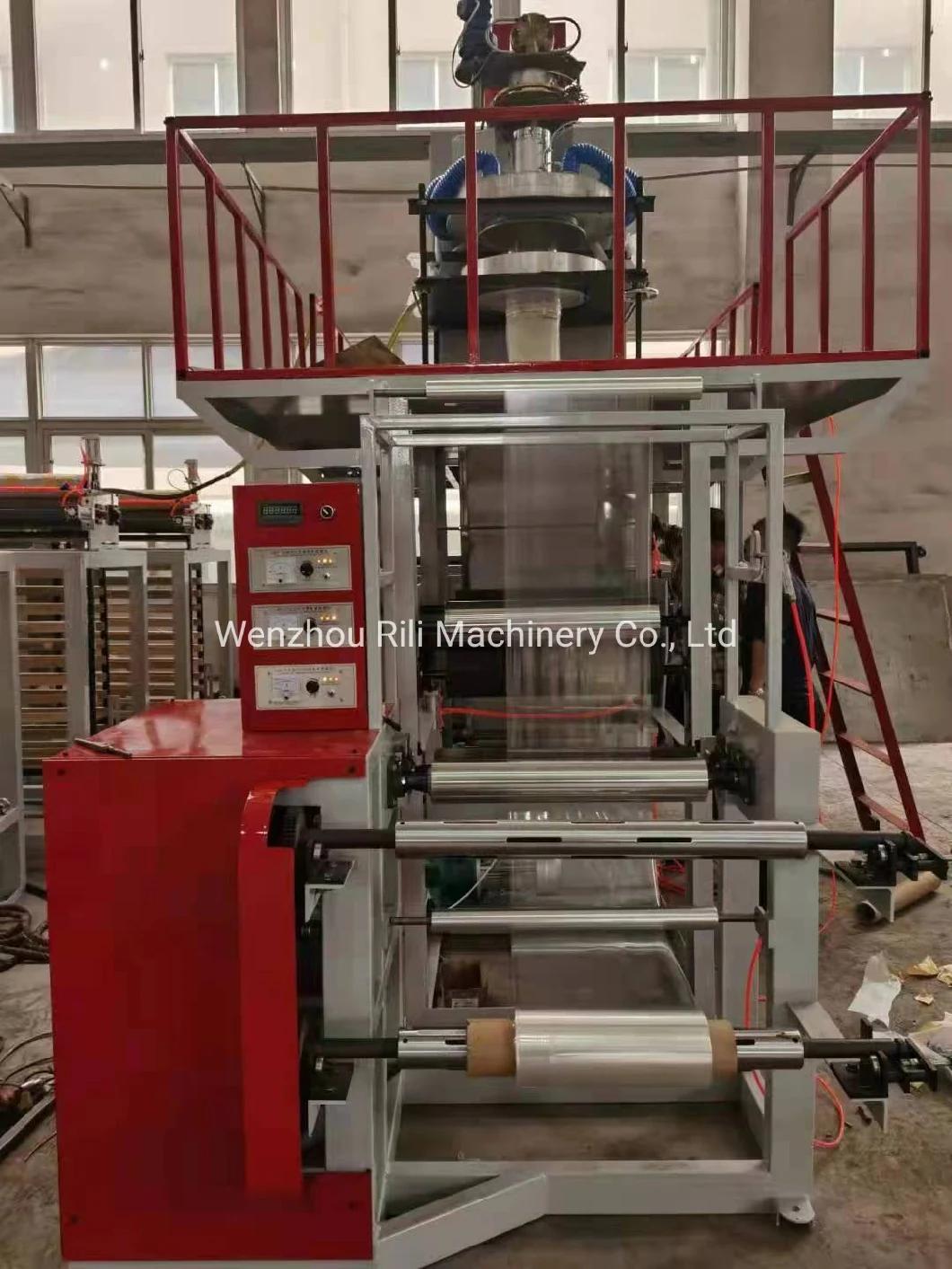

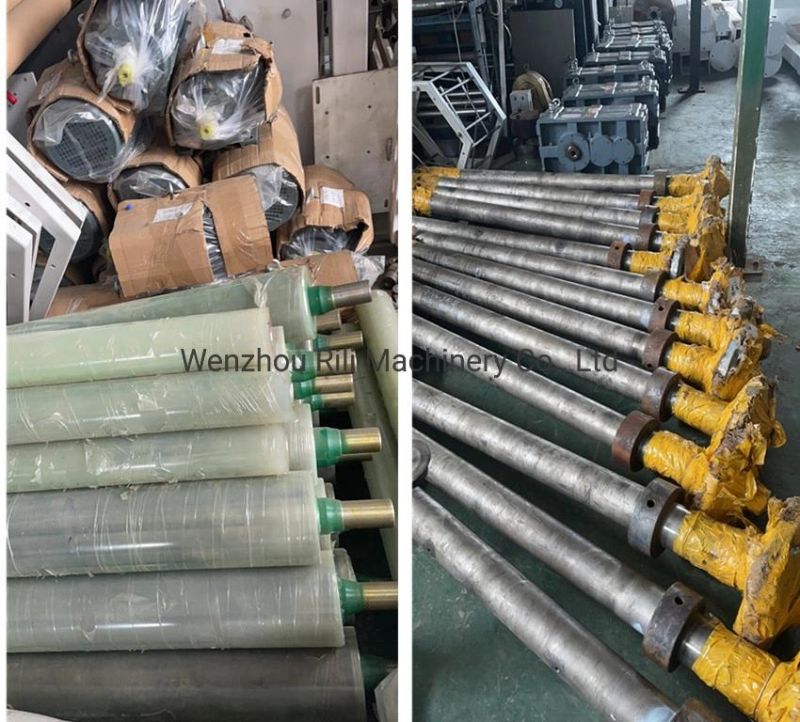

Machine Pictures:





Machine Loading
