Basic Info.

Model NO. MT400 Condition New High Capacity 400kg/Hr Gearbox Vertical Speed 15m/Min Material Bimetallic Motor Weg Inverter Schneider Contactor Carlos Reyes Screw Type Double Screw Application Pipe Profile Vacuum Pump Guangyi Transport Package Wood Specification sgs Trademark middle tech Origin Zhangjiagang City HS Code 84772090 Production Capacity 300kg/Hr

Product Description

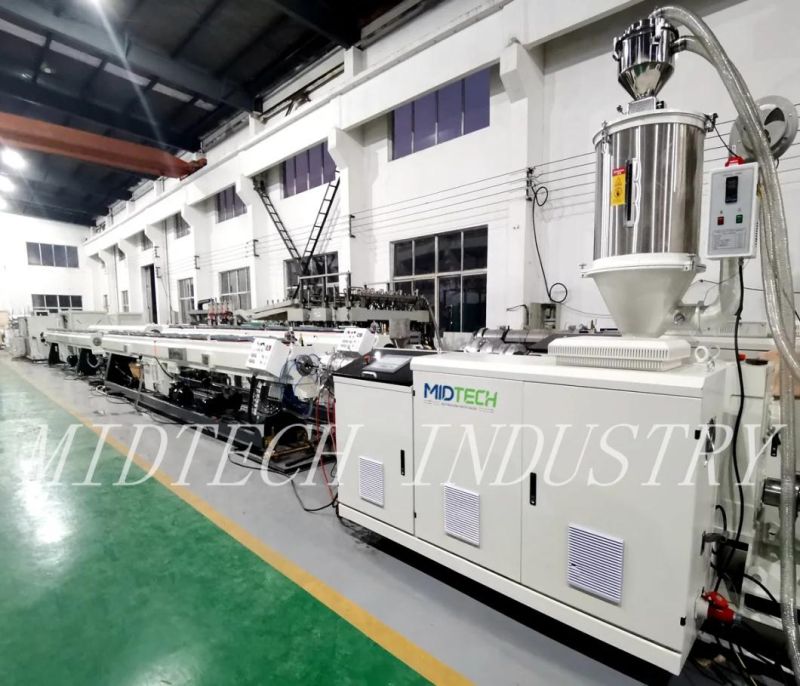

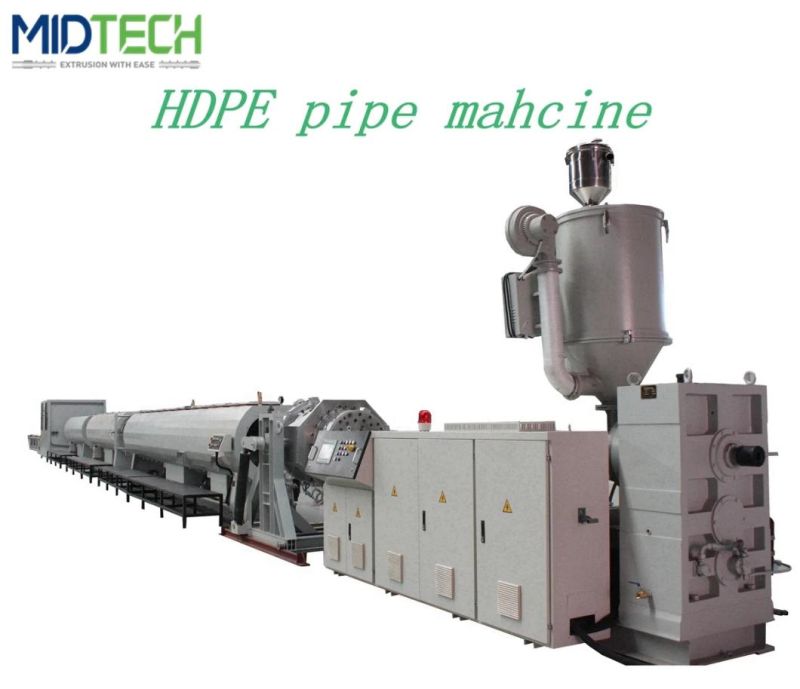

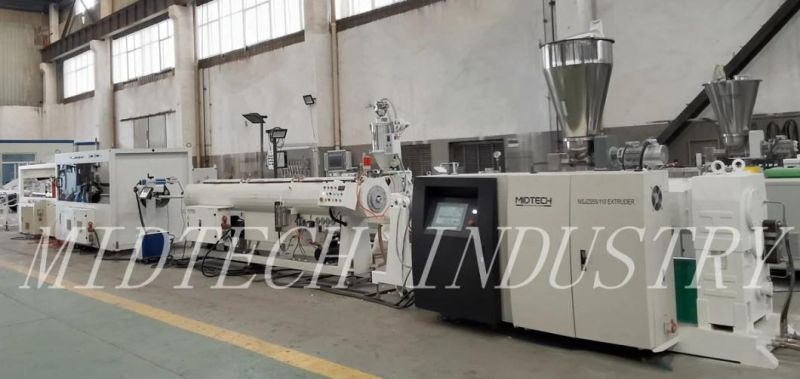

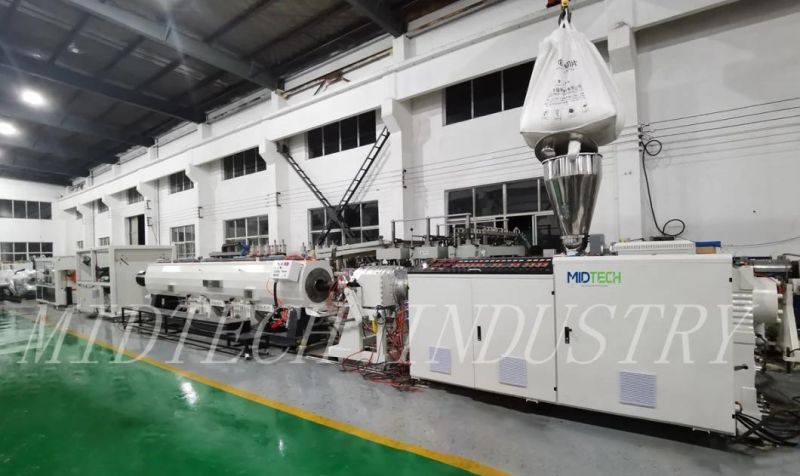

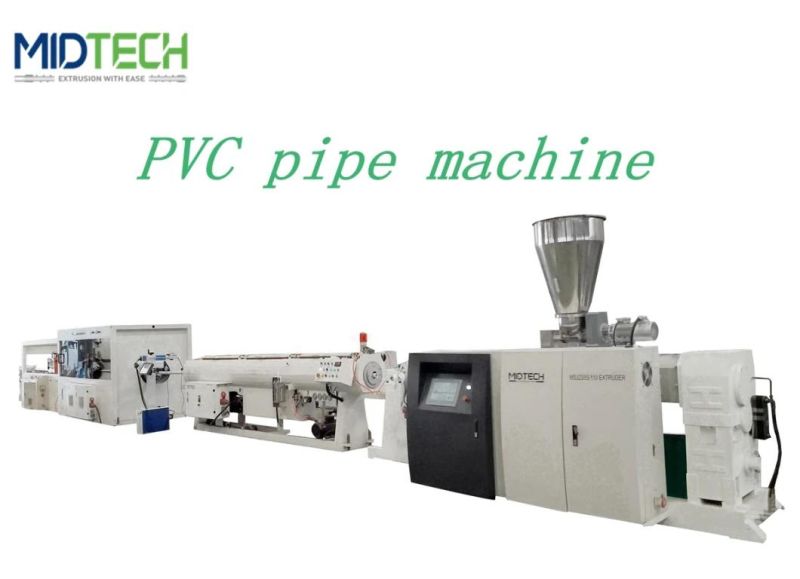

Turn-key project:  Plastic HDPE PE PPR LDPE PVC PEX Water Gas Pipe garden Hose/ spiral Tube Extruder /Extrusion Making Machine Production Line price


Through technology combination and continuous innovation, Midtech pleased to provide energy saving (15% down), high capacity (exceed 25% ), high standard (PLC Intelligence), reliable quality (SKF bearing) PE/LDPE/PPR Extruder and pipe extrusion and production line.

Introduction:

Pipe Diameter	16-63	32-125	75-250	110-450	315-630	315-800
Extruder	45/33	65/33	75/33	90/33	120/33	150/33
Cavity	single strand	single strand	single strand	single strand	single strand	single strand
Downstream	LG63	LG125	LG250	LG450	LG630	LG800
Total power(kw)	70	150	230	380	550	800

Extruder model	SJSZ-50/105	SJSZ-55/110	SJSZ-65/132	SJSZ-80/156	SJSZ-92/188
Driving motor (kw)	15	37	37	55	90
Pipe diameter range(mm)	16-40	20-110	50-200	200-400	400-630
Water pump	3kw	4kw	5.5kw	5.5kw X 2pcs	7.5kw X 2pcs
Vacuum pump	2.2kw X 2pcs	4kw	4kw	4kw X 2pcs	7.5kw 5.5kw X 2pcs
Caliber Length(mm)	5000	6000	6000	8000	6000, 3000
Water cooling tank	No	No	5000	6000	100000
Hauling motor	0.75kw 4pcs	2.2kw	3.7kw	7.5kw	18.5kw
Hauling belt	4pcs	2pcs	2pcs	4pcs	6pcs
Cutting motor	1.1kw 2pcs	2.2kw	3.7kw	3.7kw	3.7kw
Inverter brand	ABB	ABB	ABB	ABB	ABB
Contactor brand	Schneider	Schneider	Schneider	Schneider	Schneider

PART 2 Working flown of the pipe production line


Feeder	• To feed material into extruder;
Extruder	• High torque gearbox with adopts NSK/SKF bearing; • Siemens/WEG original motor achieved global after service; • Up to 30m/min of maximum lineal extrusion speed for small pipes  • Suitable for multi-layers co extrusion from 1-5 layers; • Intelligent PLC controlling system with operation-friendly interface.
Die head	• PCA increased extrusion speed and decrease the cooling length,  quality inner wall surface; • The Bronze bush is wear-resisting and efficiency cooling of pipe surface.
Calibration Tank Spray tank	• Big water flown filtration system • Mechanical Water level and temperature control system
Haul off	• Variant 2-16 claws based on different pipe diameters,  • Equipped with servo control system for wide diameter range.
Cutter	• Chip-free cutter ensuing flat and smooth cutting surface of pipe.
Stacker	• Discharge driving by air cylinder
Winder	• Suitable for diameter from  5mm-110mm

PART 3 Why choose us
