Basic Info.

Assembly Structure Integral Type Extruder Screw Twin-Screw Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Motor Siemens Thickness of The Sheet Max 4mm Extruder Model Sjz80/156 Co-Extruder Sj50/25 Machine Quality Good Export Market Europe, South and North American etc Transport Package Sea Worthy Packing Specification CE ISO Trademark SEVENSTARS MACHINERY Origin China HS Code 8479820000 Production Capacity 50 Sets

Product Description

Product description
The unit is comprised by a twin conical screw extruder and corresponding wave plate forming machine, tractor and cutting machine, can be used for continuously produce structural season resistance UPVC color block igniting plastic cement wave plate, if replacing the relevant component, the line can produce the chequer plank, possess steady molding performance, tight structure, high automation degree



PVC glazed wave roof production line introduction and applications:Wave plate has an excellent corrosion resistance, weather resistance, easy processing, low cost and many other characteristicsm abd is widely used for roof material of workshops, warehouses.
 Equipment lists

1.1)Screw loader for SJZ 80/156 extruder

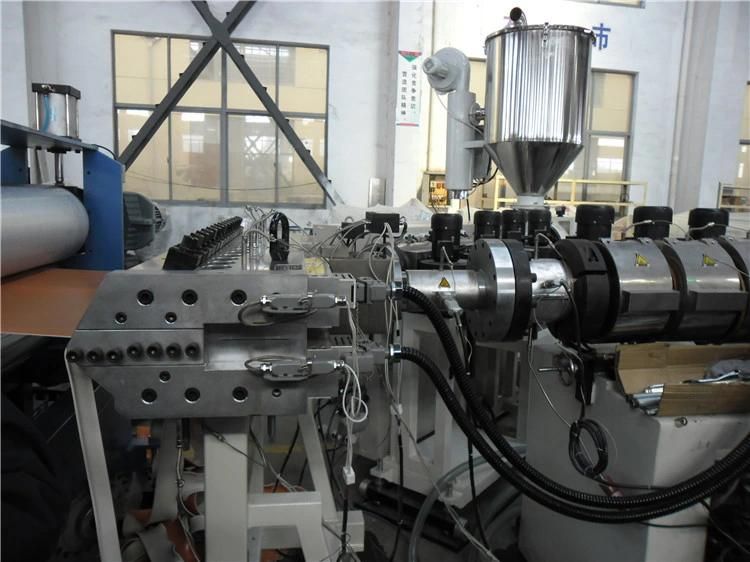

1.2) Conical twin screw extruder	SJSZ-80/156
1.3) Vacuum feeder and drying hopper	STG-75
1.4) Single screw extruder(ASA layer)	SJ-50/30

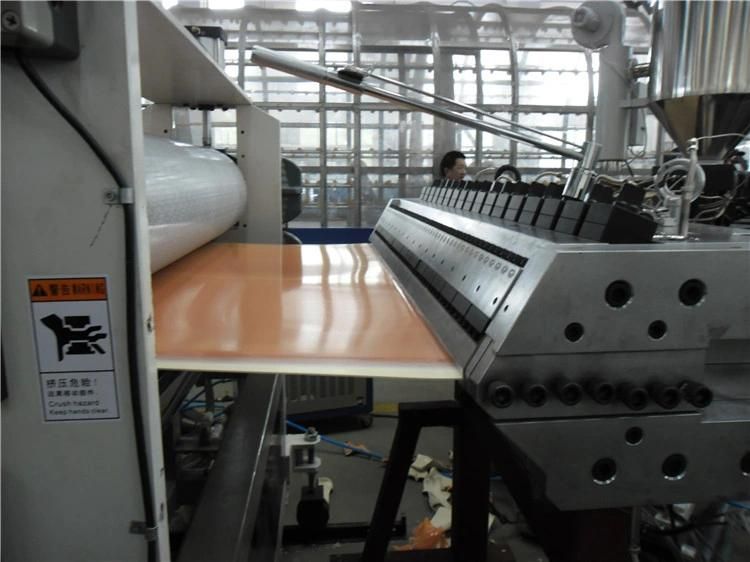

1.5) Mold and distributor	PM1000

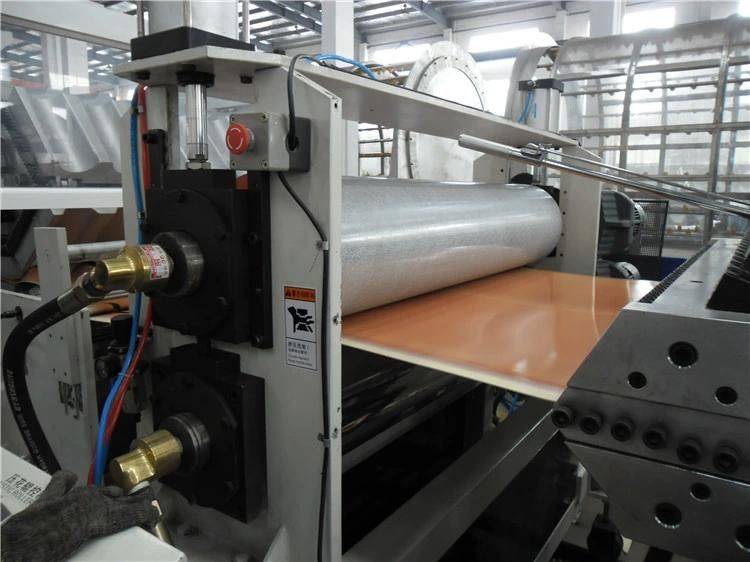

1.6)Two roller embossing calendar	YH-1200
1.7)Temperature controller

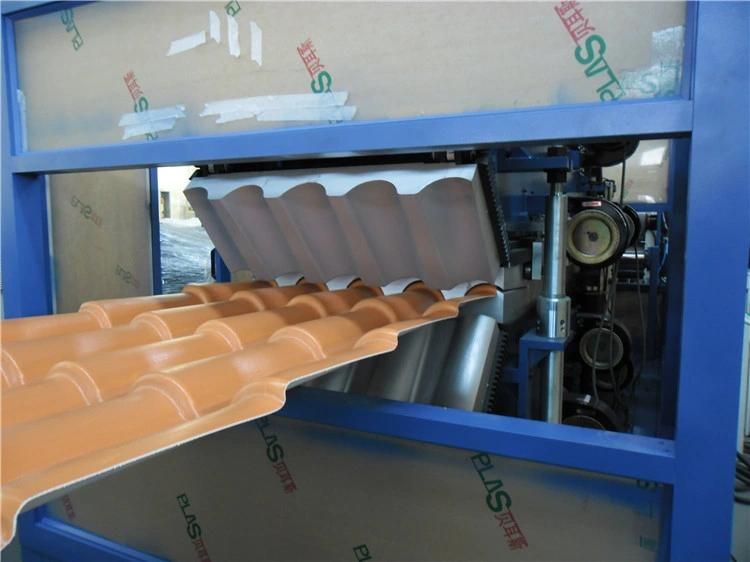

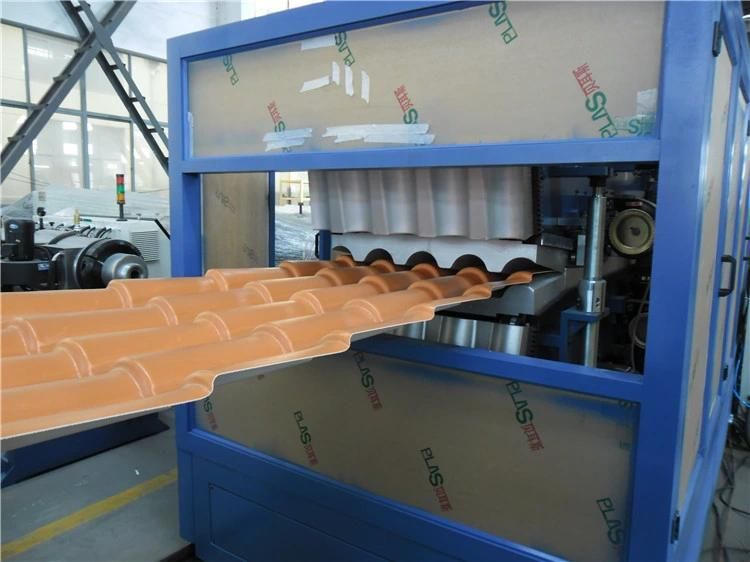

1.8) Roof forming unit	ZSW-900
1.9)Cutting unit	QG-1000
1.10)Stacker	LJ-6000

Ridge roof forming machine(Optional)
1.1)Flat sheet haul-off unit
1.2)Oven
1.3)Ridge tile forming unit
1.4)ridge tile mold (4sets)
Summarization

Materials	PVC,ASA with different colors and some additives
Products width	880mm
Products thickness	1-4mm
Center meter	1100mm
Products color	decide by customer
Output	250-400kg/hr ;1000m2 per 24 hours
Line speed	0.3-2M/min
Operation direction	from right to left
